HtmlChart Nested in RadGrid

3 posts, 0 answers
  1. Ron
    Ron avatar
    86 posts
    Member since:
    Sep 2009

    Posted 12 Jul 2012 Link to this post

    Hello again,

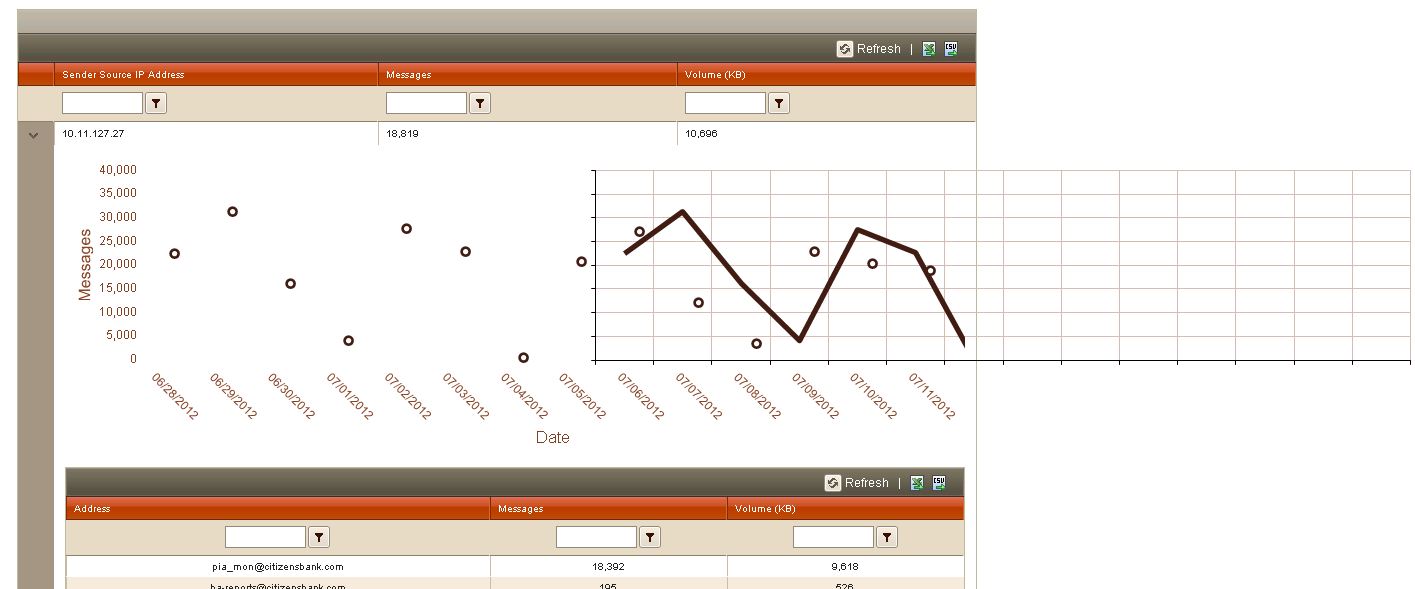

    I have come across a strange rendering issue with the HtmlChart as you can see in the screenshot attached.  The chart is nested in a radgrid and populates the data just fine.  The axis for both y and x along with the points in the line series all render correctly with no issue.  But the actual grid and the line itself of the chart render way off to the right for some reason.  This seems to happen in all versions of IE from 6 thru 9.

    Any help would of course be appreciated.

    Following is the markup for the radgrid on the page:

    <telerik:RadGrid ID="ReportsDataGrid" runat="server"
        <GroupingSettings CaseSensitive="false" />
        <MasterTableView DataSourceID="ReportsDataSource" DataKeyNames="SenderAddress,SourceIP"
        GroupLoadMode="Server" CommandItemDisplay="Top">
                <telerik:GridBoundColumn DataField="SenderAddress" HeaderText="Sender Email Address" />
                <telerik:GridBoundColumn DataField="SourceIP" HeaderText="Sender Source IP Address" />
                <telerik:GridBoundColumn DataField="Messages" HeaderText="Messages" DataFormatString="{0:N0}" />
                <telerik:GridBoundColumn DataField="Volume" HeaderText="Volume (KB)" DataFormatString="{0:N0}" />
                <asp:Panel runat="server" ID="InnerContainer" Visible="false">
                    <div class="nestedchartcontentpane" style="position:relative">
                        <asp:Label ID="SelectedRecordEmail" runat="server" Text='<%# Eval("SenderAddress") %>' Visible="false" />
                        <asp:Label ID="SelectedRecordIP" runat="server" Text='<%# Eval("SourceIP") %>' Visible="false" />
                        <telerik:RadHtmlChart runat="server" ID="ReportsDataChart" Width="900" Height="300"
                            Transitions="true" DataSourceID="ReportsNestedDataSource"  >
                                <Appearance Visible="false" />
                                <XAxis MajorTickType="Outside" MinorTickType="None" DataLabelsField="Date">
                                    <LabelsAppearance DataFormatString="{0}" RotationAngle="45" />
                                    <TitleAppearance Visible="true" Text="Date" />
                                    <MinorGridLines Visible="false" />
                                <YAxis MajorTickType="Outside" MinorTickType="None">
                                    <LabelsAppearance DataFormatString="{0:N0}" RotationAngle="0" />
                                    <TitleAppearance Visible="true" Text="Messages" />
                                    <MinorGridLines Visible="false" />
                                    <telerik:LineSeries Name="Messages" MissingValues="Gap" DataField="Messages">
                                        <LabelsAppearance Visible="false" />
                                        <TooltipsAppearance DataFormatString="{0:N0}" />
                        <asp:SqlDataSource ID="ReportsNestedDataSource" runat="server"
                            ConnectionString="<%$ ConnectionStrings:asp_statistics %>"
                                <asp:ControlParameter ControlID="ReportsSelectedDate" Name="date"
                                    PropertyName="SelectedDate" Type="DateTime" />
                                <asp:ControlParameter ControlID="ReportsOn" Name="type"
                                    PropertyName="SelectedValue" Type="String" />
                                <asp:ControlParameter ControlID="ReportsDataUnit" Name="unit"
                                    PropertyName="SelectedValue" Type="String" />
                                <asp:ControlParameter ControlID="SelectedRecordEmail" Name="address"
                                    PropertyName="Text" Type="String" />
                                <asp:ControlParameter ControlID="SelectedRecordIP" Name="sourceip"
                                    PropertyName="Text" Type="String" />
  2. Ron
    Ron avatar
    86 posts
    Member since:
    Sep 2009

    Posted 13 Jul 2012 Link to this post

    Sorry, looks like I forgot to add the image attachment, here it is.
