how to use RadDataForm?

[Xiaoming]

Introduction has nothing about dataform,how to use RadDataForm?

[Xiaoming]

I'm sorry but I checked the example and there are no related example about the new data form controls, any ideas?

[Victor]

Hi Xiaoming,

Thanks for writing.
Please note that RadDataForm is still in a beta state and some features are not yet enabled/complete.

Here is the simplest way to use RadDataForm:

RadDataForm form = new RadDataForm(context);
form.setEntity(new Person());

form.setCommitMode(CommitMode.MANUAL);

layoutRoot.addView(form);

Create a data form object, set an entity for edit, specify commit mode (optional) and add the form to the android layout.

The online help for the data form is ready and will uploaded shortly.

Regards,
Victor
Telerik

[Jimmy]

Hi Victor,

   I tried one simple example on RadDataForm like below


                RadDataForm dataForm = new RadDataForm(this);
                dataForm.Entity = new ​Product();
    It is throwing an error stating "Error5Cannot implicitly convert type 'TelerikListView.​Product' to 'Com.Telerik.Widget.Dataform.Engine.IEntity'. An explicit conversion exists (are you missing a cast?)



After that i tried this

dataForm.Entity = (Com.Telerik.Widget.Dataform.Engine.IEntity)new Product();

it is throwing an exception

"Cannot cast from source type to destination type."

please rectify this.

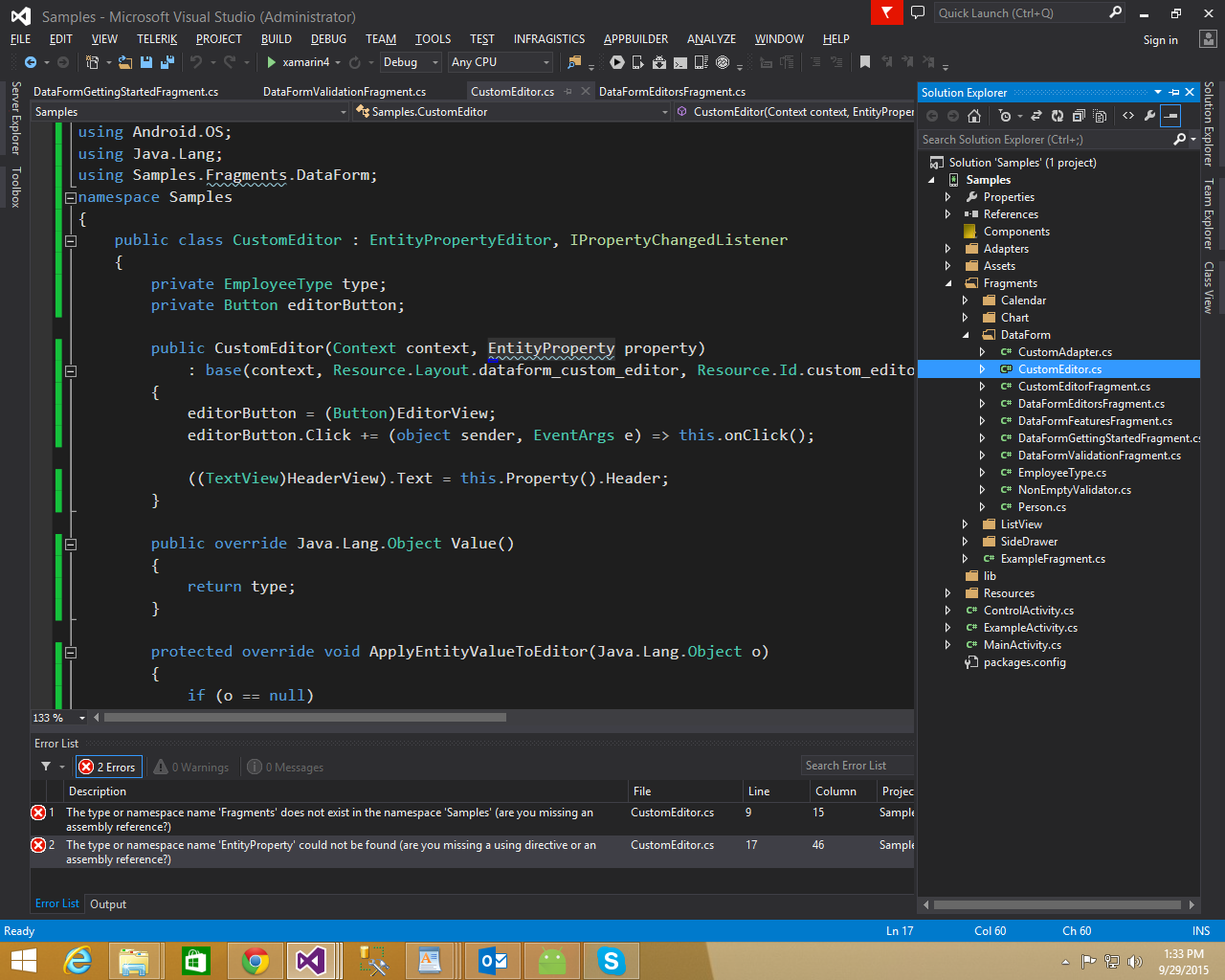

And also i downloaded UI for Xamarin and i added an samples solution which was given by telerik to my solution explorer and i executed it is throwing an error

Error2The type or namespace name 'EntityProperty' could not be found (are you missing a using directive or an assembly reference?)C:\Program Files (x86)\Telerik\UI for Xamarin Q2 2015\Examples\Android\Fragments\DataForm\CustomEditor.cs1746Samples

​

  ​

[Victor]

Hello Sylendra,

Thank you for writing.
Currently there is a problem with the Xamarin wrappers for RadDataForm. Since RadDataForm uses the Java reflection to generate its editors for the provided object, it fails to render under Xamarin because the Java reflection does not work there. There are two classes that need to be rewritten to use the C# reflection instead and we have plans to provide those for the Q3 2015 Service Pack release. The service pack is scheduled for next month.

Meanwhile if you have questions about the native RadDataForm for Android, we're ready to assist you.

Regards,
Victor
Telerik
