How to stretch content within DataForm

9 posts, 0 answers
  1. Vasile
    Vasile avatar
    33 posts
    Member since:
    Dec 2010

    Posted 22 Mar 2011 Link to this post

    Hello,

    Just installed the last version (Q1, 2011) of Telerik Silverlight controls, and tried Telerik DataForm control by replacing the standard DataForm control in one of my the projects.

    I observed two wrong behaviors so far:

    1. I found no way, at least not obvious way, of stretching vertically the content within the DataForm. In my application I host the DataForm into a resizable RadPanel, inside the DataForm I have a multiline text field which is anchored on all edges, so it is supposed to resize when the DataForm resizes to benefit by the whole surface of the DataForm (this worked with standad DataForm control).
    I set on RadDataForm the VerticalAlign and VerticalContentAlight to Stretch
    I set also the VerticalAlign="Stretch" for the control inside the DataForm

    Please let me know if there is a way to achive desired behavior.

    2 A second observation I have is that if I do not specify a Foreground color for the RadDataForm the labels inside various templates would be displayed with White foreground over White background.  I don't use any special theme... just plain controls with their default style.

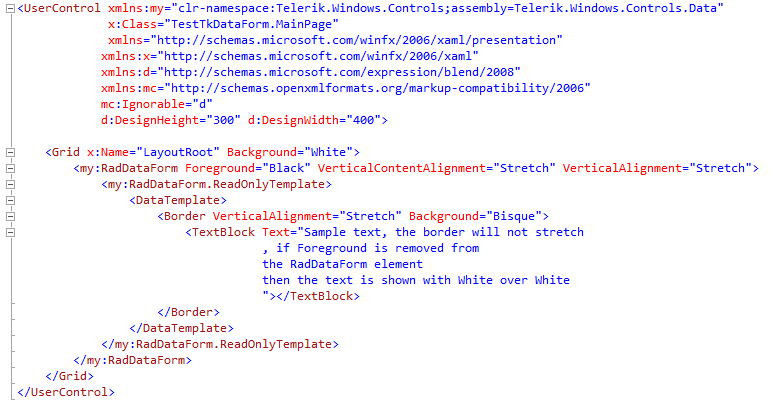

    This can be reproduced with very simple code in brand new project

    Vasile
  2. Vanya Pavlova
    Admin
    Vanya Pavlova avatar
    2019 posts

    Posted 23 Mar 2011 Link to this post

    Hi Vasile,


    Thank you for your interest in our bran new RadDataForm control. Please find my answers in the following order:

    1.The template of our RadDataForm is a little bit different that the one that the native DataForm uses. By desing the presenters used to display fields in RadDataForm are wrapped in a ScrollViewer/StackPanel. As a result its children are measured with infinity. You may override it by editing the template of RadDataForm and just remove the ScrollViewer/StackPanel. Please refer to the attached project.

    2. We have had a similar issue, which was already fixed and is part of our latest internal build.


    Greetings,
    Vanya Pavlova
    the Telerik team
  3. DevCraft banner
  4. Leos
    Leos avatar
    57 posts
    Member since:
    Jul 2010

    Posted 03 Apr 2011 Link to this post

    I have similar problem.
    Code from XAML is here, VerticalAlignment is set to TOP and VerticalContentAlignment is set to STRECH:
    <DataTemplate x:Key="detail">
      <StackPanel Orientation="Vertical">
        <telerik:DataFormDataField Label="Zalozeno:"
              DataMemberBinding="{Binding Zalozeno, Mode=TwoWay}"
              Description="Datum vlozeni zaznamu do evidence"/>
         <telerik:DataFormDataField Label="Popis:"
              Height="100"
              Background="AntiqueWhite"
              VerticalAlignment="Top"
              VerticalContentAlignment="Stretch"
              DataMemberBinding="{Binding Popis, Mode=TwoWay}"
              Description="Textova informace, popis zbozi"/>
        <telerik:DataFormCheckBoxField Label="Platne:"
             DataMemberBinding="{Binding IndPlt, Mode=TwoWay}"
             Description="Priznak platnosti zaznamu"/>
      </StackPanel>
    </DataTemplate>

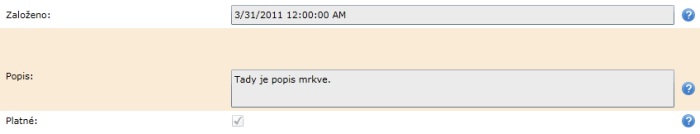

    See attached image.
    Field "Popis" (Note, Comment) is not stretched. I looks as if Label is vertically centered a content is computed from Label vertical position.

    Thank you very much.
    Leos
  5. Leos
    Leos avatar
    57 posts
    Member since:
    Jul 2010

    Posted 03 Apr 2011 Link to this post

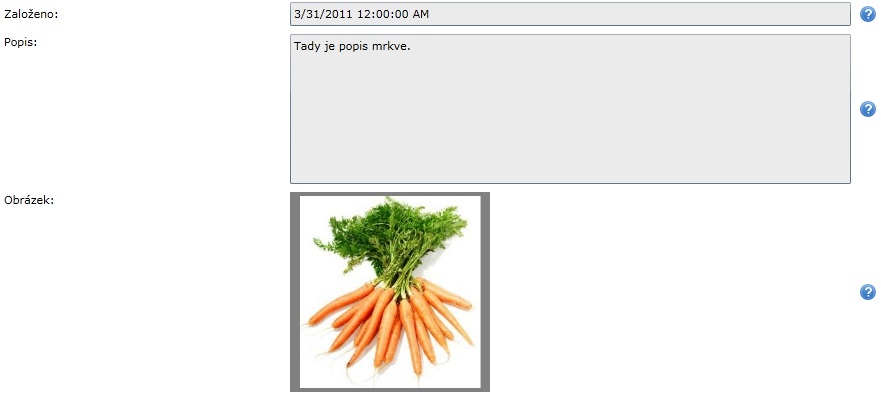

    It works, if content (standard TextBox) is inserted into DataFormDataField.Content.
    Leos

    <telerik:DataFormDataField Label="Popis:"
        VerticalAlignment="Top"
        VerticalContentAlignment="Stretch"
        DataMemberBinding="{Binding Popis, Mode=TwoWay}"
        Description="Textova informace, popis zbozi">
        <telerik:DataFormDataField.Content>
             <TextBox Text="{Binding Popis, Mode=TwoWay}"
                 Height="150"
                 IsReadOnly="True"
                VerticalScrollBarVisibility="Auto"
                HorizontalScrollBarVisibility="Auto"
                AcceptsReturn="True"  />
       </telerik:DataFormDataField.Content>
    </telerik:DataFormDataField>

  6. Vanya Pavlova
    Admin
    Vanya Pavlova avatar
    2019 posts

    Posted 04 Apr 2011 Link to this post

    Hi Vasile,




    We are glad to here that you were able to find a solution by your side. You may always edit the template of any RadDataForm's part and change it in appropriate manner. I believe that it would be helpful for you to review the "Styles And Templates" online help documentation for this control.


    I you have any additional information please let us know.


    Kind regards,
    Vanya Pavlova
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  7. Mike
    Mike avatar
    3 posts
    Member since:
    Sep 2011

    Posted 15 Oct 2012 Link to this post

    Vanya says:

    "
    1.The template of our RadDataForm is a little bit different that the one that the native DataForm uses. By desing the presenters used to display fields in RadDataForm are wrapped in a ScrollViewer/StackPanel. As a result its children are measured with infinity. You may override it by editing the template of RadDataForm and just remove the ScrollViewer/StackPanel. Please refer to the attached project.
    "

    The project attached to the referenced post above does not appear to provide a solution to the problem.  Can you go into more detail as to how you can accomplish removing the ScrollViewer/StackPanel?  And/or getting the RadDataForm content to stretch and fill vertically?

    Thank you.
  8. Mike
    Mike avatar
    3 posts
    Member since:
    Sep 2011

    Posted 15 Oct 2012 Link to this post

    I believe I have discovered my mistake.  I was not correctly setting the control template.
  9. Murali
    Murali avatar
    8 posts
    Member since:
    May 2013

    Posted 14 Feb 2015 in reply to Leos Link to this post

    Leos, thanks for posting the solution.  This helped me today, and probably saved good deal of time, I would not have intuitively figured this out anytime soon if I did not see this post.  Nearly two years in to the future, and this still helped.
  10. Murali
    Murali avatar
    8 posts
    Member since:
    May 2013

    Posted 14 Feb 2015 in reply to Murali Link to this post


    Meh, I spoke too soon.  Apparently, I didn't test enough with resizable dataform with grid splitter - be aware, it gets tricky to manage the aesthetics of the view.  I found a work around that makes this work sufficiently for my scenario, but with a constraint that you must set minwidth.  All the complication boiled down to the way this control is setup - StackPanel in scrollviewer is quite a rowdy in layouts.  Solution I ended up with is:

    1. Use Grid as root element for the data template, set MaxWidth={Binding RelativeSource={RelativeSource AncestorType=Border}, Path=ActualWidth}" MinWidth="330"  [use desired MinWidth to suite your UI]
    2. Use Leos's solution of setting Content of the DataFormDataField.

    <Grid MaxWidth="{Binding RelativeSource={RelativeSource AncestorType=Border}, Path=ActualWidth}" MinWidth="330">
        <telerik:DataFormDataField Label="Description" LabelPosition="Above" IsEnabled="{Binding IsEditing}">
            <telerik:DataFormDataField.Content>
                <TextBox Margin="0 8 0 0" MinHeight="40" Text="{Binding Description}" TextWrapping="Wrap" AcceptsReturn="True"  VerticalAlignment="Stretch" IsEnabled="{Binding IsEditing}" />
            </telerik:DataFormDataField.Content>
        </telerik:DataFormDataField>
    </Grid>
