How to set Telerik Reporting Graph x-axis label interval

2 posts, 0 answers
  1. Jans
    Jans avatar
    3 posts
    Member since:
    Jun 2014

    Posted 18 Mar Link to this post

    Is there an easy way to set the x-axis label interval in Telerik Reporting graph?

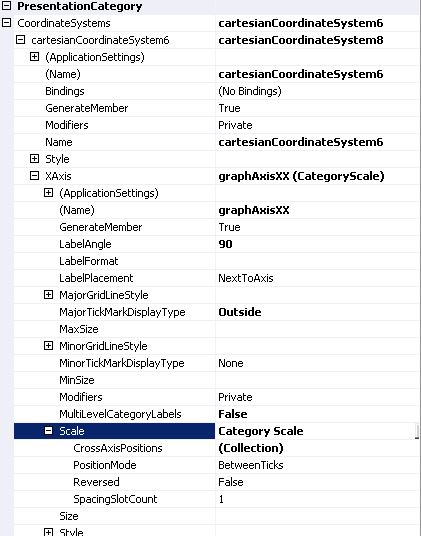

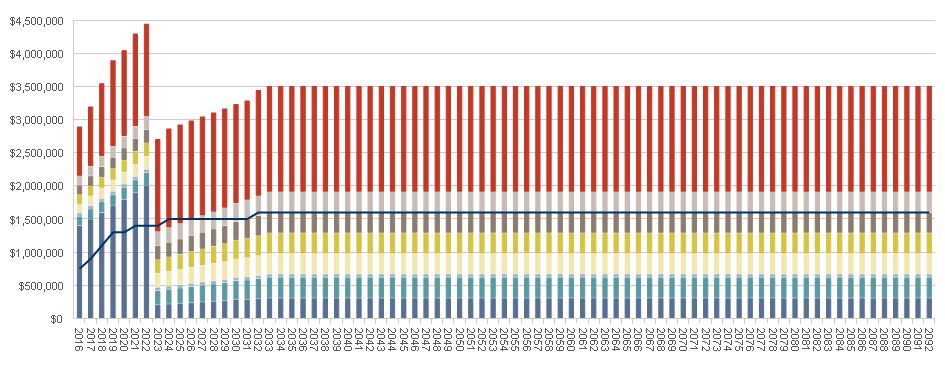

    See attached images for the graph properties and sample graph in the Visual Studio 2013.

    I want to set the x-axis label interval to display every 5 years as shown on the attached sample graph.

    Thanks



  2. Katia
    Admin
    Katia avatar
    299 posts

    Posted 23 Mar Link to this post

    Hello Jans,

    You can set the Scale -> LabelStep property for Numerical and DateTime Scale.

    Based on the attached screenshots, we can suggest that you are using Category Scale. In this case, LabelStep property is not present as the labels for Category Scale are represented as strings.

    Our suggestion is to switch to DateTime Scale - check How to change the axis scale to DateTime help article for more details.

    You also manipulate such XAxis properties as BaseUnit, DataPointTicks, MinorStep/MajorStep, LabelUnit to achieve the desired visualization - Formatting a Graph/Axis.


    Regards,
    Katia
