    hi,

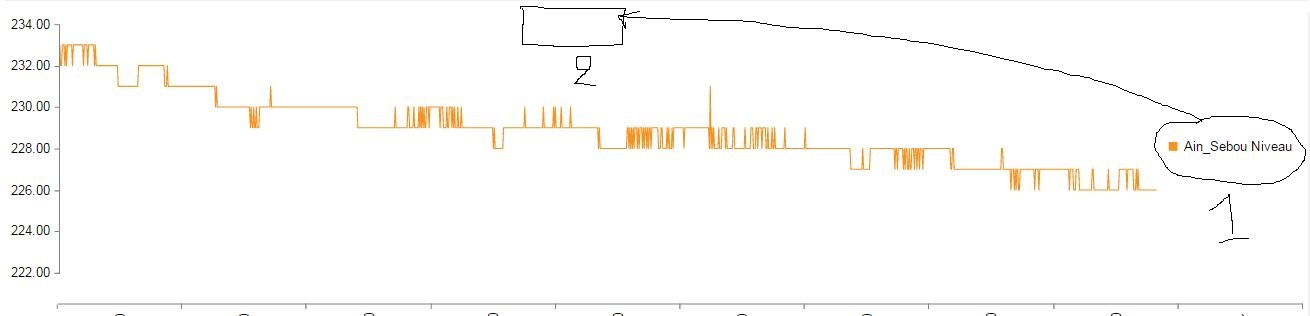

    i want to replace name of serie from the 1st to the 2ed palce cheek the pic to understading

    plz help me

  2. Answer
    Vessy
    Admin
    Vessy avatar
    1380 posts

    Posted 30 Apr 2015 Link to this post

    Hi Essoufi,

    The name displayed in position 1 is the Legend of the Chart series. You can control its position by configuring the HtmlChart's Legend Appearance :
    <telerik:RadHtmlChart runat="server" ID="RadHtmlChart1" Width="800" Height="500">
        <Legend>
            <Appearance Position="Top" />
        </Legend>
        ...
    </telerik:RadHtmlChart>

    You can find detailed information on the other available for configuration Legend related properties here: http://www.telerik.com/help/aspnet-ajax/htmlchart-server-side-api-basic-configuration.html#sectionSectionID0EFAAA

    Regards,
    Vessy
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. EssMus
    EssMus avatar
    18 posts
    Member since:
    Jan 2015

    Posted 30 Apr 2015 in reply to Vessy Link to this post

    thank you Vessy
