How to manage width of chart bars?

3 posts, 2 answers
  1. M STOLYAR
    M STOLYAR avatar
    12 posts
    Member since:
    Dec 2010

    Posted 21 Jul 2011 Link to this post

    Hello.
    I'm using RadChart with BarSeriesDefinition(or StackedBarSeriesDefinition).
    I'm adding 10 data points on chart and observe 10 "quite thin" bars, it looks good.
    If I'm adding only 1 data point, I observe 1 "thick" bar and it looks not good. I'd like to get 1 "quite thin" bar at the center of chart.

    I've looked for some MinimalWidth property in the list of properties of BarSeriesDefinition, but didn't find one.

    How can I set MinimalWidth for bar that added to chart?
    Or maybe I can define "number of bars" that is used by RadChart control to calculate final width of bars depending on the availaible space? For example, I setting "number of bars" to 10, adding 2 data points and getting 2 "quite thin" bars at the center of chart.
    Is there some way to manage width of chart bars?

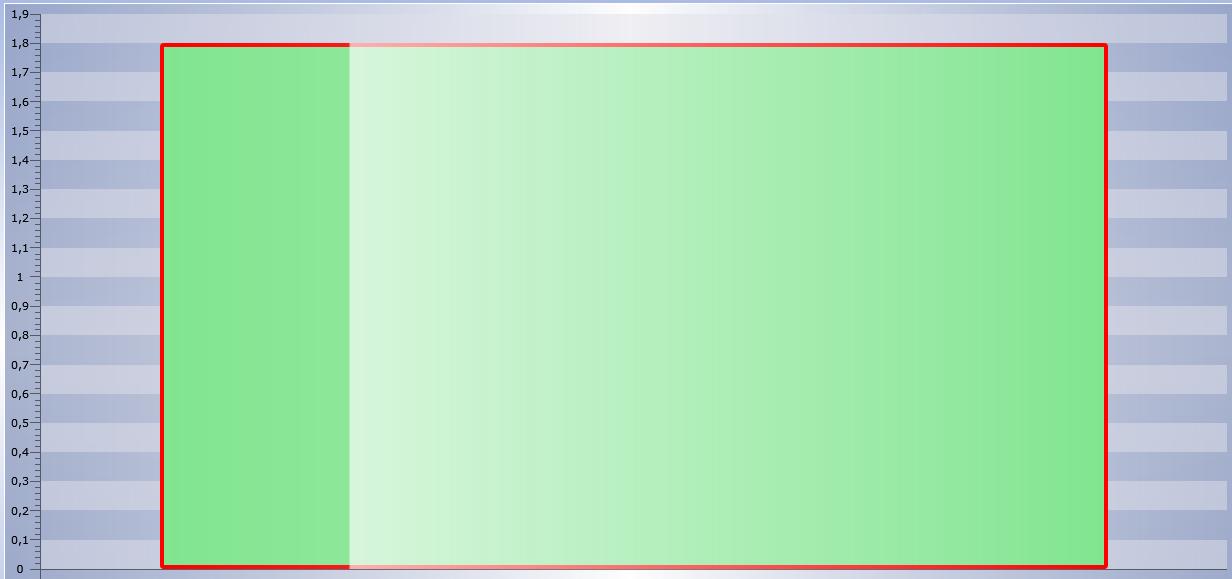

    Now, if added only 1 data point the chart look like 1.jpg;

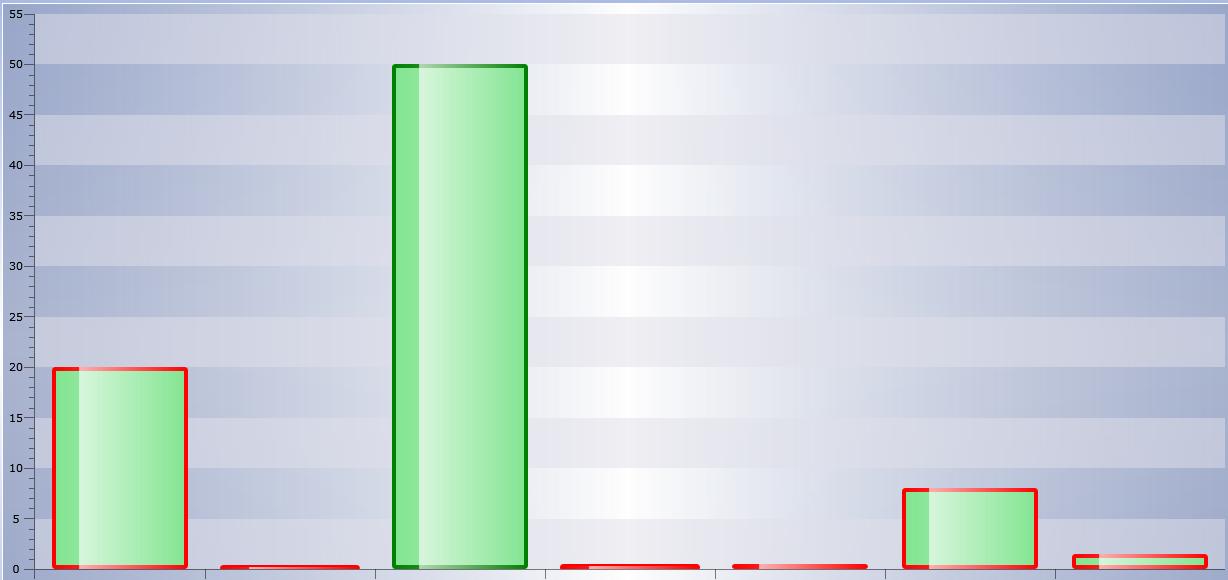

    If added 7 data points the chart look like 2.jpg;
    I'd like to get something like 3.jpg, if added 3 data points.

    Regards.
  2. Answer
    Rahul
    Rahul avatar
    116 posts
    Member since:
    Feb 2011

    Posted 24 Jul 2011 Link to this post

    Only one line of code is there.

    radChart1.DefaultView.ChartArea.ItemWidthPercent = 40;
  3. DevCraft banner
  4. Answer
    Nikolay
    Admin
    Nikolay avatar
    385 posts

    Posted 26 Jul 2011 Link to this post

    Hello,

    As already mentioned the ItemWidthPercent property is a sufficient way to alter the width of the bars. You can find more information on the subject in this help topic.

    Regards,
    Nikolay
    the Telerik team
