How to make scrollbar appear in RadPaneGroup

2 posts, 0 answers
  1. Unisense
    Unisense avatar
    34 posts
    Member since:
    Sep 2012

    Posted 06 Feb 2014 Link to this post

    Hi,

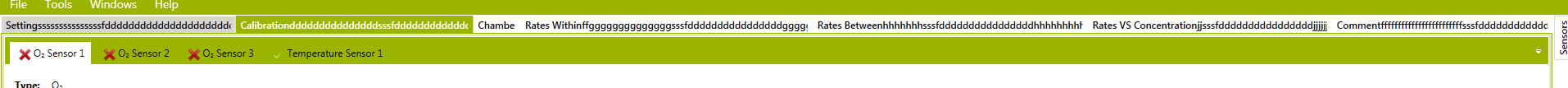

    I am having trouble with the RadPaneGroup. When the panegroup is filled with panes no scroll buttons appear(see image).

    I have given each pane a very long name so they fill everything, see my XAML below:
    <telerik:RadDocking.DocumentHost>
        <telerik:RadSplitContainer >
            <telerik:RadPaneGroup Name="hostPaneGroup" OverflowMode="Scroll">
                <telerik:RadPane Name="instrumentsPane" Title="Settingsssssssssssssssfdddddddddddddddddddddddddddddds" telerik:RadDocking.SerializationTag="instrumentsPane" CanUserClose="False" ContextMenuTemplate="{x:Null}"/>
                <telerik:RadPane Name="calibrationPane" Title="Calibrationddddddddddddddddddddd" telerik:RadDocking.SerializationTag="calibrationPane" CanUserClose="False" ContextMenuTemplate="{x:Null}"/>
                <telerik:RadPane Name="commentsPane" Title="Commentffffffffffffffffffffffffffffffff" telerik:RadDocking.SerializationTag="commentsPane" CanUserClose="False"  ContextMenuTemplate="{x:Null}"/>
                <telerik:RadPane Name="ratesWithinPane" Title="Rates Withinffgggggggggggggggggggggggggggggg" telerik:RadDocking.SerializationTag="ratesWithinPane" CanUserClose="False" ContextMenuTemplate="{x:Null}"/>
                <telerik:RadPane Name="ratesWithinBetween" Title="Rates Betweenhhhhhhhhhhhhhhhhhhhhhhhhhhh" telerik:RadDocking.SerializationTag="ratesBetweenPane" CanUserClose="False" ContextMenuTemplate="{x:Null}"/>
                <telerik:RadPane Name="ratesVSConcentration" Title="Rates VS Concentrationjjjjjjjjjjjjjjjjjjjjjjjjjjjjjj" telerik:RadDocking.SerializationTag="rateVSConcentrationPane" CanUserClose="False" ContextMenuTemplate="{x:Null}"/>
            </telerik:RadPaneGroup>
        </telerik:RadSplitContainer>
    </telerik:RadDocking.DocumentHost>

    I have set the OverflowMode="Scroll" and i have also tried different scroll modes using the property ScrollMode(Item, Pixel, ViewPort).

    I dont understand why the scrolling functionality doesnt show. Have i done something wrong or am i missing something? :)

    Best Regards,
    Jeppe
  2. Unisense
    Unisense avatar
    34 posts
    Member since:
    Sep 2012

    Posted 07 Feb 2014 in reply to Unisense Link to this post

    Hi,

    I have found a solution to the problem.
    If anyone has the same problem the solution was to set the property ScrollViewer.HorizontalScrollBarVisibility to Auto.

    Best Regards,
    Jeppe
