How to increase the resource title width for Timeline Grouping scheduler

4 posts, 0 answers
  1. Kalpen
    Kalpen avatar
    4 posts
    Member since:
    Jul 2012

    Posted 26 Feb 2013 Link to this post

    Hello,

    I am using the Timeline Grouping Scheduler. I am facing an issue with the Resource title width.

    It was showing the title vertically. But I have changed it to show horizontally.

    Now the problem is with the width. It does not display complete text.

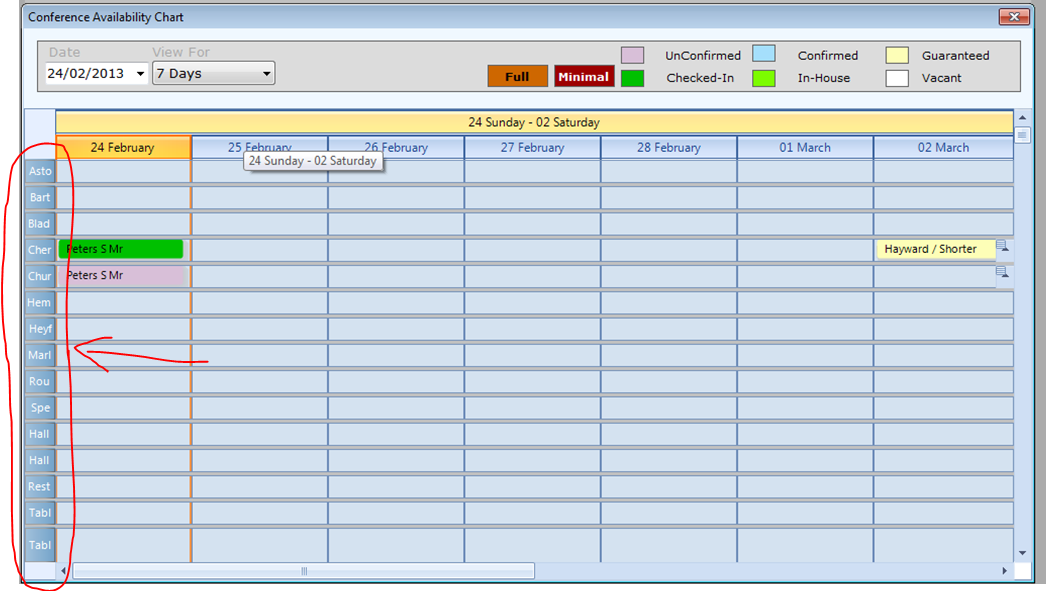

    I have attached a screenshot for this.

    Can anyone please tell me how to increase the resource(row) header width.

    Thanks!
    Kalpen Patel
  2. Svett
    Admin
    Svett avatar
    728 posts

    Posted 28 Feb 2013 Link to this post

    Hello Kalpen,

    Thank you for writing,

    You should use the following code snippet to achieve that:
    this.radScheduler1.GroupType = GroupType.Resource;
    this.radScheduler1.ActiveViewType = SchedulerViewType.Timeline;
    TimelineGroupingByResourcesElement element = this.radScheduler1.SchedulerElement.FindDescendant<TimelineGroupingByResourcesElement>();
    element.ResourceHeaderWidth = 100;

    I hope this helps.

    Kind regards,
    Svett
    the Telerik team
    WinForms Q1 2013 boasts PivotGrid, PDF Viewer, Chart enhancements and more. Join us for a FREE webinar to see all the new stuff in action.

    Interested, but can’t attend? Register anyway and we’ll send you the recording.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Kalpen
    Kalpen avatar
    4 posts
    Member since:
    Jul 2012

    Posted 07 Mar 2013 Link to this post

    Thanks Svett. Thats what I was looking for.

    I have one more question.

    When the number of resources are increasing, form takes measurable time to load.

    e.g. if I have 35 resources then it is taking 7-8 seconds for loading. Whereas it is taking 1/2 seconds for 25 resources. I am fetching data from dataview.

    I checked many blogs and it is showing me that it is know issue with Timeline Grouping.

    Thanks a lot!
  5. Svett
    Admin
    Svett avatar
    728 posts

    Posted 11 Mar 2013 Link to this post

    Hello Kalpen,

    I did not manage to reproduce the issue with the supplied information. Could you share a code snippets that demonstrate how you initialize and load the
    RadScheduler control?

    All the best,
    Svett
    the Telerik team
