How to hide group header (bottom level)

4 posts, 0 answers
  1. Cheau-Long
    Cheau-Long avatar
    27 posts
    Member since:
    Jan 2011

    Posted 19 Aug 2011 Link to this post

    Hi Telerik:

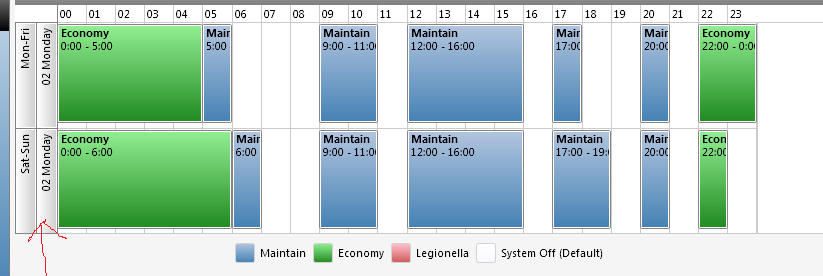

    How can I hide the entire group header column (the bottom level only) as pointed in the screenshot below? I have attached xaml for your reference.

    Thanks,
    Cheau





            <!-- ScheduleView -->

            <telerik:RadScheduleView x:Name="scheduleView"

                                    Grid.Row="2"

                                    MaxTimeRulerExtent="500"

                                    AppointmentsSource="{Binding Tasks, Mode=TwoWay}"

                                    ResourceTypesSource="{Binding ScheduleOptionList, Mode=TwoWay}"

                                    GroupDescriptionsSource="{Binding GroupCollection, Mode=TwoWay}"

                                    CurrentDate="{Binding DefaultDate}"

                                    NavigationHeaderVisibility="Collapsed"

                                    AllowDrop="True"

                                    SnapAppointments="True"

                                    MinAppointmentWidth="22"

                                    Height="Auto">



                <telerik:RadScheduleView.DragDropBehavior>

                    <local:ScheduleDragDropBehavior/>

                </telerik:RadScheduleView.DragDropBehavior>



                <telerik:RadScheduleView.AppointmentItemContentTemplate>

                    <DataTemplate>

                        <StackPanel>

                            <TextBlock Text="{Binding Subject}"  FontWeight="Bold"/>

                            <StackPanel Orientation="Horizontal">

                                <TextBlock Text="{Binding Start, StringFormat={}{0:H:mm}}"/>

                                <TextBlock Text=" - "/>

                                <TextBlock Text="{Binding End, StringFormat={}{0:H:mm}}"/>

                            </StackPanel>

                        </StackPanel>

                    </DataTemplate>

                </telerik:RadScheduleView.AppointmentItemContentTemplate>



                <telerik:RadScheduleView.ActiveViewDefinition>

                    <telerik:DayViewDefinition Orientation="Horizontal" FirstDayOfWeek="Monday" TimerulerMajorTickStringFormat="{}{0:HH}"

                                                MinorTickLength="1h"  MajorTickLength="1h" MinTimeRulerExtent="700" GroupHeaderDateStringFormat="{}{0:MM/dd}" />



                </telerik:RadScheduleView.ActiveViewDefinition>



            </telerik:RadScheduleView>



  2. Yana
    Admin
    Yana avatar
    4554 posts

    Posted 26 Aug 2011 Link to this post

    Hi Cheau-Long,

    I would suggest to use GroupHeaderStyleSelector and set Visibility prpoperty to VerticalBottomLevelGroupHeaderStyle and VerticalBottomLevelTodayGroupHeaderStyle like this:

    <Style x:Key="VerticalBottomLevelGroupHeaderStyle" TargetType="local:GroupHeader">
        <Style.BasedOn>
        <Style TargetType="telerik:GroupHeader">
            <Setter Property="Visibility" Value="Collapsed"/>
            <Setter Property="Height" Value="0" />
        </Style>
        </Style.BasedOn>
    </Style>
    <Style x:Key="VerticalBottomLevelTodayGroupHeaderStyle" TargetType="local:GroupHeader">
        <Style.BasedOn>
            <Style TargetType="telerik:GroupHeader">
                <Setter Property="Visibility" Value="Collapsed"/>
                <Setter Property="Height" Value="0" />
            </Style>
        </Style.BasedOn>
    </Style>

    Please check this help article for more details.

    Best wishes,
    Yana
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  3. UI for WPF is Visual Studio 2017 Ready
  4. Andrei
    Andrei avatar
    3 posts
    Member since:
    Mar 2012

    Posted 23 Mar 2012 Link to this post

    Hello,

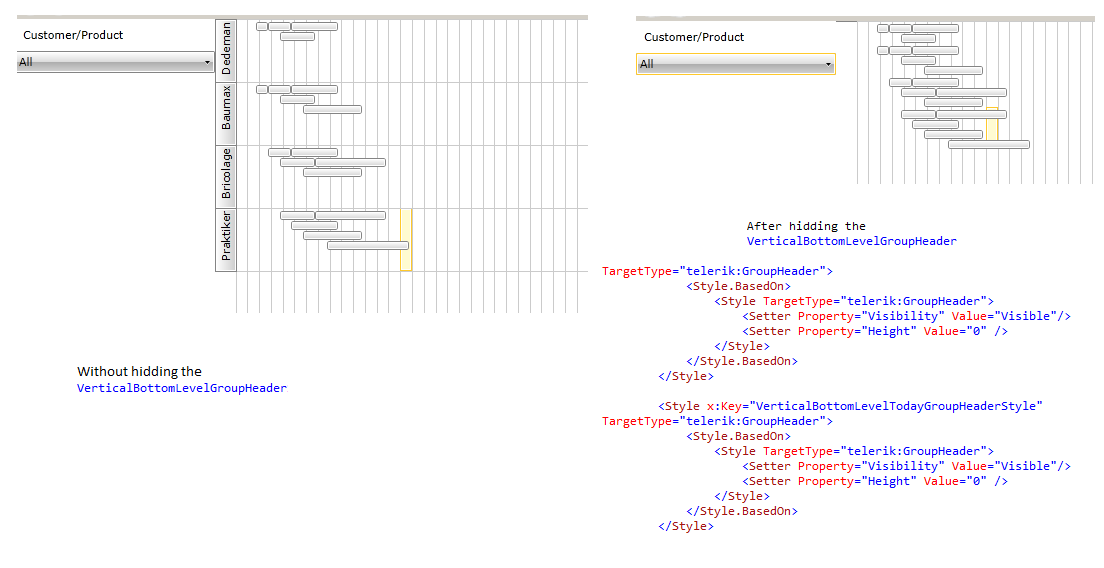

        I needed to do the same thing ( hide the vertical headers ) but setting visibility to Collapsed hiddes indeed the VerticalBottomGroupHeader but it removes also the lines(borders) of/between each headers ( please see attached image ).
        How can I avoid this? To hide the VerticalBottomGroupHeader but keep the groupHeaders line(borders).

    Kindly regards,
    Andrei
    <UserControl x:Class="TimeBar.MainPage"
            xmlns:scheduleView="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.ScheduleView"
            xmlns:local="clr-namespace:TimeBar"
            xmlns:telerikQuickStart="clr-namespace:Telerik.Windows.Controls.QuickStart;assembly=Telerik.Windows.Controls"
            xmlns:qsf="clr-namespace:Telerik.Windows.Controls.QuickStart;assembly=Telerik.Windows.Controls"
            xmlns:example="clr-namespace:TimeBar" mc:Ignorable="d" d:DesignWidth="600"
            d:DesignHeight="400">

        <UserControl.Resources>
            <example:ViewModel  x:Key="ViewModel" />
            <Style x:Key="VerticalBottomLevelGroupHeaderStyle" TargetType="telerik:GroupHeader">
                <Style.BasedOn>
                    <Style TargetType="telerik:GroupHeader">
                        <Setter Property="Visibility" Value="Visible"/>
                        <Setter Property="Height" Value="0" />
                    </Style>
                </Style.BasedOn>
            </Style>

            <Style x:Key="VerticalBottomLevelTodayGroupHeaderStyle" TargetType="telerik:GroupHeader">
                <Style.BasedOn>
                    <Style TargetType="telerik:GroupHeader">
                        <Setter Property="Visibility" Value="Visible"/>
                        <Setter Property="Height" Value="0" />
                    </Style>
                </Style.BasedOn>
            </Style>

            <telerik:OrientedGroupHeaderStyleSelector x:Key="GroupHeaderStyleSelector"
                VerticalBottomLevelStyle="{StaticResource VerticalBottomLevelGroupHeaderStyle}"
                VerticalTodayBottomLevelStyle="{StaticResource VerticalBottomLevelTodayGroupHeaderStyle}">
            </telerik:OrientedGroupHeaderStyleSelector>

        </UserControl.Resources>

        <telerikQuickStart:QuickStart.ExampleHeader>
            <TextBlock Text="Appointments filtering" Margin="8" />
        </telerikQuickStart:QuickStart.ExampleHeader>

        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="200"/>
                <ColumnDefinition Width="*"/>
            </Grid.ColumnDefinitions>

            <StackPanel Orientation="Vertical" DataContext="{StaticResource ViewModel}" Grid.Column="0">
                <TextBlock Text="Customer/Product " Margin="8" />
                <telerik:RadComboBox ItemsSource="{Binding ResourcesCustomerPromotions}"
                                         SelectedItem="{Binding SelectedCustomerPromotion, Mode=TwoWay}"
                                     SelectionChanged="RadComboBox_SelectionChanged"
                                         EmptyText="All"
                                         ClearSelectionButtonVisibility="Visible"
                                         ClearSelectionButtonContent="Show all" />
            </StackPanel>

            <telerik:RadScheduleView x:Name="MainSchedule" Grid.Column="1"
                                     DataContext="{StaticResource ViewModel}"
                                     AppointmentsSource="{Binding SelectedAppointments}"
                                     ResourceTypesSource="{Binding ResourceTypes}"
                                     MinAppointmentHeight="10"
                                     NavigationHeaderVisibility="Collapsed"
                                     GroupHeaderStyleSelector="{StaticResource GroupHeaderStyleSelector}">

                    <telerik:RadScheduleView.GroupDescriptionsSource>
                        <telerik:GroupDescriptionCollection>
                            <scheduleView:DateGroupDescription />
                            <scheduleView:ResourceGroupDescription ResourceType="CustomerPromotion" />
                        </telerik:GroupDescriptionCollection>
                    </telerik:RadScheduleView.GroupDescriptionsSource>

                <telerik:RadScheduleView.ActiveViewDefinition >
                    <telerik:TimelineViewDefinition MinTimeRulerExtent="1" MaxTimeRulerExtent="Infinity" ShowTimeRuler="False"
                                StretchAppointments="False" StretchGroupHeaders="False" VisibleDays="90"  MajorTickLength="1day"
                                GroupTickLength="1day" TimerulerMajorTickStringFormat="{}{0:d}" MinorTickLength="1day">
                    </telerik:TimelineViewDefinition>
                </telerik:RadScheduleView.ActiveViewDefinition>

                <scheduleView:RadScheduleView.ViewDefinitions>
                    <telerik:TimelineViewDefinition  MinTimeRulerExtent="16800"
                        MaxTimeRulerExtent="Infinity"
                        VisibleDays="150"
                        StretchAppointments="False"
                        StretchGroupHeaders="False"
                        MinorTickLength="1day"
                        MajorTickLength="1day">
                        <telerik:TimelineViewDefinition.GroupTickLength>
                            <local:OneWeekTick/>
                        </telerik:TimelineViewDefinition.GroupTickLength>
                    </telerik:TimelineViewDefinition>
                </scheduleView:RadScheduleView.ViewDefinitions>

            </telerik:RadScheduleView>
        </Grid>
    </UserControl>
  5. Yana
    Admin
    Yana avatar
    4554 posts

    Posted 28 Mar 2012 Link to this post

    Hello Andrei,

    In this case you should set GroupHeaderContentTemplateSelector instead of GroupHeaderStyleSelector. Here is the needed code:

    <telerik:GroupHeaderTemplateSelector x:Key="GroupHeaderContentTemplateSelector">
        <telerik:GroupHeaderTemplateSelector.HorizontalTemplate>
            <DataTemplate>
                <ContentPresenter Content="{Binding FormattedName}" Height="0" Margin="0" />
            </DataTemplate>
        </telerik:GroupHeaderTemplateSelector.HorizontalTemplate>
        <telerik:GroupHeaderTemplateSelector.VerticalTemplate>
            <DataTemplate>
                <ContentPresenter Content="{Binding FormattedName}" Margin="0" Height="0" VerticalAlignment="Top">
                    <ContentPresenter.LayoutTransform>
                        <RotateTransform Angle="-90" />
                    </ContentPresenter.LayoutTransform>
                </ContentPresenter>
            </DataTemplate>
        </telerik:GroupHeaderTemplateSelector.VerticalTemplate>
    </telerik:GroupHeaderTemplateSelector>

    and the set GroupHeaderContentTemplateSelector to the ScheduleView:

    <telerik:RadScheduleView x:Name="MainSchedule" Grid.Column="1"
        DataContext="{StaticResource ViewModel}"
        AppointmentsSource="{Binding SelectedAppointments}"
        ResourceTypesSource="{Binding ResourceTypes}"
        MinAppointmentHeight="10"
        NavigationHeaderVisibility="Collapsed"
        GroupHeaderContentTemplateSelector="{StaticResource GroupHeaderContentTemplateSelector}">

    Hope this helps.

    All the best,
    Yana
    the Telerik team
