Hi,
I have a chart, which works on some filter selection of dates.

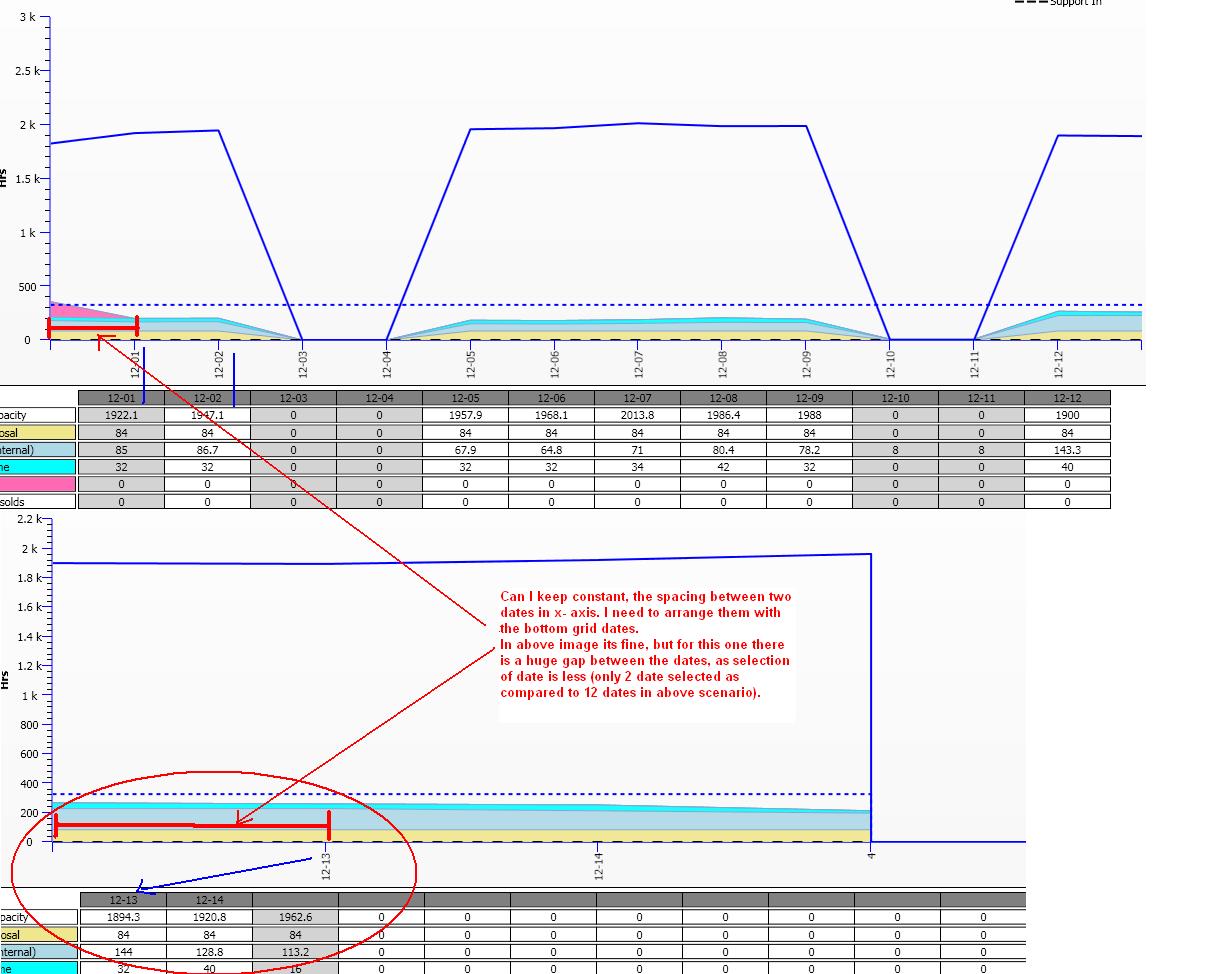

User can select atmost 12 dates to be displayed on the chart. It has grid at the bottom which is aligned to x-axis points of the chart (see the attached image.)
Now when user select the less number of dates say 2 or 6, the gap between the two dates on x-axis increases, as it has more space available, which is now not alligned with the grid.
Please refer attached images for more information.
So, is there any way to fix the distance between the two dates, so that they can come on a single position everytime?
Please reply as soon as possible.
Thanks.
I have a chart, which works on some filter selection of dates.
User can select atmost 12 dates to be displayed on the chart. It has grid at the bottom which is aligned to x-axis points of the chart (see the attached image.)
Now when user select the less number of dates say 2 or 6, the gap between the two dates on x-axis increases, as it has more space available, which is now not alligned with the grid.
Please refer attached images for more information.
So, is there any way to fix the distance between the two dates, so that they can come on a single position everytime?
Please reply as soon as possible.
Thanks.
1 Answer, 1 is accepted
0
Hi Vinod,
In order to sync the X-axis range with the grid columns you would need to set a manual range for the axis on zoom , when selecting a date range. You would also most likely need to set margins as well, but either way you would have to manually sync the axis ticks/labels and the grid columns.
Regards,
Nikolay
the Telerik team
In order to sync the X-axis range with the grid columns you would need to set a manual range for the axis on zoom , when selecting a date range. You would also most likely need to set margins as well, but either way you would have to manually sync the axis ticks/labels and the grid columns.
Regards,
Nikolay
the Telerik team
