How to apply color for AdditionalYAxes through coding?

1 Answer 100 Views
Chart
This is a migrated thread and some comments may be shown as answers.
satish
Top achievements
Rank 1
satish asked on 23 Aug 2010, 09:46 AM
Hi All,

I am using the RadChart for WPF in my project for displaying the Chart as LineSeries, my requirment is like this:
 1) I need to add dataPoints dynamically by reading the output file for each Dataseries
  2) I need to add AdditionalYAxes for each Dataseries
  3) I need to Apply ForeGround color for each DataSeries
   4)And the same DataSeires color i need to apply color for related AdditionalYAxes

I have done upto the Above Three Steps and i am able to add AdditionalYAxes. But i am not able to Apply the color Style for the AdditionYAxes line and also the AdditionalYAxes is not start from X-axes, for now it is starting from X-axes one Step above.

I need to apply the color for AdditionaYAxes for the relating DataSeries and The Line should Start from X-Axes position.

i have attached my codeSnippet below:
.XAML file

<





UserControl x:Class="TabControl.MainWindow"







xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"







xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"







xmlns:telerikChart="http://schemas.telerik.com/2008/xaml/presentation"







xmlns:telerikCharting="clr-namespace:Telerik.Windows.Controls.Charting;assembly=Telerik.Windows.Controls.Charting"







Height="Auto" Width="Auto">









<Grid>









<Grid.Resources>









<Style x:Name="CustomAxisLineStyle" TargetType="Line">









<Setter Property="Stroke" Value="Red" />









<Setter Property="StrokeThickness" Value="5" />









</Style>









</Grid.Resources>









<telerikChart:RadChart x:Name="_myChart">









</telerikChart:RadChart>









</Grid>



</





UserControl>




.Xaml.cs file





private void GenerateSeries(string target, ref DateTime timeStamp, double avgVal, string counterName)



{





int _minsOffSet=0;







DateTime minDate = DateTime.MaxValue;







DateTime maxDate = DateTime.MinValue;







double minVal = double.MaxValue;







double maxVal = double.MinValue;







DataSeries counterSeries = new DataSeries();



counterSeries.Definition =



new LineSeriesDefinition() { ShowItemLabels = false, ShowItemToolTips = true };



counterSeries.Definition.ItemToolTipFormat =



"#SERIESLABEL\n#Y";



counterSeries.Definition.AxisName = counterName;





AxisY yAxis = new AxisY();



yAxis.AxisName = counterName;





string legendName = string.Format("{0}", counterName);



SetLegendDetails(legendName,



ref counterSeries, ref yAxis);







DateTime time = timeStamp.AddMinutes(_minsOffSet);





minVal =



Math.Min(minVal, avgVal);



maxVal =



Math.Max(maxVal, avgVal);







DataPoint dp = new DataPoint(time.ToOADate(), avgVal);



dp.IsDateTime =



true;



counterSeries.Add(dp);





if (time > maxDate)



maxDate = time;





if (time < minDate)



minDate = time;





if (avgVal > maxVal)



maxVal = avgVal;





if (avgVal > minVal)



minVal = avgVal;

_myChart.DefaultView.ChartArea.AxisX.MinValue = minDate.ToOADate();

_myChart.DefaultView.ChartArea.AxisX.MaxValue = maxDate.ToOADate();

_myChart.DefaultView.ChartArea.AxisY.MinValue = minVal;

_myChart.DefaultView.ChartArea.AxisY.MaxValue = maxVal;

_myChart.DefaultView.ChartArea.DataSeries.Add(counterSeries);

_myChart.DefaultView.ChartArea.AdditionalYAxes.Add(yAxis);





double graphVariation = maxVal - minVal;







if ((graphVariation > 2) & (graphVariation <= 9))



{

_myChart.DefaultView.ChartArea.AxisY.DefaultLabelFormat =



"n1";



}





else if (graphVariation <= 2)



{

_myChart.DefaultView.ChartArea.AxisY.DefaultLabelFormat =



"n3";



}





else



{

_myChart.DefaultView.ChartArea.AxisY.DefaultLabelFormat =



"n0";



_myChart.DefaultView.ChartArea.AxisY.DefaultLabelFormat =



"0";



}

}





private void SetLegendDetails(string legendName, ref DataSeries dataSeries, ref AxisY yAxis)



{

_myChart.DefaultView.ChartLegend.Header =



"";



_myChart.DefaultView.ChartLegend.UseAutoGeneratedItems =



true;



dataSeries.LegendLabel = legendName;

dataSeries.Definition.Appearance.Foreground =



new SolidColorBrush(Colors.Green);







Style customAxisYStyle = this.Resources["CustomAxisYStyle"] as Style;



_myChart.DefaultView.ChartArea.AxisY.AxisStyles.AxisLineStyle = customAxisYStyle;



}

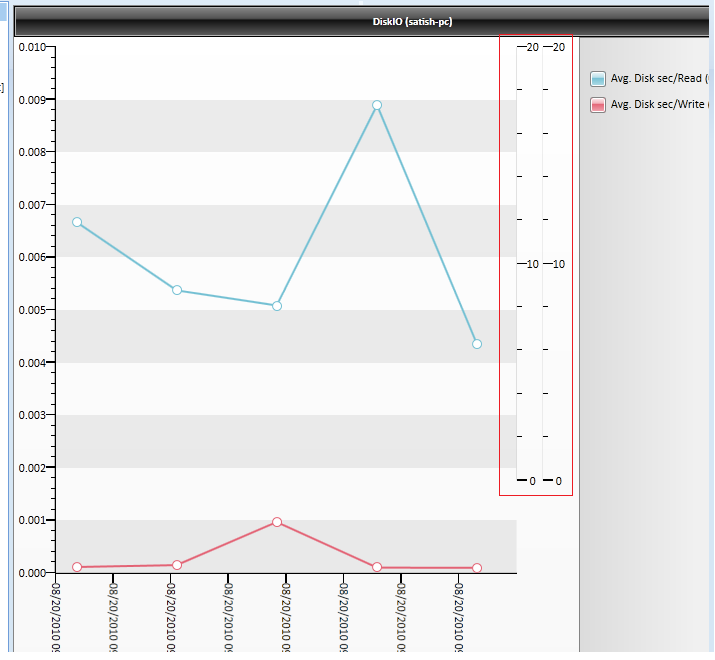

I have attaching the Chart ScreenShot what i implemented.
Please see in Attachments
i am  calling the GenerateSeries Method every time for loading the X-Axis value and Y-Axes value.
Please any one help me how to apply color and starting position of AdditionaYAxes.
This is very urgent Requirment.

Thanks and Regards
Satish

1 Answer, 1 is accepted

Sort by
0
Sia
Telerik team
answered on 26 Aug 2010, 08:14 AM
Hi Satish,

As I understand from your post you need to set different stroke color for every additional y axis. I noticed something wrong in your code - please use the following style for your axes:

<Style x:Key="CustomAxis" TargetType="Line">
      <Setter Property="Stroke" Value="Green" />
      <Setter Property="StrokeThickness" Value="5" />
</Style>

The difference is that you need to use x:Key instead of x:Name. Having separate style for every y axis should fix your problem.

Regarding your second question (about the start point of the additional y axes), I have tried to reproduce it with the provided code, but unfortunately with no success. A possible hint is that may be it is caused by the data you set.

Could you please provide us with more information? A sample project would be the best option.

Thank you,
Sia
the Telerik team
