How do you influence position of connectors in a heirarchical Kendo UI Diagram

1 Answer 132 Views
Diagram
This is a migrated thread and some comments may be shown as answers.
Craig
Top achievements
Rank 1
Craig asked on 28 Mar 2017, 04:36 AM

I have a stack overflow question posted here



I am building an organisation chart using Kendo UI's diagramming component
I do not want the user to be able to edit the diagram as it is a read-only representation of positions they have entered previously, however I do want to display the diagram in a particular way.
The layout type I am using is tree with subtype of down. I am using the HeirarchicalDataSourceas the dataSource

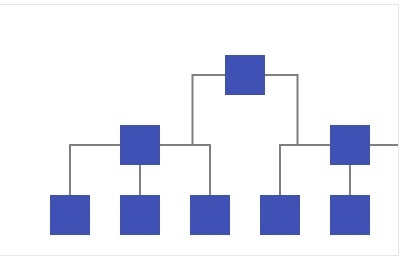

The default way the diagram is drawn looks like (default.jpg, attached)

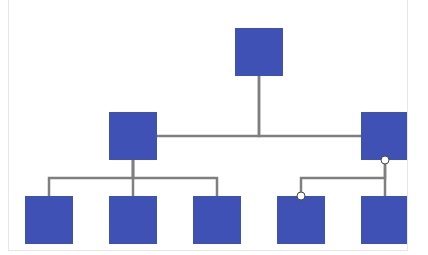

However, my boss needs it to look like this: (wanted.jpg, attached)





So the parent nodes have all child nodes coming from the bottom connector.
I see no way to programmatically influence this. Please help.







1 Answer, 1 is accepted

Sort by
0
Stefan
Telerik team
answered on 29 Mar 2017, 12:35 PM
Hello Craig,

I noticed that an answer with some runnable examples is provided in the StackOverflow question.

Please advise if additional assistance is needed, or the examples are demonstrating the needed functionalities.

Regards,
Stefan
