Ho to prevent null values in series from showing line to axis

Thread is closed for posting
5 posts, 0 answers
  1. Joel
    Joel avatar
    166 posts
    Member since:
    Oct 2006

    Posted 13 Nov 2009 Link to this post

    I have a line chart with 2 series.  series1 will always have less values than series2.   The last value of series1 causes the line do drop to the x axis, I would like it to just end.

      Private Sub MakeGraph(ByVal myyear As Int32, ByVal _Val1 As String, ByVal _val2 As String)
            Dim table As DataTable
            table = Get52WeekGraph
            rctrend.DataSource = table
            rctrend.DataBind()
            rctrend.PlotArea.XAxis.DataLabelsColumn = "weekname"
            Dim series1 As New Telerik.Charting.ChartSeries()
            Dim series2 As New Telerik.Charting.ChartSeries()
            rctrend.Series.Clear()
            Dim minval As Double = 1000000
            Dim maxval As Double = 0
            For Each rowView As DataRowView In table.DefaultView
                Dim seriesItem1 As New Telerik.Charting.ChartSeriesItem()
                seriesItem1.Label.Visible = False
                If Not IsDBNull(rowView("tyval")) Then
                    seriesItem1.YValue = CDbl(rowView("tyval"))
                    If seriesItem1.YValue < minval Then minval = seriesItem1.YValue
                    If seriesItem1.YValue > maxval Then maxval = seriesItem1.YValue
                    series1.DataLabelsColumn = rowView("weekname")
                End If

                series1.AddItem(seriesItem1)
                Dim seriesItem2 As New Telerik.Charting.ChartSeriesItem()
                seriesItem2.Label.Visible = False
                If Not IsDBNull(rowView("lyval")) Then
                    seriesItem2.YValue = CDbl(rowView("lyval"))
                    If seriesItem2.YValue < minval Then minval = seriesItem2.YValue
                    If seriesItem2.YValue > maxval Then maxval = seriesItem2.YValue
                    series1.DataLabelsColumn = rowView("weekname")
                End If
                series2.AddItem(seriesItem2)
            Next

            series1.Name = _Val1
            series2.Name = _val2

            Dim valdiff As Double
            Dim mybuff As Double
            Dim mystep As Double
            valdiff = maxval - minval


            mybuff = valdiff * 0.2
            minval = CInt(minval - mybuff)
            maxval = CInt(maxval + mybuff)
            mystep = (maxval - minval) / 10

            rctrend.Series.Add(series1)
            rctrend.Series.Add(series2)
            rctrend.PlotArea.Chart.DefaultType = Telerik.Charting.ChartSeriesType.Line
            rctrend.PlotArea.YAxis.AutoScale = False
            rctrend.PlotArea.YAxis.IsZeroBased = False
            rctrend.PlotArea.YAxis.MinValue = minval
            rctrend.PlotArea.YAxis.MaxValue = maxval
            rctrend.PlotArea.YAxis.Step = mystep
            rctrend.PlotArea.XAxis.MaxValue = 52

            rctrend.ChartTitle.TextBlock.Text = "Score"
    End Sub
    d with the last real value.
  2. Joel
    Joel avatar
    166 posts
    Member since:
    Oct 2006

    Posted 13 Nov 2009 Link to this post

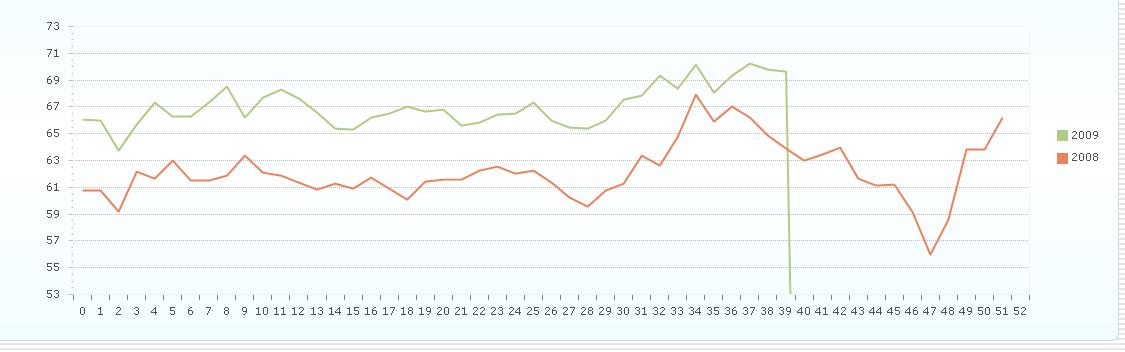

    Here is an example
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Schlurk
    Schlurk avatar
    812 posts
    Member since:
    May 2009

    Posted 17 Nov 2009 Link to this post

    I had a discussion regarding this a while back and a Telerik team member posted in the thread with a solution. The thread can be found here. You basically set the line to be transparent :)
  5. Joel
    Joel avatar
    166 posts
    Member since:
    Oct 2006

    Posted 17 Nov 2009 Link to this post

    Thank you Schlurk.  I added the following lines right after the series are created and it did not seem to have any effect on the display results unfortunately.



            series1.Appearance.EmptyValue.Mode = Styles.EmtyValuesMode.Zero
            series1.Appearance.EmptyValue.Line.Color = Drawing.Color.Transparent
            series1.Appearance.EmptyValue.PointMark.Visible = False
            series2.Appearance.EmptyValue.Mode = Styles.EmtyValuesMode.Zero
            series2.Appearance.EmptyValue.Line.Color = Drawing.Color.Transparent
            series2.Appearance.EmptyValue.PointMark.Visible = False


  6. Schlurk
    Schlurk avatar
    812 posts
    Member since:
    May 2009

    Posted 17 Nov 2009 Link to this post

    I posted this earlier in the thread, and this doesn't work with all of the series types but you could use the following code in the ItemDataBound event:

    if (e.SeriesItem.YValue == 0.0)
    {
         e.SeriesItem.Parent.Items.Remove(e.SeriesItem);
    }

    I've used this in previous implementations and it's worked like a charm, but again it depends on your series type. Let me know if this works instead.
