Hiding System.Drawing.Font properties in RadPropertyGrid

9 posts, 0 answers
  1. Bijal
    Bijal avatar
    1 posts
    Member since:
    May 2016

    Posted 12 Oct 2016 Link to this post

    I'm using Progress OpenEdge 11.6 and I'm implementing a RadPropertyGrid that contains a property of type System.Drawing.Font.

    When The Font property is displayed it automatically includes an expandable section which I want to keep, but some of the options are irrelavent to this app and I want to hide or remove them.

    After reviewing the documentation and the other forum threads here, I tried the following code:

    /*------------------------------------------------------------------------------
     Purpose:
     Notes:
    ------------------------------------------------------------------------------*/
    @VisualDesigner.
    METHOD PRIVATE VOID Props_CreateItemElement( INPUT sender AS System.Object,
                                                 INPUT e AS CreatePropertyGridItemElementEventArgs ):

        IF  e:ITEM:parent <> ?           AND
           e:ITEM:parent:Label = "Font" THEN
          IF e:ITEM:Label   = "Unit"                         OR
            e:ITEM:Label   = "GdiCharSet"            OR
            e:ITEM:Label   = "GdiVerticalFont" THEN
           e:ITEM:Visible = NO.

        RETURN.

    END METHOD.



    This appears to work initially when I expand the Font Property, these three items are not there, but as soon as I change one of the properties (such as changing the Bold flag) the hidden items reappear.

    Am I not using the appropriate event to do this? Did I miss an event?

    Please help.





  2. Dess
    Admin
    Dess avatar
    1939 posts

    Posted 14 Oct 2016 Link to this post

    Hello Bijal,

    Thank you for writing.

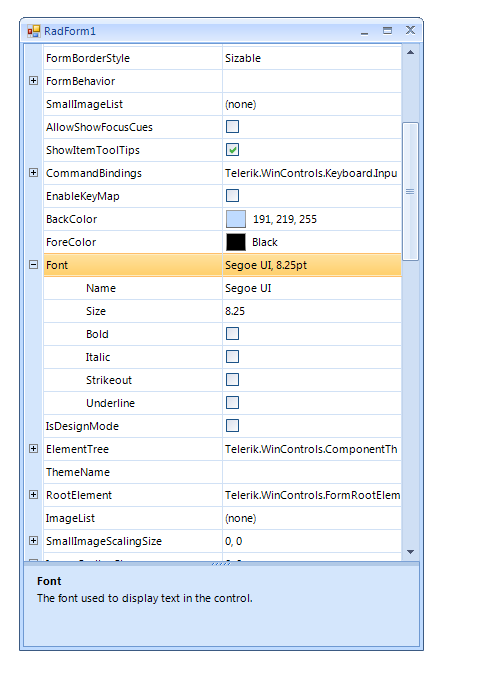

    In order to hide some of the subitems in RadPropertyGrid, it is necessary to iterate the relevant PropertyGridItem.GridItems collection and set the Visible property to false for the certain item:

    public RadForm1()
    {
        InitializeComponent();

        this.radPropertyGrid1.SelectedObject = this;
        foreach (PropertyGridItem item in this.radPropertyGrid1.Items)
        {
            if (item.Label == "Font")
            {
                foreach (PropertyGridItem subItem in item.GridItems)
                {
                    if (subItem.Label == "Unit" ||
                        subItem.Label == "GdiCharSet" ||
                        subItem.Label == "GdiVerticalFont")
                    {
                        subItem.Visible = false;
                    }
                }
                break;
            }
        }
    }

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik by Progress
    Check out the Windows Forms project converter, which aids the conversion process from standard Windows Forms applications written in C# or VB to Telerik UI for WinForms.For more information check out this blog post and share your thoughts.
  3. Kenneth
    Kenneth avatar
    5 posts
    Member since:
    Oct 2016

    Posted 14 Oct 2016 in reply to Dess Link to this post

    I tried this as you suggested. Here's the OpenEdge equivalent of your suggestion:

    props:SelectedObjects = propArray.

    {foreach.i PropertyGridItem vItem in  props:Items }

       IF vItem:LABEL = "Font" THEN
        DO:

          {foreach.i PropertyGridItem vSubItem in  vItem:GridItems }

           IF   vSubItem:LABEL = "Unit"
           OR   vSubItem:LABEL = "GdiCharSet"
           OR   vSubItem:LABEL = "GdiVerticalFont"
           THEN vSubItem:VISIBLE = FALSE.

          END.

          LEAVE.

        END.

    END.



    the foreach.i is a macro that emulates the behavior of a C# foreach statement (since OpenEdge doesn't have a similar construct).



    Anyway, I still have the same problem.

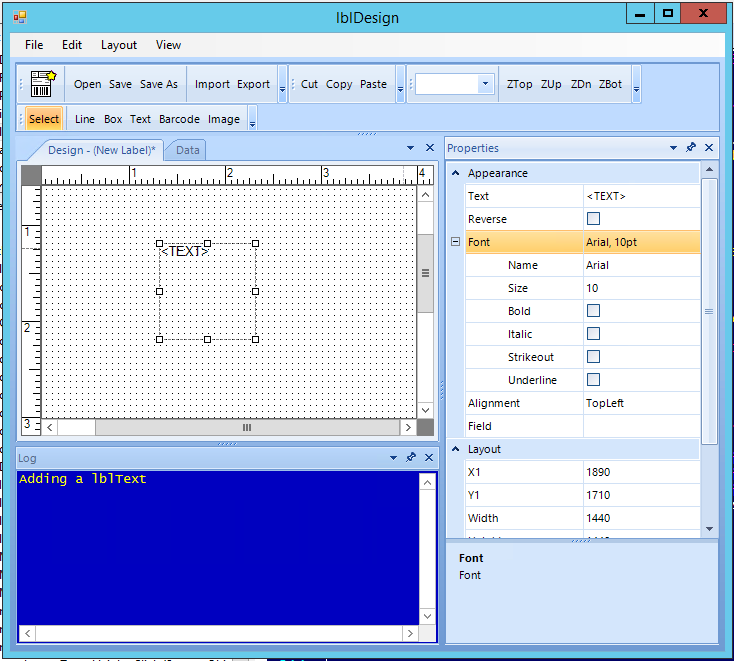

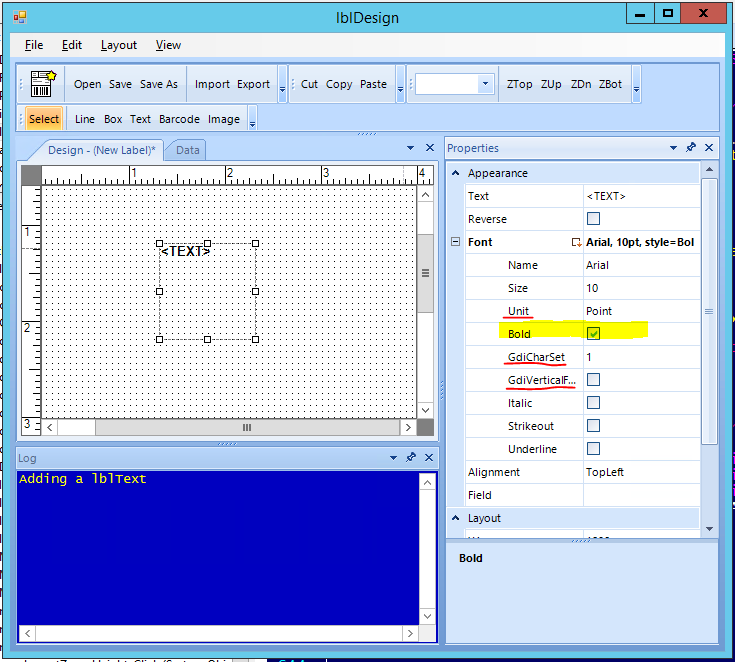

    If you expand the Font item, the subitems are gone, but as soon as you change one of the properties, they reappear. Please see the attached images.









  4. Kenneth
    Kenneth avatar
    5 posts
    Member since:
    Oct 2016

    Posted 14 Oct 2016 in reply to Kenneth Link to this post

    I'd also like to add that what I think is happening is that the property text of the Font line itself is changing (from "Arial, 10pt" to "Arial, 10pt, style=Bold") and that is triggering a reload of the System.Drawing.Font's subitems.

    I believe this is the case because if I click off of my <TEXT> object (seen in the screenshots) and then back onto it, the Font property's subitems are hidden again.



  5. Kenneth
    Kenneth avatar
    5 posts
    Member since:
    Oct 2016

    Posted 14 Oct 2016 Link to this post

    I was able to make it work by adding the following to the PropertyValueChanged event:

    METHOD PRIVATE VOID Props_PropertyValueChanged(INPUT sender AS System.Object,
                                                  INPUT e AS PropertyGridItemValueChangedEventArgs ):

    DEF VAR pgiTmp AS PropertyGridItem NO-UNDO.

    pgiTmp = CAST(e:ITEM, PropertyGridItem).

    IF pgiTmp:LABEL = "Font" THEN
     DO:

       {foreach.i PropertyGridItem vSubItem in pgiTmp:GridItems }

         IF   vSubItem:LABEL = "Unit"
         OR   vSubItem:LABEL = "GdiCharSet"
         OR   vSubItem:LABEL = "GdiVerticalFont"
         THEN vSubItem:VISIBLE = FALSE.

       END.

    END.



    END METHOD.



    Now this works, but it feels like a hack. I'd still like to know if there's a cleaner way of doing this.

  6. Dess
    Admin
    Dess avatar
    1939 posts

    Posted 17 Oct 2016 Link to this post

    Hello Kenneth,

    Thank you for writing back.

    Indeed, when you change the Font property, the hidden items show again. As you have already found out, the suitable approach is to handle the PropertyValueChanged event and hide the undesired PropertyGridItems.
    private void radPropertyGrid1_PropertyValueChanged(object sender, PropertyGridItemValueChangedEventArgs e)
    {
        foreach (PropertyGridItem item in this.radPropertyGrid1.Items)
        {
            if (item.Label == "Font")
            {
                foreach (PropertyGridItem subItem in item.GridItems)
                {
                    if (subItem.Label == "Unit" ||
                        subItem.Label == "GdiCharSet" ||
                        subItem.Label == "GdiVerticalFont")
                    {
                        subItem.Visible = false;
                    }
                }
                break;
            }
        }
    }

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik by Progress
    Check out the Windows Forms project converter, which aids the conversion process from standard Windows Forms applications written in C# or VB to Telerik UI for WinForms.For more information check out this blog post and share your thoughts.
  7. Tyler
    Tyler avatar
    17 posts
    Member since:
    Jun 2016

    Posted 21 Mar in reply to Dess Link to this post

    I am in the same scenario, but the object that is in question is an Enum.  Given the exact same scenario, the subItems.GridItems is 0, when you indeed see all the enum values in the drop down.  Does this not work the same for Enums?



    what I would like to do is disable or remove one of the property values that is not allowed in certain situations, but so far I am not seeing this as an option.



    I am attached a snippet of my test code so you can replicate.



    namespace TestingTelerikPropertyGrid
    {
        public partial class Form1 : Form
        {
            public Form1()
            {
                InitializeComponent();
                var temp = new TestingClass();

                propertyGrid.SelectedObject = temp;

                foreach (var item in propertyGrid.Items)
                {
                    if (item.Label != "StereoMode")
                    {
                        continue;
                    }

                    foreach (var subItems in item.GridItems)
                    {
                        if (subItems.Name == "Interleaved")
                        {
                            subItems.Visible = false;
                        }
                    }
                }
            }
        }

        public enum MyTestEnum { Off, PassiveLeft, PassiveRight, ActiveLeft, ActiveRight, Interleaved }

        public class TestingClass
        {
            public TestingClass()
            {
                StereoMode = MyTestEnum.Off;
                MyNumber = 123;
            }

            public MyTestEnum StereoMode { get; set; }
            public int MyNumber { get; set; }
        }

    }
  8. Dess
    Admin
    Dess avatar
    1939 posts

    Posted 22 Mar Link to this post

    Hello Tyler,

    Thank you for writing back.

    If I understand your requirement correctly, you are trying to hide just one option from the enum values when editing the specific item. For this case, it is necessary to subscribe to the EditorInitialized event and remove the redundant items. Here is a sample code snippet:
    private void RadPropertyGrid1_EditorInitialized(object sender, PropertyGridItemEditorInitializedEventArgs e)
    {
        PropertyGridDropDownListEditor editor = e.Editor as PropertyGridDropDownListEditor;
        if (editor != null)
        {
            BaseDropDownListEditorElement el = editor.EditorElement as BaseDropDownListEditorElement;
            int index = -1;
            foreach (RadListDataItem item in el.Items)
            {
                if (item.Text == "ActiveRight")
                {
                    index = el.Items.IndexOf(item);
                    break;

                }

            }
            if (index > -1)
            {
                el.Items.RemoveAt(index);
            }
        }
    }

    If it is not the exact requirement it would be greatly appreciated if you can specify in details what is the exact requirement that you are trying to achieve. Thus, we would be able to assist you further. Thank you.

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  9. Tyler
    Tyler avatar
    5 posts
    Member since:
    Mar 2017

    Posted 22 Mar Link to this post

    Dess!  Your solution has worked perfectly for me!  Thank you much for your quick response.
