Hide drag visual

3 posts, 1 answers
  1. Andrew
    Andrew avatar
    24 posts
    Member since:
    Dec 2010

    Posted 20 Apr 2012 Link to this post

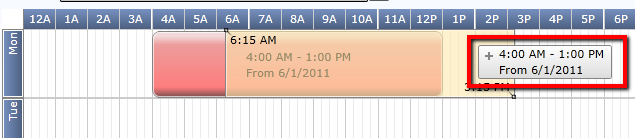

    I'd like to hide the drag visual. (See attached image.) How do I do this?

    I've tried this:

    <telerik:RadScheduleView>
        <telerik:RadScheduleView.ViewDefinitions>
            <!-- ... -->
        </telerik:RadScheduleView.ViewDefinitions>
        <telerik:RadScheduleView.DragVisualStyle>
            <Style TargetType="telerik:DragVisual">
                <Setter Property="Template">
                    <Setter.Value>
                        <ControlTemplate TargetType="telerik:DragVisual">
                            <Grid />
                        </ControlTemplate>
                    </Setter.Value>
                </Setter>
            </Style>
        </telerik:RadScheduleView.DragVisualStyle>
    </telerik:RadScheduleView>

    I also tried using a Setter for Visibility with a value of Collapsed, instead of setting the Template property.

    In both cases, I'm getting a KeyNotFoundException inside a XamlParseException. If I comment out the DragVisualStyle, then I don't get the error.

    XamlParseException: [Line: 0 Position: 0]
       at MS.Internal.XcpImports.CheckHResult(UInt32 hr)
       at MS.Internal.XcpImports.SetValue(IManagedPeerBase obj, DependencyProperty property, DependencyObject doh)
       at System.Windows.DependencyObject.SetValue(DependencyProperty property, DependencyObject doh)
       at System.Windows.FrameworkElement.set_Style(Style value)
       at Telerik.Windows.Controls.DragDropHelper.CreateDefaultDragVisual(IEnumerable`1 draggedAppointments)
       at Telerik.Windows.Controls.DragDropHelper.CreateDragVisualFullTrust(IPayload payload, Double& offsetLeft, Double& offsetTop)
       at Telerik.Windows.Controls.DragDropHelper.CreateDragVisual(IPayload payload, Double& offsetLeft, Double& offsetTop)
       at Telerik.Windows.Controls.DragDropHelper.OnDragInitialize(Object sender, DragInitializeEventArgs e)
       at Telerik.Windows.DragDrop.DragInitializeEventArgs.InvokeEventHandler(Delegate genericHandler, Object genericTarget)
       at Telerik.Windows.RadRoutedEventArgs.InvokeHandler(Delegate handler, Object target)
       at Telerik.Windows.RoutedEventHandlerInfo.InvokeHandler(Object target, RadRoutedEventArgs routedEventArgs)
       at Telerik.Windows.RouteItem.InvokeHandler(RadRoutedEventArgs routedEventArgs)
       at Telerik.Windows.EventRoute.InvokeHandlersImpl(Object source, RadRoutedEventArgs args, Boolean raisedAgain)
       at Telerik.Windows.EventRoute.InvokeHandlers(Object source, RadRoutedEventArgs args)
       at Telerik.Windows.RadRoutedEventHelper.RaiseEvent(DependencyObject element, RadRoutedEventArgs args)
       at Telerik.Windows.DependencyObjectExtensions.RaiseEvent(DependencyObject element, RadRoutedEventArgs e)
       at Telerik.Windows.DragDrop.DragInitializer.StartDrag()
       at Telerik.Windows.DragDrop.DragInitializer.StartDragPrivate(UIElement sender)
       at Telerik.Windows.DragDrop.DragInitializer.DragSourcePreviewMouseMove(Object sender, MouseEventArgs e)
       at MS.Internal.CoreInvokeHandler.InvokeEventHandler(UInt32 typeIndex, Delegate handlerDelegate, Object sender, Object args)
       at MS.Internal.JoltHelper.FireEvent(IntPtr unmanagedObj, IntPtr unmanagedObjArgs, Int32 argsTypeIndex, Int32 actualArgsTypeIndex, String eventName, UInt32 flags)

    Inner exception: KeyNotFoundException
       at System.Collections.Generic.Dictionary`2.get_Item(TKey key)
       at System.Windows.ResourceManagerWrapper.GetResourceForUri(Uri xamlUri, Type componentType)
  2. Answer
    Dani
    Admin
    Dani avatar
    848 posts

    Posted 23 Apr 2012 Link to this post

    Hello Andrew,

    Overriding the ControlTemplate the way you do is the right way to go. The only thing to keep in mind is to target the DragVisual class in the ScheduleView assembly. That is, use the following TargetType:
    TargetType="scheduleView:DragVisual"

    with the following namespace:
    xmlns:scheduleView="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.ScheduleView"

    I hope this will be helpful.

    Regards,
    Dani
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
  3. DevCraft banner
  4. Andrew
    Andrew avatar
    24 posts
    Member since:
    Dec 2010

    Posted 23 Apr 2012 Link to this post

    Hello Dani,

    That fixed me right up! In fact, both my solutions now work when I specify the correct namespace for DragVisual. Thanks!

    Andrew
