Header values for RadPivotGrid

3 posts, 0 answers
  1. Waqas
    Waqas avatar
    9 posts
    Member since:
    Oct 2011

    Posted 25 Apr 2015 Link to this post

    Hi,

    I am using RadPivotGrid with my dyynamic selection of data and each time i get the datatable, i add appropriate values in LocalDataSourceProvider.RowGroupDescriptions, LocalDataSourceProvider.ColumnGroupDescriptions, LocalDataSourceProvider.AggregateDescriptions. I am using the following sample code to add values in these collection as example

    var property = new PropertyGroupDescription();
    property.PropertyName = item.DisplayName;
    property.CustomName = item.DisplayName;
    LocalDataSourceProvider.RowGroupDescriptions.Add(property);

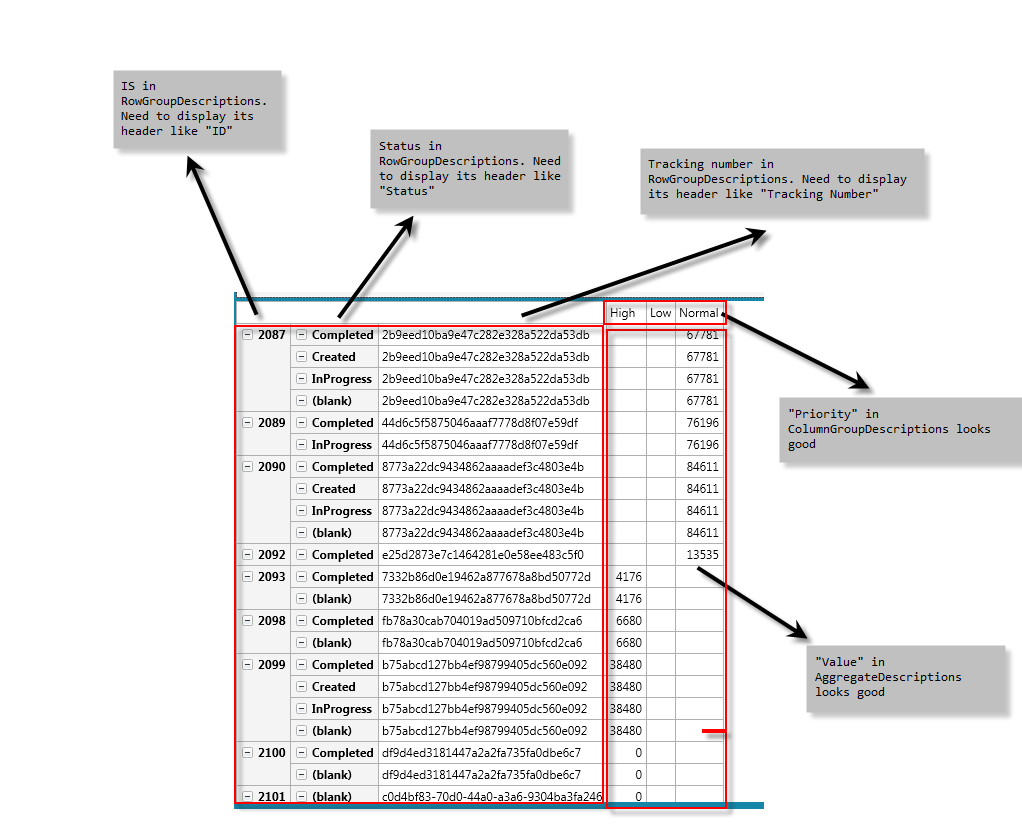

    All works fine. But in case of "RowGroupDescriptions", i want to display header values to let user know what they are. I have attached an image to describe the requirement.

    here you can see that i have added "ID", "Status" and "TrackingNumber" in  RowGroupDescriptions. "Priority" in ColumnGroupDescriptions and "Value" in ColumnGroupDescriptions. All looks good but i am unable to get header values for RowGroupDescriptions fields as mentioned in screenshot.

    Please note that these fields are dynamic that is they can be changed according to the selection.

    Any kind of help or suggestion is really appreciated.

    Thanks

    Waqas Habib





  2. Waqas
    Waqas avatar
    9 posts
    Member since:
    Oct 2011

    Posted 25 Apr 2015 in reply to Waqas Link to this post

    Please find the attached image here.... :)
  3. UI for WPF is Visual Studio 2017 Ready
  4. Polya
    Admin
    Polya avatar
    199 posts

    Posted 28 Apr 2015 Link to this post

    Hello Waqas,

    Telerik RadPivotGrid is a control used to aggregate records in a concise tabular format. The data can be easily grouped, filtered, sorted and manipulated to create different reports. Lets say we have a field - "Product" and in our ItemsSource the values for this field are: "Pen", "Notebook", "Pencil".
    When we group by "Product" (i.e. adding a PropertyGroupDescription for this field in either Rows or Columns) the Row/Column headers that will be generated will contain the records for "Product" and not the field itself. So we will have column or row headers for "Pen", "Notebook", "Pencil" and not for "Product". Unfortunately, this is by design and I cannot propose a way of adding additionally the field name in the RadPivotGrid columns/rows.
    I suggest considering using the RadGridView instead: http://docs.telerik.com/devtools/wpf/controls/radgridview/overview2. Also you can take a look at this article for more information and comparison between the RadPivotGrid and the RadGridView: http://docs.telerik.com/devtools/wpf/controls/radpivotgrid/getting-started/started-understanding-pivot

    Regards,
    Polya
    Telerik
