Having buttons look the same in RibbonBarButtonGroup and RibbonBarGroup

6 posts, 0 answers
  1. rahmani mohamed samir
    rahmani mohamed samir avatar
    3 posts
    Member since:
    Aug 2004

    Posted 23 Aug 2010 Link to this post

    Hello

    Using the RibbonBar, I am adding buttons vertically to a RibbonBarGroup when there are three or less. when there more buttons, I add adjacent RibbonBarButtonGroups, then add the buttons to them.

    The problem is that buttons do not look the same.
    How can i make the buttons in RibbonBarButtonGroup have the exact same style as those in RibbonBarGroup ?

    I use Office2007Silver theme, and the latest version.

    Thanks in advance!


  2. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 26 Aug 2010 Link to this post

    Hi rahmani mohamed samir,

    Thanks for writing.

    You should set RibbonBarButtonGroup's ShowBackColor and ShowBorder properties to false.
    Set the ShowBorder property of the RibbonBarButtonGroup's Buttons to false as well:
    this.radRibbonBarButtonGroup1.ShowBackColor = false;
    this.radRibbonBarButtonGroup1.ShowBorder = false;
    this.radButtonElement1.ShowBorder = false;
    this.radButtonElement2.ShowBorder = false;

    I hope this helps.

    Kind regards,
    Peter
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. rahmani mohamed samir
    rahmani mohamed samir avatar
    3 posts
    Member since:
    Aug 2004

    Posted 26 Aug 2010 Link to this post

    Hi

    Thank you for your suggestion.
    The solution that I ended up doing was in the same direction, I removed all buttons borders by always placing them inside RibbonBarButtonGroup. this, in the same time, made them all rectangular rather than rounded corners.

    in fact, what I initially wanted is to have buttons in both containers always render with border and round rectangle shape.
    by editing the Office2007Silver theme in Visual Style Builder, would there be a simple way to copy all styles from ButtonInRibbonGroup to ButtonInRibbonButtonGroup ? or, by code, make buttons use the styles of ButtonInRibbonGroup rather than ButtonInRibbonButtonGroup ?

    Kind regards
  5. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 27 Aug 2010 Link to this post

    Hi rahmani mohamed samir,

    Thank you for writing me back. In this case you can set the Class property. Please consider the code snippet below:

    this.radRibbonBarButtonGroup1.ShowBackColor = false;
    this.radRibbonBarButtonGroup1.ShowBorder = false;
    this.radButtonElement1.ShowBorder = false;
    this.radButtonElement2.ShowBorder = false;
    this.radButtonElement1.Class = "RibbonBarButtonElement";
    this.radButtonElement1.ButtonFillElement.Class = "ButtonInRibbonFill";
    this.radButtonElement1.BorderElement.Class = "ButtonInRibbonBorder";
    this.radButtonElement2.Class = "RibbonBarButtonElement";
    this.radButtonElement2.ButtonFillElement.Class = "ButtonInRibbonFill";
    this.radButtonElement2.BorderElement.Class = "ButtonInRibbonBorder";

    I hope this helps. If you need further assistance, please contact me.

    Kind regards,
    Peter
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  6. rahmani mohamed samir
    rahmani mohamed samir avatar
    3 posts
    Member since:
    Aug 2004

    Posted 31 Aug 2010 Link to this post

    Hi

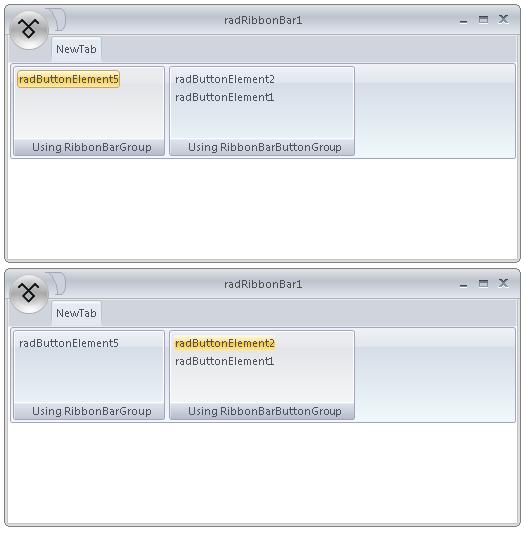

    Setting the Class property did not have any effect. To illustrate the case, I am attaching the screen shots of the obtained results.
    since I could not attach the sample project, the source code is bellow.

    Thanks for your assistance


    --------------------File Form1.cs--------------------
    using Telerik.WinControls;

    namespace WindowsFormsTestApplication
    {
        public partial class Form1 : Telerik.WinControls.UI.RadRibbonForm
        {
            public Form1()
            {
                InitializeComponent();
                ThemeResolutionService.ApplicationThemeName = "Office2007Silver";

                this.radButtonElement1.ShowBorder = false;
                this.radButtonElement2.ShowBorder = false;
                this.radButtonElement1.Class = "RibbonBarButtonElement";
                this.radButtonElement1.ButtonFillElement.Class = "ButtonInRibbonFill";
                this.radButtonElement1.BorderElement.Class = "ButtonInRibbonBorder";
                this.radButtonElement2.Class = "RibbonBarButtonElement";
                this.radButtonElement2.ButtonFillElement.Class = "ButtonInRibbonFill";
                this.radButtonElement2.BorderElement.Class = "ButtonInRibbonBorder";

            }
        }
    }

    --------------------File Form1.Designer.cs--------------------
    namespace WindowsFormsTestApplication
    {
        partial class Form1
        {
            /// <summary>
            /// Variable nécessaire au concepteur.
            /// </summary>
            private System.ComponentModel.IContainer components = null;

            /// <summary>
            /// Nettoyage des ressources utilisées.
            /// </summary>
            /// <param name="disposing">true si les ressources managées doivent être supprimées ; sinon, false.</param>
            protected override void Dispose(bool disposing)
            {
                if (disposing && (components != null))
                {
                    components.Dispose();
                }
                base.Dispose(disposing);
            }

            #region Code généré par le Concepteur Windows Form

            /// <summary>
            /// Méthode requise pour la prise en charge du concepteur - ne modifiez pas
            /// le contenu de cette méthode avec l'éditeur de code.
            /// </summary>
            private void InitializeComponent()
            {
                this.radRibbonBar1 = new Telerik.WinControls.UI.RadRibbonBar();
                this.ribbonTab1 = new Telerik.WinControls.UI.RibbonTab();
                this.radRibbonBarGroup1 = new Telerik.WinControls.UI.RadRibbonBarGroup();
                this.radButtonElement5 = new Telerik.WinControls.UI.RadButtonElement();
                this.radRibbonBarGroup2 = new Telerik.WinControls.UI.RadRibbonBarGroup();
                this.radRibbonBarButtonGroup1 = new Telerik.WinControls.UI.RadRibbonBarButtonGroup();
                this.radButtonElement2 = new Telerik.WinControls.UI.RadButtonElement();
                this.radButtonElement1 = new Telerik.WinControls.UI.RadButtonElement();
                this.office2007SilverTheme1 = new Telerik.WinControls.Themes.Office2007SilverTheme();
                ((System.ComponentModel.ISupportInitialize)(this.radRibbonBar1)).BeginInit();
                ((System.ComponentModel.ISupportInitialize)(this)).BeginInit();
                this.SuspendLayout();
                //
                // radRibbonBar1
                //
                this.radRibbonBar1.AutoSize = true;
                this.radRibbonBar1.CommandTabs.AddRange(new Telerik.WinControls.RadItem[] {
                this.ribbonTab1});
                this.radRibbonBar1.Dock = System.Windows.Forms.DockStyle.Top;
                this.radRibbonBar1.EnableKeyMap = true;
                //
                //
                //
                this.radRibbonBar1.ExitButton.Text = "Exit";
                this.radRibbonBar1.Location = new System.Drawing.Point(0, 0);
                this.radRibbonBar1.Name = "radRibbonBar1";
                //
                //
                //
                this.radRibbonBar1.OptionsButton.Text = "Options";
                this.radRibbonBar1.Size = new System.Drawing.Size(659, 150);
                this.radRibbonBar1.StartButtonImage = null;
                this.radRibbonBar1.TabIndex = 0;
                this.radRibbonBar1.Text = "radRibbonBar1";
                //
                // ribbonTab1
                //
                this.ribbonTab1.Alignment = System.Drawing.ContentAlignment.BottomLeft;
                //
                // ribbonTab1.ContentPanel
                //
                this.ribbonTab1.ContentPanel.BackColor = System.Drawing.SystemColors.ControlLightLight;
                this.ribbonTab1.ContentPanel.CausesValidation = true;
                this.ribbonTab1.ContentPanel.Font = new System.Drawing.Font("Microsoft Sans Serif", 8.25F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
                this.ribbonTab1.ContentPanel.ForeColor = System.Drawing.SystemColors.ControlText;
                this.ribbonTab1.ContentPanel.Location = new System.Drawing.Point(0, 0);
                this.ribbonTab1.ContentPanel.Size = new System.Drawing.Size(200, 100);
                this.ribbonTab1.IsSelected = true;
                this.ribbonTab1.Items.AddRange(new Telerik.WinControls.RadItem[] {
                this.radRibbonBarGroup1,
                this.radRibbonBarGroup2});
                this.ribbonTab1.Name = "ribbonTab1";
                this.ribbonTab1.StretchHorizontally = false;
                this.ribbonTab1.Text = "NewTab";
                //
                // radRibbonBarGroup1
                //
                this.radRibbonBarGroup1.Items.AddRange(new Telerik.WinControls.RadItem[] {
                this.radButtonElement5});
                this.radRibbonBarGroup1.Name = "radRibbonBarGroup1";
                this.radRibbonBarGroup1.Orientation = System.Windows.Forms.Orientation.Vertical;
                this.radRibbonBarGroup1.Text = "     Using RibbonBarGroup     ";
                //
                // radButtonElement5
                //
                this.radButtonElement5.Class = "RibbonBarButtonElement";
                this.radButtonElement5.Name = "radButtonElement5";
                this.radButtonElement5.StretchHorizontally = false;
                this.radButtonElement5.Text = "radButtonElement5";
                //
                // radRibbonBarGroup2
                //
                this.radRibbonBarGroup2.Items.AddRange(new Telerik.WinControls.RadItem[] {
                this.radRibbonBarButtonGroup1});
                this.radRibbonBarGroup2.Name = "radRibbonBarGroup2";
                this.radRibbonBarGroup2.Text = "     Using RibbonBarButtonGroup     ";
                //
                // radRibbonBarButtonGroup1
                //
                this.radRibbonBarButtonGroup1.Items.AddRange(new Telerik.WinControls.RadItem[] {
                this.radButtonElement2,
                this.radButtonElement1});
                this.radRibbonBarButtonGroup1.Name = "radRibbonBarButtonGroup1";
                this.radRibbonBarButtonGroup1.Orientation = System.Windows.Forms.Orientation.Vertical;
                this.radRibbonBarButtonGroup1.ShowBackColor = false;
                this.radRibbonBarButtonGroup1.ShowBorder = false;
                this.radRibbonBarButtonGroup1.Text = "radRibbonBarButtonGroup1";
                //
                // radButtonElement2
                //
                this.radButtonElement2.Class = "RibbonBarButtonElement";
                this.radButtonElement2.Margin = new System.Windows.Forms.Padding(1);
                this.radButtonElement2.Name = "radButtonElement2";
                this.radButtonElement2.ShowBorder = false;
                this.radButtonElement2.Text = "radButtonElement2";
                //
                // radButtonElement1
                //
                this.radButtonElement1.Class = "RibbonBarButtonElement";
                this.radButtonElement1.Margin = new System.Windows.Forms.Padding(1);
                this.radButtonElement1.Name = "radButtonElement1";
                this.radButtonElement1.ShowBorder = false;
                this.radButtonElement1.Text = "radButtonElement1";
                //
                // Form1
                //
                this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
                this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
                this.ClientSize = new System.Drawing.Size(659, 273);
                this.Controls.Add(this.radRibbonBar1);
                this.Name = "Form1";
                //
                //
                //
                this.RootElement.ApplyShapeToControl = true;
                this.Text = "radRibbonBar1";
                ((System.ComponentModel.ISupportInitialize)(this.radRibbonBar1)).EndInit();
                ((System.ComponentModel.ISupportInitialize)(this)).EndInit();
                this.ResumeLayout(false);
                this.PerformLayout();

            }

            #endregion

            private Telerik.WinControls.UI.RadRibbonBar radRibbonBar1;
            private Telerik.WinControls.UI.RibbonTab ribbonTab1;
            private Telerik.WinControls.UI.RadRibbonBarGroup radRibbonBarGroup1;
            private Telerik.WinControls.UI.RadRibbonBarGroup radRibbonBarGroup2;
            private Telerik.WinControls.UI.RadRibbonBarButtonGroup radRibbonBarButtonGroup1;
            private Telerik.WinControls.UI.RadButtonElement radButtonElement2;
            private Telerik.WinControls.UI.RadButtonElement radButtonElement1;
            private Telerik.WinControls.Themes.Office2007SilverTheme office2007SilverTheme1;
            private Telerik.WinControls.UI.RadButtonElement radButtonElement5;
        }
    }
  7. Peter
    Admin
    Peter avatar
    1148 posts

    Posted 02 Sep 2010 Link to this post

    Hi rahmani mohamed samir

    Thanks for writing back.

    I was not able to find a way to modify the border behavior. As a suggestion you could try to turn off the borders of buttons outside the button group. For example:

    this.radButtonElement5.ShowBorder = false;

    Please, excuse us for the inconvenience.  Don't hesitate to contact us if you have other questions.


    All the best,
    Peter
    the Telerik team
