Hardtimeto dataBind a Innerjoin Query on my HdtlmChart

2 posts, 0 answers
  1. Avatim
    Avatim avatar
    1 posts
    Member since:
    Aug 2014

    Posted 29 Aug 2014 Link to this post

    Hi all.

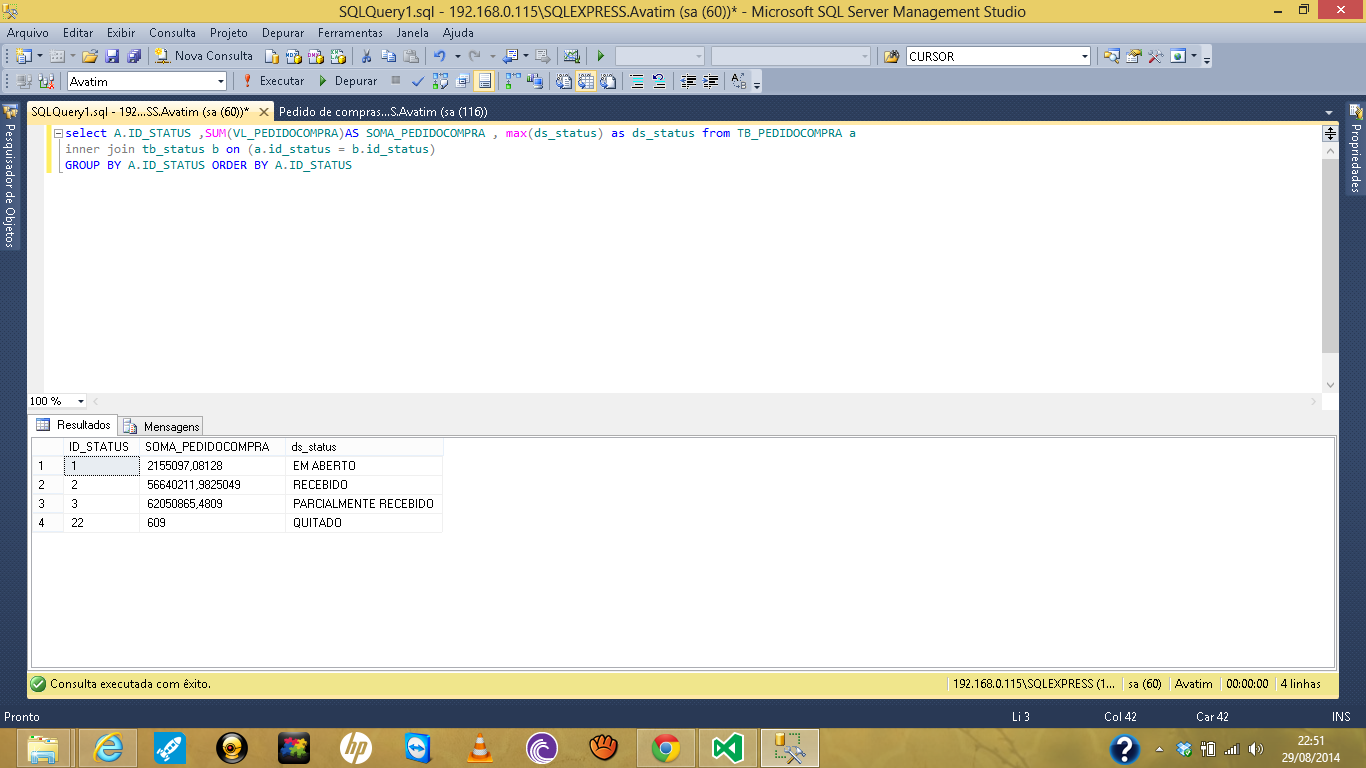

    First Pick shows my query that inner joins.

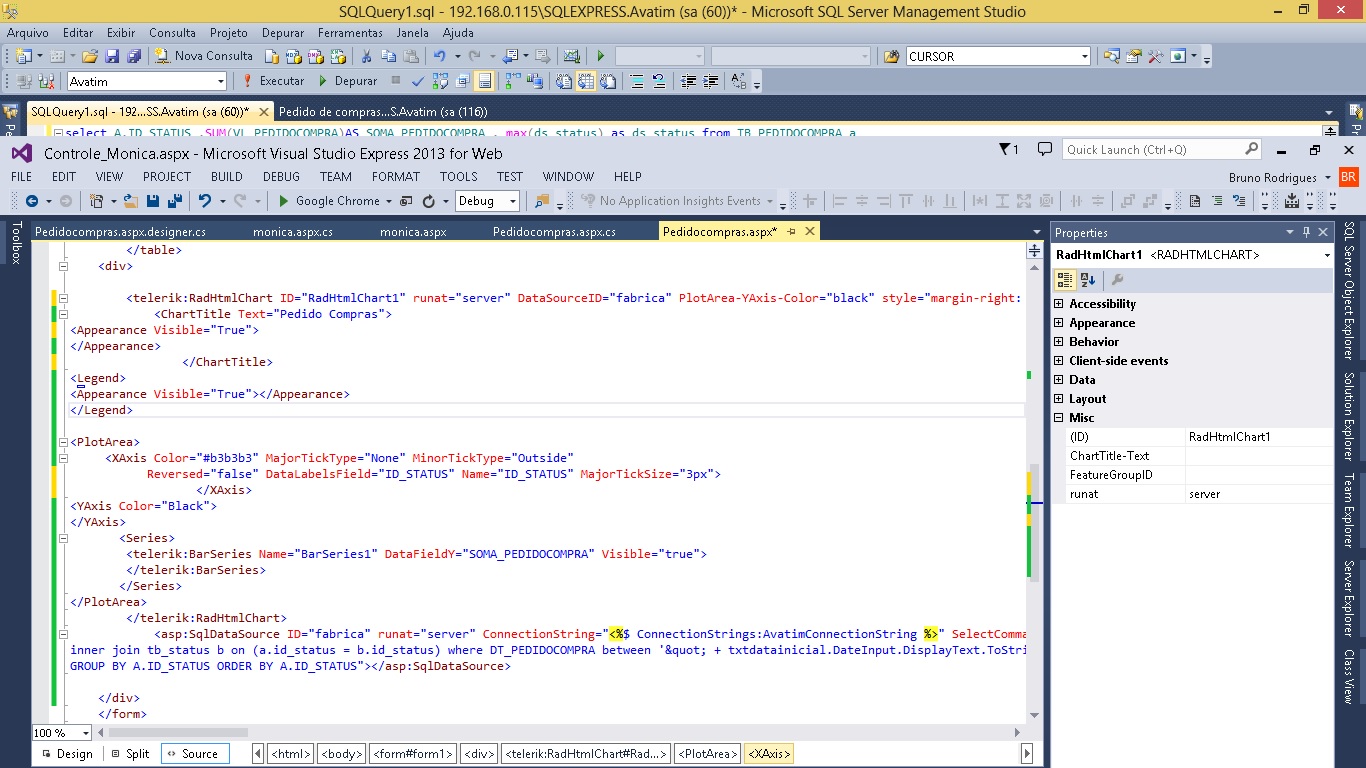

    Than i Bind the variable to the radhtmlchart.

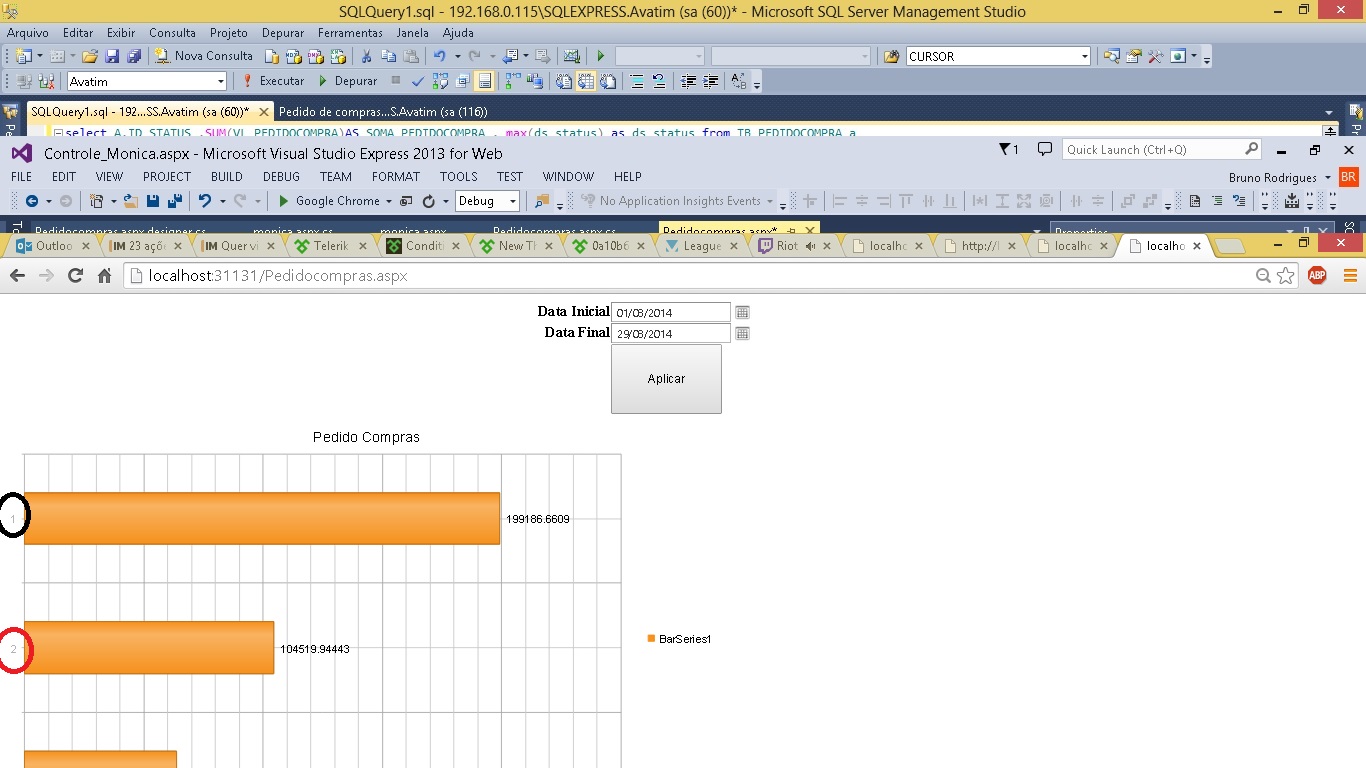

    It keeps showing the label description id_status instead of ds_status.

    Any comments on how to solve this ?

    Looking forward to your reply.

  2. Danail Vasilev
    Danail Vasilev avatar
    1476 posts

    Posted 01 Sep 2014 Link to this post

    Hi Avatim,

    I have already replied to the support ticket that was opened by you on this regard, so that I paste my answer below:

    From the provided snap shots it seems that the XAxis.DataLabelsField property is set to the "ID_STATUS" data source field which has 1, 2, 3 and 22 values - the ones plotted on the chart. I can suggest that you try to change the property to the "ds_status" data source field name.

    If the above step, however, do not help it would be better to send us a small mockup of the problematic page, so that we can make an investigation locally.

    Danail Vasilev
