GridViewComboBoxColumn and HierarchyChildTemplate

3 posts, 1 answers
  1. david ocasio
    david ocasio avatar
    22 posts
    Member since:
    Apr 2006

    Posted 06 Nov 2009 Link to this post

    Not sure if this is a bug or not
    I suspect it is

    I have a Radgrid in a HierarchyChildTemplate with a comboxcolumn

    it order to get the Itemssource to the comboboxolumn for the lookup i have hooked the
    loaded event of the grid and load the itemsource like so

                <telerikGridView:RadGridView.HierarchyChildTemplate>
                    <DataTemplate>
                        <telerikGridView:RadGridView ItemsSource="{Binding lstTestClass}" AutoGenerateColumns="False" Loaded="SetUpChildComboBox">
                            <telerikGridView:RadGridView.Columns >
                                <telerikGridView:GridViewSelectColumn></telerikGridView:GridViewSelectColumn>
                                <telerikGridView:GridViewDataColumn DataMemberBinding="{Binding iQty,Mode=TwoWay}" />
                                <telerikGridView:GridViewComboBoxColumn UniqueName="ComboCol"  DisplayMemberPath="NameState" SelectedValueMemberPath="IDState" DataMemberBinding="{Binding IDState}" />
                            </telerikGridView:RadGridView.Columns>
                        </telerikGridView:RadGridView>
                    </DataTemplate>
                </telerikGridView:RadGridView.HierarchyChildTemplate>


        Private Sub SetUpChildComboBox(ByVal sender As ObjectByVal e As System.Windows.RoutedEventArgs)
            Dim RadGridview As RadGridView = DirectCast(sender, RadGridView)
            DirectCast(RadGridview.Columns("ComboCol"), GridViewComboBoxColumn).ItemsSource = collStates
        End Sub


    Problem is the initial value of that column is not shown even though it is in the data.

    If i click in the cell to edit
    The value is already selected (from the combo box)
    and when leaving edit mode is now shown in the cell.

    so the questions:

    1. am i hooking the wrong event
    2. is there another/better  way to do it
    3. is it a bug

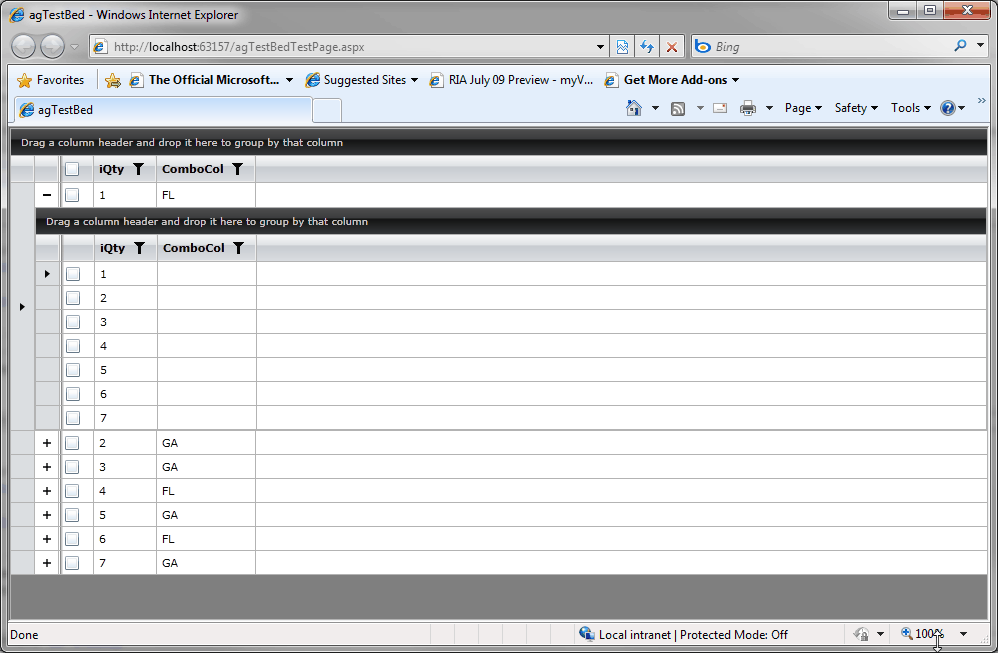

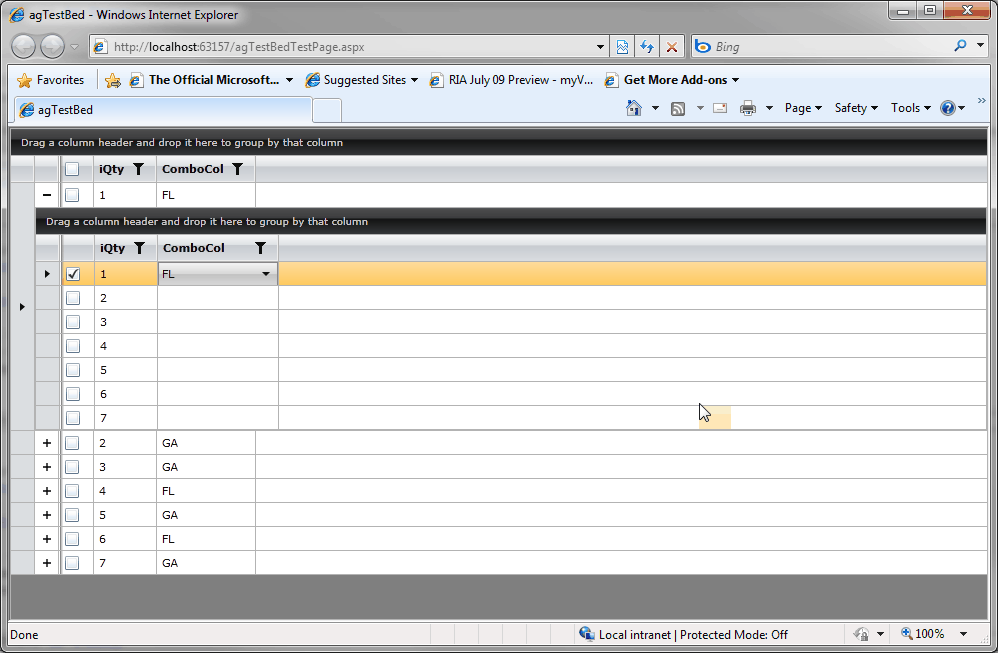

    i have included screenshots of  the problem.

    thanks
    dco

    below find the test project i made to highlight and test the issue.

    <UserControl xmlns:telerikGridView="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.GridView"  x:Class="agTestBed.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480">
      <Grid x:Name="LayoutRoot">
            <telerikGridView:RadGridView x:Name="TestGrid" SelectionMode="Multiple" AutoGenerateColumns="False">
                <telerikGridView:RadGridView.HierarchyChildTemplate>
                    <DataTemplate>
                        <telerikGridView:RadGridView ItemsSource="{Binding lstTestClass}" AutoGenerateColumns="False" Loaded="SetUpChildComboBox">
                            <telerikGridView:RadGridView.Columns >
                                <telerikGridView:GridViewSelectColumn></telerikGridView:GridViewSelectColumn>
                                <telerikGridView:GridViewDataColumn DataMemberBinding="{Binding iQty,Mode=TwoWay}" />
                                <telerikGridView:GridViewComboBoxColumn UniqueName="ComboCol"  DisplayMemberPath="NameState" SelectedValueMemberPath="IDState" DataMemberBinding="{Binding IDState}" />
                            </telerikGridView:RadGridView.Columns>
                        </telerikGridView:RadGridView>
                    </DataTemplate>
                </telerikGridView:RadGridView.HierarchyChildTemplate>
                <telerikGridView:RadGridView.Columns>
                    <telerikGridView:GridViewSelectColumn></telerikGridView:GridViewSelectColumn>
                    <telerikGridView:GridViewDataColumn DataMemberBinding="{Binding iQty,Mode=TwoWay}" ></telerikGridView:GridViewDataColumn>
                    <telerikGridView:GridViewComboBoxColumn UniqueName="ComboCol"  DisplayMemberPath="NameState" SelectedValueMemberPath="IDState" DataMemberBinding="{Binding IDState}" />
                </telerikGridView:RadGridView.Columns>
            </telerikGridView:RadGridView>
      </Grid>
    </UserControl>

    Imports System.Windows.Data
    Imports System.Windows.Ria.Data
    Imports Telerik.Windows.Controls
    Imports Telerik.Windows.Data
    Imports System.ComponentModel
    Imports System.ComponentModel.DataAnnotations
    Imports System.Collections.ObjectModel
    Imports System.Runtime.CompilerServices

    Partial Public Class MainPage
        Inherits UserControl

        Public Sub New()
            InitializeComponent()
        End Sub

        Public CollTestclass As New ObservableCollection(Of TestClass)
        Public collStates As New ObservableCollection(Of State)

        Private Sub MainPage_Loaded(ByVal sender As ObjectByVal e As System.Windows.RoutedEventArgs) Handles Me.Loaded

            'create states list data
            collStates.Add(New State With {.IDState = "0", .NameState = "FL"})
            collStates.Add(New State With {.IDState = "1", .NameState = "GA"})

            ' create test data
            CollTestclass.Add(New TestClass With {.iQty = 1, .IDState = "0", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 2, .IDState = "1", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 3, .IDState = "1", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 4, .IDState = "0", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 5, .IDState = "1", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 6, .IDState = "0", .lstTestClass = Makeitup()})
            CollTestclass.Add(New TestClass With {.iQty = 7, .IDState = "1", .lstTestClass = Makeitup()})

            ' set child table definition
            Dim detailDefinition As New GridViewTableDefinition()
            detailDefinition.Relation = New PropertyRelation("lstTestClass")
            TestGrid.TableDefinition.ChildTableDefinitions.Add(detailDefinition)

            ' set up main grid datasources
            DirectCast(TestGrid.Columns("ComboCol"), GridViewComboBoxColumn).ItemsSource = collStates
            TestGrid.ItemsSource = CollTestclass
        End Sub

        Public Function Makeitup() As ObservableCollection(Of TestClass)
            Dim CollTestclass As New ObservableCollection(Of TestClass)
            CollTestclass.Add(New TestClass With {.iQty = 1, .IDState = "0"})
            CollTestclass.Add(New TestClass With {.iQty = 2, .IDState = "1"})
            CollTestclass.Add(New TestClass With {.iQty = 3, .IDState = "1"})
            CollTestclass.Add(New TestClass With {.iQty = 4, .IDState = "0"})
            CollTestclass.Add(New TestClass With {.iQty = 5, .IDState = "1"})
            CollTestclass.Add(New TestClass With {.iQty = 6, .IDState = "0"})
            CollTestclass.Add(New TestClass With {.iQty = 7, .IDState = "1"})
            Return CollTestclass
        End Function

        Private Sub SetUpChildComboBox(ByVal sender As ObjectByVal e As System.Windows.RoutedEventArgs)
            Dim RadGridview As RadGridView = DirectCast(sender, RadGridView)
            DirectCast(RadGridview.Columns("ComboCol"), GridViewComboBoxColumn).ItemsSource = collStates
        End Sub

        Private Sub TestGrid_DataLoaded(ByVal sender As ObjectByVal e As System.EventArgs) Handles TestGrid.DataLoaded
        End Sub

        Private Sub TestGrid_Loaded(ByVal sender As ObjectByVal e As System.Windows.RoutedEventArgs) Handles TestGrid.Loaded
        End Sub
    End Class

    Public Class State
        <Display(Name:="IDState", Description:="IDState")> _
        Public Property IDState() As String
            Get
                Return _IDState
            End Get
            Set(ByVal value As String)
                _IDState = value
            End Set
        End Property
        Protected _IDState As String


        <Display(Name:="NameState", Description:="NameState")> _
        Public Property NameState() As String
            Get
                Return _NameState
            End Get
            Set(ByVal value As String)
                _NameState = value
            End Set
        End Property
        Protected _NameState As String

    End Class

    Public Class TestClass
        Implements INotifyPropertyChanged

        Public Event PropertyChanged(ByVal sender As ObjectByVal e As System.ComponentModel.PropertyChangedEventArgs) Implements System.ComponentModel.INotifyPropertyChanged.PropertyChanged
        Private Sub FirePropertyChanged(ByVal [property] As String)
            If Not String.IsNullOrEmpty([property]) Then
                RaiseEvent PropertyChanged(MeNew PropertyChangedEventArgs([property]))
            End If
        End Sub

        <Display(Name:="iQty", Description:="iQty")> _
        Public Property iQty() As Integer
            Get
                Return _iQty
            End Get
            Set(ByVal value As Integer)
                _iQty = value
                FirePropertyChanged("iQty")
            End Set
        End Property
        Protected _iQty As Integer


        <Display(Name:="IDState", Description:="IDState")> _
        Public Property IDState() As String
            Get
                Return _IDState
            End Get
            Set(ByVal value As String)
                _IDState = value
                FirePropertyChanged("IDState")
            End Set
        End Property
        Protected _IDState As String


        <Display(Name:="lstTestClass", Description:="lstTestClass")> _
        Public Property lstTestClass() As ObservableCollection(Of TestClass)
            Get
                Return _lstTestClass
            End Get
            Set(ByVal value As ObservableCollection(Of TestClass))
                _lstTestClass = value
                FirePropertyChanged("lstTestClass")
            End Set
        End Property
        Protected _lstTestClass As ObservableCollection(Of TestClass)

    End Class


  2. Answer
    Pavel Pavlov
    Admin
    Pavel Pavlov avatar
    2039 posts

    Posted 11 Nov 2009 Link to this post

    Hello david ocasio,
    Thank you for sending such detailed illustration of the bug. It helped me to quickly isolate the problem.
    I have updated your Telerik points. The bug will be fixed for the upcoming Q3 ServicePack release.

    Meanwhile  I have found a workaround with your code.

    To make the combo work - please use the DataLoaded instead of the Loaded event of the nested RadGridView when setting the ItemsSource of the  combo column.

    Kind regards,
    Pavel Pavlov
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  3. DevCraft banner
  4. David Ocasio
    David Ocasio avatar
    147 posts
    Member since:
    Nov 2009

    Posted 12 Nov 2009 Link to this post

    Interestingly,

    you are correct in my test project
    changing it to the dataloaded event did work
    (after i remembered to change the event signature to eventargs instead of routedeventargs)

    but in my big project in did not work .
    instead the id started showing up.
    i am using your internal builds though so it may be that too

    anyway bottom line
    i changed the code to use templates instead
    embedded a regular combo box
    and that works fine

    i will wait for the service pack you mentioned to change it back  to the combo column

    thanks for your help
    dco
