GridView ColumnFilter option

19 posts, 0 answers
  1. Amit Patel
    Amit Patel avatar
    71 posts
    Member since:
    Sep 2009

    Posted 20 Apr 2011 Link to this post

    Hello,
    I have filter enabled for all of my grid view columns, and would like to change default filter option from "Is Equal to" to "Contains"  How can I achinve this?

    Thanks
    Amit
  2. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 21 Apr 2011 Link to this post

    Hello Amit Patel,

    You may customize the filtering control by creating one of your own and change the initial selected value inside the two combo boxes in the filter. It may be like follows:

    public class CustomizedFilteringControl : FilteringControl
        {
            public override void Prepare(GridViewBoundColumnBase column)
            {
                base.Prepare(column);

                var availableOperators = new List<FilterOperator>()
                {
                    FilterOperator.Contains,
                    FilterOperator.IsEqualTo,
                    FilterOperator.IsNotEqualTo,
                    FilterOperator.StartsWith,
                    FilterOperator.EndsWith,
                    FilterOperator.DoesNotContain,
                    FilterOperator.IsContainedIn,

                };

                var cbo1 = this.ChildrenOfType<RadComboBox>()
                .Where(b => b.Name == "PART_Filter1ComboBox")
                .FirstOrDefault();
                cbo1.SelectedValue = availableOperators.FirstOrDefault();
                cbo1.ItemsSource = availableOperators;

                var cbo2 = this.ChildrenOfType<RadComboBox>()
                .Where(b => b.Name == "PART_Filter2ComboBox")
                .FirstOrDefault();
                cbo2.SelectedValue = availableOperators.FirstOrDefault();
                cbo2.ItemsSource = availableOperators;
            }
        }


    You may define the filtering control for the required column in xaml, in the code-behind or during the AutoGeneratingColumn event of the grid:

    XAML:
    <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}">
                <telerik:GridViewDataColumn.FilteringControl>
                    <my:CustomizedFilteringControl />
                </telerik:GridViewDataColumn.FilteringControl>
    </telerik:GridViewDataColumn>

    C#:
    var nameColumn = (GridViewBoundColumnBase)this.clubsGrid.Columns["Name"];
    var customFilteringControl = new CustomizedFilteringControl();
    nameColumn.FilteringControl = customFilteringControl ;


    Greetings,
    Maya
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. DevCraft banner
  4. Dominik
    Dominik avatar
    38 posts
    Member since:
    Mar 2011

    Posted 31 Aug 2011 Link to this post

    HI

    The posted solution does not work properly. At first it seems ok but somehow but when you reopen the filter i have encountered the following problems:

    a) the displayed selection has changed
    b) the grid is apparently filtered by another selected that does neither matches the one displayed or originally set.

    This is an important issue for us as we are using the GridView control in combination with the domain datasource and ria services. The filter operators "IsContainedIn" and IsNotContained in will result in an exception. Please help.

    thanks in advance



    The following approach has the same problems
    public override void Prepare(GridViewBoundColumnBase column)
          {
              base.Prepare(column);

              if (column.DataType == typeof(string))
              // Set contains as default only for string data type of the gridview column
              {

                     var vm = this.DataContext as FilteringViewModel;
                  if (vm != null)
                  {
                      if (vm.AvailableActions.Contains(FilterOperator.IsNotContainedIn))
                      {
                          vm.AvailableActions.Remove(FilterOperator.IsNotContainedIn);
                      }
                      if (vm.AvailableActions.Contains(FilterOperator.IsContainedIn))
                      {
                          vm.AvailableActions.Remove(FilterOperator.IsContainedIn);
                      }
                  }
  5. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 31 Aug 2011 Link to this post

    Hi Dominik,

    You can remove the setting of the selected value of the combo box:

    var cbo1 = this.ChildrenOfType<RadComboBox>()
                .Where(b => b.Name == "PART_Filter1ComboBox")
                .FirstOrDefault();
    cbo1.ItemsSource = availableOperators;




    All the best,
    Maya
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  6. Dominik
    Dominik avatar
    38 posts
    Member since:
    Mar 2011

    Posted 05 Sep 2011 Link to this post

    Hi

    I almost thought that i have found the solution. Just temporarily store the value in a variable and reassign it at the end (makes kind of sense if there is a two-way binding between the viewmodel and the control):
    public class DefaultFilter : FilteringControl
       {
           public override void Prepare(GridViewBoundColumnBase column)
           {
               base.Prepare(column);

               if (column.DataType == typeof(string))
               // Set contains as default only for string data type of the gridview column
               {
                   var vm = this.DataContext as FilteringViewModel;
                   if (vm != null)
                   {

                       var filter1 = vm.Filter1.Operator; // save filter value in a variable as they are changed when bound to the combobox (probably a two-way binding)
                       var filter2 = vm.Filter2.Operator;

                       // approach recommended by telerik : http://www.telerik.com/community/forums/silverlight/gridview/gridview-columnfilter-option.aspx
                       var availableOperators = new List<FilterOperator>()
                                                    {
                                                        FilterOperator.IsEqualTo,
                                                        FilterOperator.IsNotEqualTo,
                                                        FilterOperator.StartsWith,
                                                        FilterOperator.EndsWith,
                                                        FilterOperator.Contains,
                                                        FilterOperator.DoesNotContain,
                                                    };

                       var comboBox1 = this.ChildrenOfType<RadComboBox>()
                           .Where(b => b.Name == "PART_Filter1ComboBox")
                           .FirstOrDefault();
                       comboBox1.SelectedValue = availableOperators.FirstOrDefault();
                       comboBox1.ItemsSource = availableOperators;



                       var comboBox2 = this.ChildrenOfType<RadComboBox>()
                           .Where(b => b.Name == "PART_Filter2ComboBox")
                           .FirstOrDefault();
                       comboBox2.SelectedValue = availableOperators.FirstOrDefault();
                       comboBox2.ItemsSource = availableOperators;

                       if (vm.Filter1.IsActive)
                       {
                           comboBox1.SelectedValue = filter1;
                       }
                       if (vm.Filter2.IsActive)
                       {
                           comboBox2.SelectedValue = filter2;
                       }


    However, this doews not fully work!!

    How to reproduce:
    - 1. Set filter settings (Filter 1: Equeals to a certain value, "OR"-Setting, Filter2: Equeals to another value) -> this will filter correctly
    - 2. Reopen filter-> filter will start to behave strangely: filtering in grid is going to be flawed. Close and reopen filter-> displayed values are wrong

    My guess is, that i would have to have to reapply not only the operator values to the two comboboxes but also all other values.
    How can i make the gridview filter correctly? To me, this seems to be a major issue. Filtering is a core functionality!

    Thanks in advance


    By the way: we are using Silverlight 4, Ria Services (which is why we had to remove the ContainIn-Stuff), and the latest release of telerik controls.
  7. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 05 Sep 2011 Link to this post

    Hi Dominik,

    May you clarify why the suggested approach is not appropriate for you and you want to extend its functionality ? What is the behavior you want to achieve ?


    Kind regards,
    Maya
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  8. Dominik
    Dominik avatar
    38 posts
    Member since:
    Mar 2011

    Posted 05 Sep 2011 Link to this post


    Hi

    If you use the adapted default filter (see my pasted code for the Prepare(GridViewBoundColumnBase column) method, you just have to set filtersettings (for filter 1 and filter 2) and then close and reopen the filter a couple of times and you will see that filtering does not work any longer. What do I have to do to make this work? It is actually pretty easy to reproduce.

    PS 1: We use ria services, silverlight 4 and the latest release of silverlight controls.


    PS 2:  Ive just seen that the Operators "IsContainedIn" and "IsNotContainedIn" now work also for if the grid is bound to a ria service method. This used to be different. This would allow us to go with the default filter, although i am not happy with it as the "contained in" operators are confusing to the user.
  9. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 08 Sep 2011 Link to this post

    Hi Dominik,

    Unfortunately, I am not quite sure why you are extending the functionality of the Prepare method in such a manner. What is the behavior that you want to get ?
    Indeed, the code provided by you will cause some undesired behavior, but in fact that is the expected one, since you are trying to force the setting of the SelectedValue of the RadComboBox-es. You need to leave that job to the filter itself. Thus once you filter and reopen the filtering control, the correct value will be displayed in the combo boxes.
    Considering the two operators - "Is contained in" and "Is not contained in" - their presence depends on the type of the property bound to the corresponding column, not on whether you are calling a particular method. Why do you consider them confusing, what will be the behavior you expect when using them ?


    Kind regards,
    Maya
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  10. Dominik
    Dominik avatar
    38 posts
    Member since:
    Mar 2011

    Posted 14 Sep 2011 Link to this post

    Hi

    I dont really think that the two operators - "Is contained in" and "Is not contained in" - are that confusing, but my customer and the people who have been testing (the endusers) seem to have problem with it.
    If there is a simple way of getting rid of them without any side effects, i would be glad. If this is not so easily possible, it is also ok.

    Greetings
  11. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 14 Sep 2011 Link to this post

    Hi Dominik,

    The way to go for the time being would be to create your own custom filtering control (just as illustrated in this forum thread). Still, I am sending you a sample project illustrating a working solution, implementing the suggested approach.




    Kind regards,
    Maya
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  12. Christoph
    Christoph avatar
    1 posts
    Member since:
    Nov 2011

    Posted 11 Nov 2011 Link to this post

    Thanks for that example it works great.

    But for some reason I somethimes do not see the filter funnel turned on when I filtered my data. This is specially annoying when you close the filter control because then you don't know which column you should clear to get all data again.

    I already checked the forum (e.g. http://www.telerik.com/community/forums/silverlight/gridview/force-the-funnel-icon-of-filtering-control-to-light-up.aspx) but could not yet find an answer how I can set the funnel manually which I don't think is a good solution but for the moment the only one I see.

    Thanks for your help. Cheers,
     christoph
  13. Joao Paulo Grassi
    Joao Paulo Grassi avatar
    98 posts
    Member since:
    Feb 2011

    Posted 13 Mar 2012 Link to this post

    Hy Maya.

    I have already created my custom Filter using your approach described here in this post. Today we've decided to Update or Controls to the newest version (Q1 2012). Now I'm facing some problems, I saw at the documentation that you need to do some changes in this new version, but i couldn't manage to found a solution just reading there. Would you please provide some way to fix the Filtering in this new version? Here is my code:

    public class CustomFilteringControl : FilteringControl
        {
            public override void Prepare(GridViewColumn gridcolumn)
            {
                base.Prepare(gridcolumn);

                var vm = this.DataContext as FilteringViewModel;

                GridViewBoundColumnBase column = gridcolumn as GridViewBoundColumnBase;

                if (vm != null)
                {
                    if (!vm.Filter1.IsActive)
                    {
                        if (column.DataType.ToString().Contains("System.Int"))
                        {
                            vm.Filter1.Operator = FilterOperator.IsEqualTo;
                        }
                        else
                        {
                            vm.Filter1.Operator = FilterOperator.Contains;
                        }
                    }

                    if (!vm.Filter2.IsActive)
                    {
                        if (column.DataType.ToString().Contains("System.Int"))
                        {
                            vm.Filter2.Operator = FilterOperator.IsEqualTo;
                        }
                        else
                        {
                            vm.Filter2.Operator = FilterOperator.Contains;
                        }
                    }
                }
            }
        }

    Thanks.
  14. Rossen Hristov
    Admin
    Rossen Hristov avatar
    2478 posts

    Posted 13 Mar 2012 Link to this post

    Hello,

    I have some very good news. There is no longer a need to inherit the stock FilteringControl simply to change the default operator. That is just too complex.

    RadGridView has an event called FilterOperatorsLoading. In the event arguments you have the column for which the operators are being loaded. You can remove some of them if you want to. You can also specify the default operator to be selected when the end-user opens the filtering control. It's all there in the event arguments.

    Let me know if there are problems.

    Greetings,
    Ross
    the Telerik team
    Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
  15. Joao Paulo Grassi
    Joao Paulo Grassi avatar
    98 posts
    Member since:
    Feb 2011

    Posted 13 Mar 2012 Link to this post

    Fantastic!
    Thank you Ross for your quick response, with this new event i was able to set a default filter in a much easier way, just perfect.

    Maybe you guys can update the documentation for further orientation, will help a lot of people.

    Best regards.



  16. Reimund
    Reimund avatar
    9 posts
    Member since:
    Feb 2011

    Posted 03 Apr 2012 Link to this post

    the example code works great, except for the first call.

    It would be better to change the order  of the following lines
    cbo1.SelectedValue = availableOperators.FirstOrDefault();
    cbo1.ItemsSource = availableOperators;

    to
     cbo1.ItemsSource = availableOperators;
          cbo1.SelectedValue = availableOperators.FirstOrDefault();


    Same change for cbo2 too.

    Reimund
  17. David Ocasio
    David Ocasio avatar
    147 posts
    Member since:
    Nov 2009

    Posted 19 Apr 2012 Link to this post

    bug report

    the defaults are not honored if you hit the clear filters button.
    Private Sub RadGridView_FilterOperatorsLoading(sender As System.Object, e As Telerik.Windows.Controls.GridView.FilterOperatorsLoadingEventArgs)
        If e.Column.UniqueName = "Message" Then
            e.DefaultOperator1 = Telerik.Windows.Data.FilterOperator.Contains
            e.DefaultOperator2 = Telerik.Windows.Data.FilterOperator.DoesNotContain
        End If
    End Sub

  18. Rossen Hristov
    Admin
    Rossen Hristov avatar
    2478 posts

    Posted 20 Apr 2012 Link to this post

    Hi,

    Can you please tell us the exact version that you are using?

    Regards,
    Ross
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  19. David Ocasio
    David Ocasio avatar
    147 posts
    Member since:
    Nov 2009

    Posted 20 Apr 2012 Link to this post

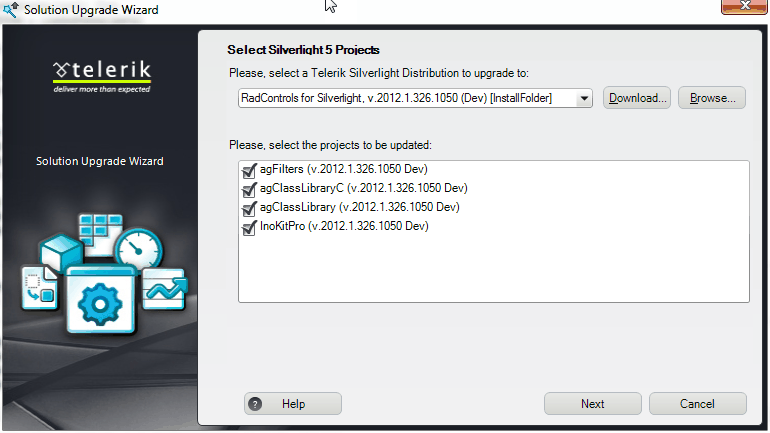

    latest released
    2012.1.326.1050

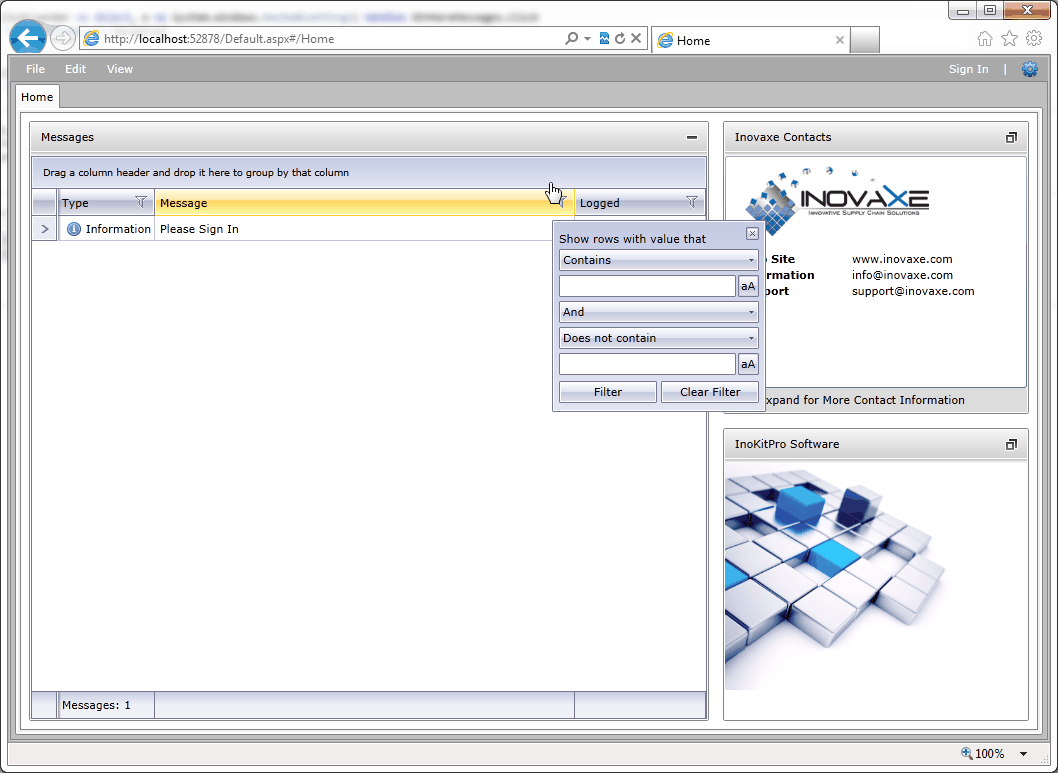

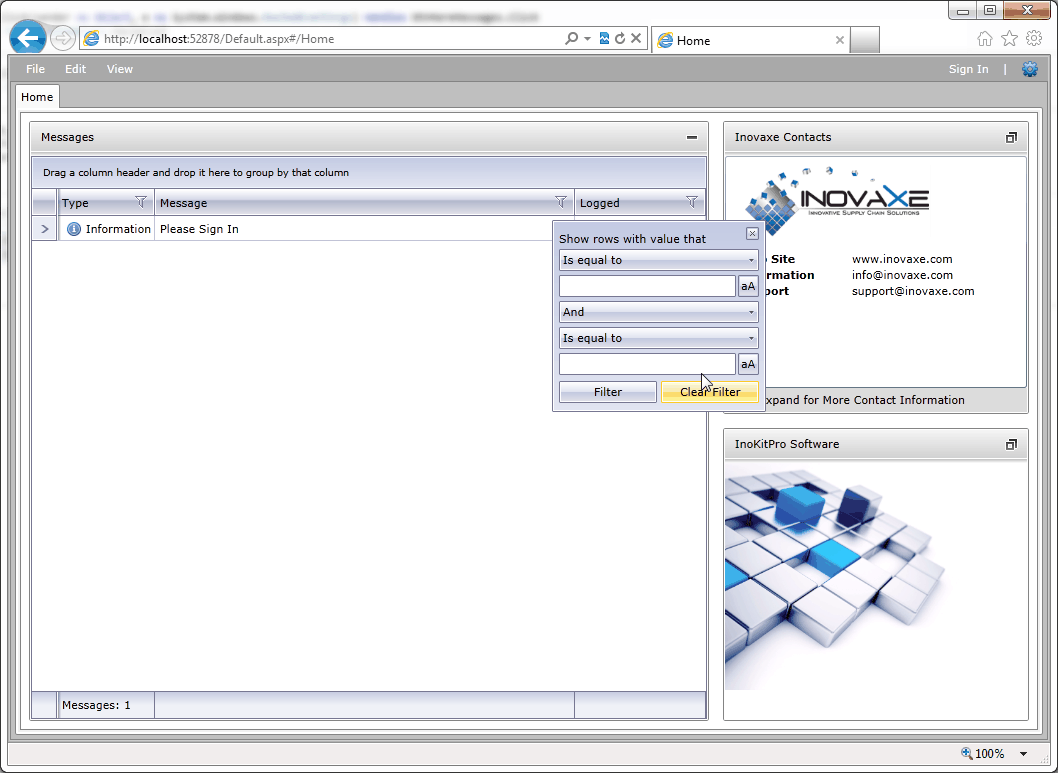

    Included snapshot for your consumption
    lol.

    Thanks
    dco

  20. Rossen Hristov
    Admin
    Rossen Hristov avatar
    2478 posts

    Posted 23 Apr 2012 Link to this post

    Hello,

    We fixed the issue and it will be working properly in the next Latest Internal Build.

    Kind regards,
    Ross
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
