Gridlines on reports

7 posts, 1 answers
  1. Andy Green
    Andy Green avatar
    342 posts
    Member since:
    Aug 2008

    Posted 17 Jul 2009 Link to this post

    How do I set up gridlines so it looks like the data is in a table with lines. Like Excel. I've search the docs and forums but cant find what I'm looking for.

    Long week, sorry if this doesn't make sense.

    Andy
  2. Answer
    Steve
    Admin
    Steve avatar
    10941 posts

    Posted 20 Jul 2009 Link to this post

    Hello Andy Green,

    Generally speaking there are two ways you can "simulate" gridlines for the report:
    • using dock/anchor along with applying solid border for the textbox items (more info here)
    • use the shape item to create horizontal/vertical lines in the report
    However the above do not really make sense if you're aiming for table layout. In such case simply use our table item and set borders to the textboxes in the table cells.
    Best wishes,
    Steve
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Check out the tips for optimizing your support resource searches.
  3. DevCraft banner
  4. Andy Green
    Andy Green avatar
    342 posts
    Member since:
    Aug 2008

    Posted 20 Jul 2009 Link to this post

    Great - Thanks fro your time.

    Andy
  5. jeremy
    jeremy avatar
    23 posts
    Member since:
    May 2011

    Posted 31 May 2011 Link to this post

    Hi,

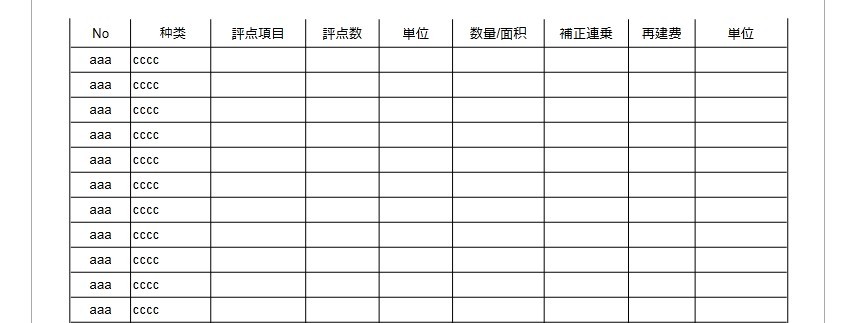

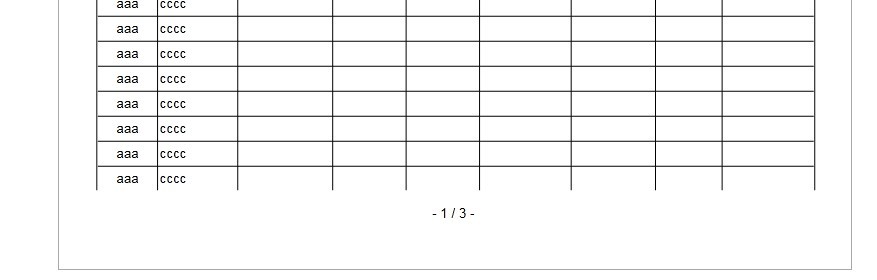

        I use our table item and set borders to the textboxes in the table cells. But there is a problem that the bottom border of the first page, the top border of the last page and the top and bottom border of the middles pages are not visible. How can I solve it. The attach files is some information.

    Best Regards.
    Jeremy
  6. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 01 Jun 2011 Link to this post

    Hello Jeremy,

    This behavior is by design and cannot be changed. There are no borders because the table item continues to another page i.e. if there is a border, that would indicate that the table item has finished, which is not the case. In fact competitor products behave in the same manner e.g. SSRS.

    Kind regards,
    Steve
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  7. jeremy
    jeremy avatar
    23 posts
    Member since:
    May 2011

    Posted 02 Jun 2011 Link to this post

    Hi Steve,
         I agree with your concept that " if there is a border, that would indicate that the table item has finished, which is not the case".  However , in general, every report include PageFooter which could be set to  indicate  the index of page. It also can tell the user whether the table item has finished. I think  the developers have power to control  the border of table according to requirement.

    Kind Regards
    Jeremy.
  8. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 02 Jun 2011 Link to this post

    Hi Jeremy,

    The fact that there is a next page is not related to whether the table item is over or not. Your report layout might contain various report items other than Table, so there might be pages without Table. Currently it is not possible to detect where a databound Table would end (i.e. how many pages it would occupy).

    Regards,
    Steve
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
