Grid + Subgrid : How to create calculated columns ?

2 posts, 0 answers
  1. François
    François avatar
    1 posts
    Member since:
    Mar 2016

    Posted 02 Sep Link to this post

    Hello

    I implemented a kendo grid with subgrid on row expansion.

    On the grid and subgrids with numeric values :

    • some columns are editable (ex: columns A and B)
    • some columns are readonly (ex: column C)
    • some columns are readonly and calculated (ex: column D = A + B + C)

    The purpose is to update the UI without calling a service.

    To update values in calculated columns, I set dataItems. The problem is that it renders the main grid and then the subgrids and I lose modifications I made on the subgrids... I'm not sure if there's something I can do, so if someone has an idea...

    Note:

    • I tried to use pushUpdate() on the dataSource instead of set() on dataItems, it does the same
    • To be able to update calculated cells by modifying the dataSource, I put these columns as editable and I call this.closeCell() to prevent edition
    •  Modifying the <td> content manually is not an option, because the numeric content format depends of the culture

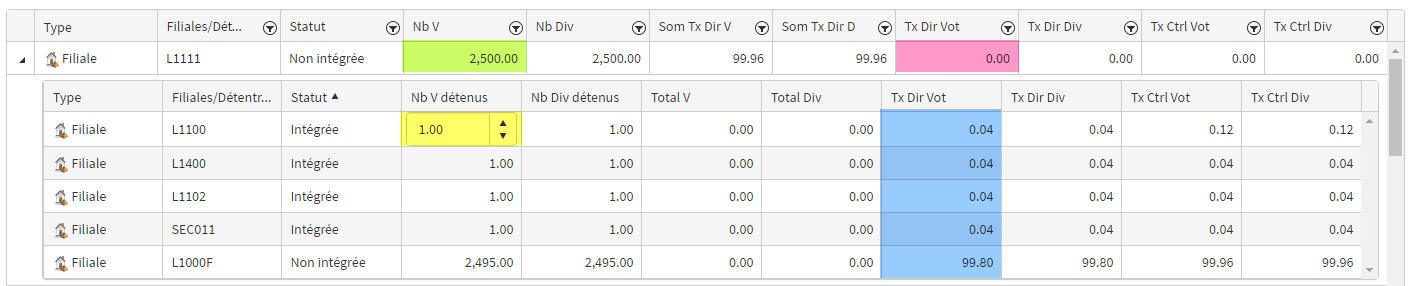

    See the illustration (fake data) :

    • Blue = Yellow/Green (when blue and yellow are in the same line)
    • Pink = Sum(Blue)



    01.// custom editor on an editable cell.
    02.column.editor = (container: JQuery, options: kendo.ui.GridColumnEditorOptions): void => {
    03.  [...]
    04.
    05.let element = $('<input type="text" />')
    06.  .appendTo(container)
    07.  .kendoNumericTextBox({
    08.    change: (e) => {
    09.      [...]
    10.
    11.      // updates the dataItem of the edited row.
    12.      let model = grid.dataItem(row);
    13.      model.set(options.field, e.sender.value());
    14.
    15.      this.calculateFields([...]);
    16.    },
    17.    value: options.model.get(options.field),
    18.    format: '{0:n2}',
    19.    min: 0
    20.  });
    21.
    22.  [...]
    23.};
    24.
    25.
    26.private calculateFields([...]) {
    27.
    28.  [...]
    29.
    30.  let mainDataItem = mainGrid.dataSource.getByUid(mainUid);
    31.  let subDataItems = subGrid.dataSource.data();
    32.
    33.  // the main grid is refreshed and all edited values the subgrid are lost...
    34.  mainDataItem.set('main-field1', 0);
    35.  mainDataItem.set('main-field2', 0);
    36.
    37.  subDataItems
    38.    .forEach(item => {
    39.      let o = item as kendo.data.Model;
    40.
    41.      // edited values are already lost, so it's useless...
    42.      o.set('sub-field11',
    43.        100 * o.get('sub-field10') / mainDataItem.get('vot'));
    44.      o.set('sub-field21',
    45.        100 * o.get('sub-field20') / mainDataItem.get('div'));
    46.
    47.      // refreshes the main grid again !
    48.      mainDataItem.set('main-field1',
    49.        mainDataItem.get('main-field1') + o.get('sub-field11'));
    50.      mainDataItem.set('main-field2',
    51.        mainDataItem.get('main-field2') + o.get('sub-field21'));
    52.    });
    53.}

  2. Stefan
    Admin
    Stefan avatar
    270 posts

    Posted 05 Sep Link to this post

    Hello François,

    I can suggest checking similar threads in our forum, which are showing how the template can be used for calculated fields in sub-grid. The equivalent of the suggested ClientTemplate is the columns.template property of the Grid:

    http://www.telerik.com/forums/asp-net-kendo-ui-grid-calculated-column

    http://www.telerik.com/forums/calculated-cells

    http://docs.telerik.com/kendo-ui/api/javascript/ui/grid#configuration-columns.template

    Another option will be to execute the custom logic on the dataBound event of the sub-grid, as this will ensure that the modifications will not be lost:

    http://docs.telerik.com/kendo-ui/api/javascript/ui/grid#events-dataBound

    If this does not help you to achieve the desired result, please send a fully runnable example so I can provide suggestions best suited for your implementation.

    Regards,
    Stefan
