Grid Export to PDF - Can't override Times New Roman Font

5 posts, 0 answers
  1. Kellie
    Kellie avatar
    29 posts
    Member since:
    Feb 2009

    Posted 09 Dec 2010 Link to this post

    I have been unable to successfully override the Times New Roman font in my PDF.

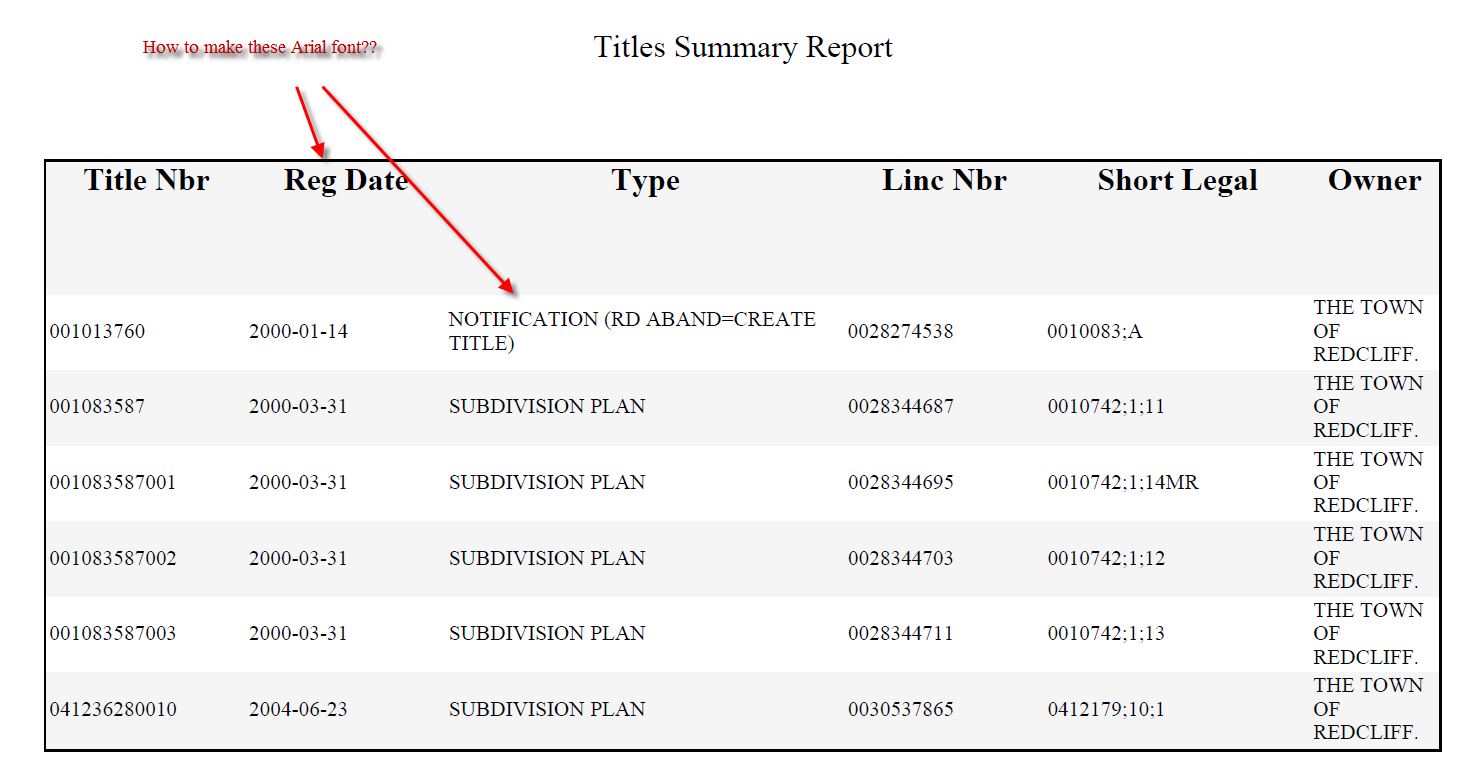

    A screen shot of the PDF is attached.

    Here is my raw HTML showing the newly applied styles but the font family, arial, is not getting applied to the PDF!

    <table cellspacing="0" border="0" id="RadGridSearchResults_ctl00" style="width:100%;table-layout:auto;empty-cells:show;">
        <colgroup>
            <col style="width:75px" />
            <col style="width:75px" />
            <col style="width:150px" />
            <col style="width:75px" />
            <col style="width:100px" />
            <col  />
        </colgroup>
    <thead>
            <tr style="background-color:WhiteSmoke;border-bottom-style:solid;border-bottom-width:1.5px;border-bottom-color:LightGrey;height:50px;">
                <th scope="col" style="font-weight:bold;font-family:arial;">Title Nbr</th><th scope="col" style="font-weight:bold;font-family:arial;">Reg Date</th><th scope="col" style="font-weight:bold;font-family:arial;">Type</th><th scope="col" style="font-weight:bold;font-family:arial;">Linc Nbr</th><th scope="col" style="font-weight:bold;font-family:arial;">Short Legal</th><th scope="col" style="font-weight:bold;font-family:arial;">Owner</th>
            </tr>
        </thead><tbody>
        <tr style="background-color:White;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">001013760</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2000-01-14
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        NOTIFICATION (RD ABAND=CREATE TITLE)
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0028274538
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0010083;A
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr><tr style="background-color:WhiteSmoke;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">001083587</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2000-03-31
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        SUBDIVISION PLAN
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0028344687
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0010742;1;11
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr><tr style="background-color:White;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">001083587001</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2000-03-31
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        SUBDIVISION PLAN
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0028344695
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0010742;1;14MR
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr><tr style="background-color:WhiteSmoke;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">001083587002</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2000-03-31
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        SUBDIVISION PLAN
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0028344703
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0010742;1;12
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr><tr style="background-color:White;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">001083587003</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2000-03-31
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        SUBDIVISION PLAN
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0028344711
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0010742;1;13
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr><tr style="background-color:WhiteSmoke;">
            <td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">041236280010</td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        2004-06-23
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        SUBDIVISION PLAN
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0030537865
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        0412179;10;1
                    </td><td style="text-align:left;vertical-align:middle;font-size:8pt;font-family:arial;">
                        THE TOWN OF REDCLIFF.
                    </td>
        </tr>
        </tbody>

    </table>


    Here is my code that is applying the styles. All of the styles work EXCEPT for the font-family style. How to fix?

    protected void RadGridSearchResults_ItemCreated(object sender, GridItemEventArgs e)
    {
        if (isPdfExport)
        {
            if (e.Item != null)
            {
                if (e.Item.ItemType == GridItemType.AlternatingItem)
                {
                    e.Item.Style["background-color"] = "WhiteSmoke";
                }
                else
                {
                    e.Item.Style["background-color"] = "White";
                }
                if (e.Item is GridHeaderItem)
                {
                    var headerItem = (GridHeaderItem)e.Item;
                    headerItem.Style["background-color"] = "WhiteSmoke";
                    headerItem.Style["border-bottom-style"] = "solid";
                    headerItem.Style["border-bottom-width"] = "1.5px";
                    headerItem.Style["border-bottom-color"] = "LightGrey";
                    headerItem.Style["height"] = "50px";
                    foreach (TableCell cell in headerItem.Cells)
                    {
                        cell.Style["font-weight"] = "bold";
                        cell.Style["font-family"] = "arial";
                    }
                }
                if (e.Item is GridDataItem)
                {
                    var item = (GridDataItem)e.Item;
                    foreach (TableCell cell in item.Cells)
                    {
                        cell.Style["text-align"] = "left";
                        cell.Style["vertical-align"] = "middle";
                        cell.Style["font-size"] = "8pt";
                        cell.Style["font-family"] = "arial";
                    }
                }
            }
        }
    }

  2. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 15 Dec 2010 Link to this post

    Hello Kellie,

    I reproduced the problem in a local test. Please note that we will need some time to investigate the issue. I will update this forum thread when I have more information about this problem.
    Thank you for your understanding.

    Regards,
    Daniel
    the Telerik team
    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 28 Dec 2010 Link to this post

    Hello Kellie,

    Please test the attached project on your end. Note that you have to use the latest version of RadControls for ASP.NET AJAX in order for this to work properly.
    Looking forward to hearing from you.

    Best regards,
    Daniel
    the Telerik team
    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.
  5. Kellie
    Kellie avatar
    29 posts
    Member since:
    Feb 2009

    Posted 30 Dec 2010 Link to this post

    While trying out your solution, I accidently got my old code to work by changing the case from "arial" to "Arial".

    cell.Style["font-family"] = "Arial";

    I also updated to version 2010.3.1215.35 so I'm not sure if updating it assisted with the solution or not.
    Is it normal that font-family would be case sensitive?
  6. Daniel
    Admin
    Daniel avatar
    4946 posts

    Posted 30 Dec 2010 Link to this post

    Hello Kellie,

    Yes, the font names should be set with their full name - the casing should be preserved.

    As to the other question - there was a font-related bug in the previous version of RadControls for ASP.NET AJAX.

    Let me know if you need more information.

    Regards,
    Daniel
    the Telerik team
    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.
