Glowing Button

4 posts, 1 answers
  1. Ali Rafiee
    Ali Rafiee avatar
    23 posts
    Member since:
    May 2010

    Posted 14 Sep 2011 Link to this post

    I've been using the standard buttons in my application, but there is a visual problem with using the standard button in RadPanelBarItem.  So I'm trying to switch to RadButton instead.

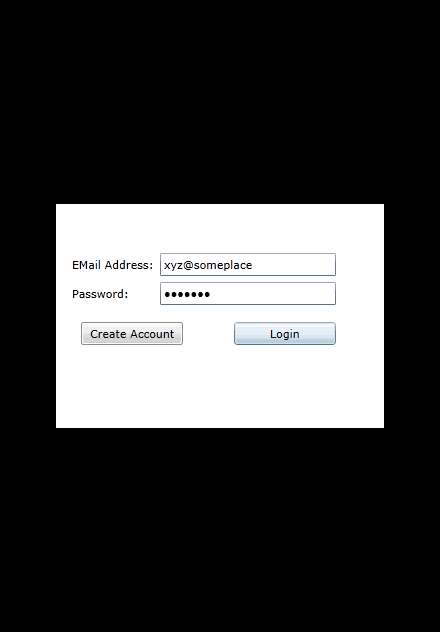

    One thing I've done with the standard buttons is that I've created a style that makes the button glow between its normal state and pressed state to indicate a button that must be pressed to proceed. (See the attached gif file).
    http://www.telerik.com/ClientsFiles/299776_GlowingButton.gif

    I'm looking at the style of the RadButton to see how I can implement the same thing there and I can't figure it out.  Can anyone help with that.

    Here is the style for the standard button:  The relavant code is in the "Normal" Visual State
    <Application.Resources>

        <Style x:Key="BlinkingButton" TargetType="Button">
            <Setter Property="Background" Value="#FF1F3B53"/>
            <Setter Property="Foreground" Value="#FF000000"/>
            <Setter Property="Padding" Value="3"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="BorderBrush">
                <Setter.Value>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                        <GradientStop Color="#FFA3AEB9" Offset="0"/>
                        <GradientStop Color="#FF8399A9" Offset="0.375"/>
                        <GradientStop Color="#FF718597" Offset="0.375"/>
                        <GradientStop Color="#FF617584" Offset="1"/>
                    </LinearGradientBrush>
                </Setter.Value>
            </Setter>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Button">
                        <Grid>
                            <VisualStateManager.VisualStateGroups>
                                <VisualStateGroup x:Name="CommonStates">
                                    <VisualState x:Name="Normal">
                                        <Storyboard>
                                            <ColorAnimation Duration="0:0:1.4" From="White" To="#FF6DBDD1" Storyboard.TargetProperty="(Border.Background).(SolidColorBrush.Color)" Storyboard.TargetName="Background" RepeatBehavior="Forever" AutoReverse="True"/>
                                            <DoubleAnimation Duration="0" To="1" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="BackgroundAnimation"/>
                                            <ColorAnimation Duration="0:0:1.4" From="White" To="#D8FFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[0].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient" RepeatBehavior="Forever" AutoReverse="True"/>
                                            <ColorAnimation Duration="0:0:1.4" From="White" To="#C6FFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[1].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient" RepeatBehavior="Forever" AutoReverse="True"/>
                                            <ColorAnimation Duration="0:0:1.4" From="White" To="#8CFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[2].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient" RepeatBehavior="Forever" AutoReverse="True"/>
                                            <ColorAnimation Duration="0:0:1.4" From="LightGray" To="#3FFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[3].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient" RepeatBehavior="Forever" AutoReverse="True"/>
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="MouseOver">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0" To="1" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="BackgroundAnimation"/>
                                            <ColorAnimation Duration="0" To="#F2FFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[1].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                            <ColorAnimation Duration="0" To="#CCFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[2].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                            <ColorAnimation Duration="0" To="#7FFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[3].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="Pressed">
                                        <Storyboard>
                                            <ColorAnimation Duration="0" To="#FF6DBDD1" Storyboard.TargetProperty="(Border.Background).(SolidColorBrush.Color)" Storyboard.TargetName="Background"/>
                                            <DoubleAnimation Duration="0" To="1" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="BackgroundAnimation"/>
                                            <ColorAnimation Duration="0" To="#D8FFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[0].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                            <ColorAnimation Duration="0" To="#C6FFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[1].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                            <ColorAnimation Duration="0" To="#8CFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[2].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                            <ColorAnimation Duration="0" To="#3FFFFFFF" Storyboard.TargetProperty="(Rectangle.Fill).(GradientBrush.GradientStops)[3].(GradientStop.Color)" Storyboard.TargetName="BackgroundGradient"/>
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="Disabled">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0" To=".55" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="DisabledVisualElement"/>
                                        </Storyboard>
                                    </VisualState>
                                </VisualStateGroup>
                                <VisualStateGroup x:Name="FocusStates">
                                    <VisualState x:Name="Focused">
                                        <Storyboard>
                                            <DoubleAnimation Duration="0" To="1" Storyboard.TargetProperty="Opacity" Storyboard.TargetName="FocusVisualElement"/>
                                        </Storyboard>
                                    </VisualState>
                                    <VisualState x:Name="Unfocused"/>
                                </VisualStateGroup>
                            </VisualStateManager.VisualStateGroups>
                            <Border x:Name="Background" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="White" CornerRadius="3">
                                <Grid Background="{TemplateBinding Background}" Margin="1">
                                    <Border x:Name="BackgroundAnimation" Background="#FF448DCA" Opacity="0"/>
                                    <Rectangle x:Name="BackgroundGradient">
                                        <Rectangle.Fill>
                                            <LinearGradientBrush EndPoint=".7,1" StartPoint=".7,0">
                                                <GradientStop Color="#FFFFFFFF" Offset="0"/>
                                                <GradientStop Color="#F9FFFFFF" Offset="0.375"/>
                                                <GradientStop Color="#E5FFFFFF" Offset="0.625"/>
                                                <GradientStop Color="#C6FFFFFF" Offset="1"/>
                                            </LinearGradientBrush>
                                        </Rectangle.Fill>
                                    </Rectangle>
                                </Grid>
                            </Border>
                            <ContentPresenter x:Name="contentPresenter" ContentTemplate="{TemplateBinding ContentTemplate}" Content="{TemplateBinding Content}" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Margin="{TemplateBinding Padding}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
                            <Rectangle x:Name="DisabledVisualElement" Fill="#FFFFFFFF" IsHitTestVisible="false" Opacity="0" RadiusY="3" RadiusX="3"/>
                            <Rectangle x:Name="FocusVisualElement" IsHitTestVisible="false" Margin="1" Opacity="0" RadiusY="2" RadiusX="2" Stroke="#FF6DBDD1" StrokeThickness="1"/>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
    </Application.Resources>


  2. Answer
    Zarko
    Admin
    Zarko avatar
    755 posts

    Posted 19 Sep 2011 Link to this post

    Hello Ali Rafiee,
    In order to achieve this glowing effect you'll have to edit the default RadButton template. You can do this in Blend or in VisualStudio.
    I've created a sample project with a glowing RadButton so could you please examine it and if you have more questions feel free to ask.

    Greetings,
    Zarko
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. DevCraft banner
  4. Ali Rafiee
    Ali Rafiee avatar
    23 posts
    Member since:
    May 2010

    Posted 20 Sep 2011 Link to this post

    Thank you very much Zarko.  It looks great!

    You might want to test it in a PanelBarItem.  It has a similar problem as the standard buttons when it is in a PanelBarItem.
  5. Zarko
    Admin
    Zarko avatar
    755 posts

    Posted 22 Sep 2011 Link to this post

    Hello Ali Rafiee,
    Thank you for the feedback, but I wasn't able to reproduce any problem with the RadButton inside a RadPanelBar.
    I've attached the project that was used for testing so you could examine it.

    Best wishes,
    Zarko
    the Telerik team
