Formatting numbers in List of GridViewComboBoxColumn

[Andreas]

Hi,

I want to format the numbers of a list in a GridViewComboBoxColumn. The selected value is formatted correctly (Formatstring of the column is set to {0:N0}). But when the filter dialog is opened, the possible values are not formatted (no thousand seperators, 4 digits). How can I format these values?

Thanks in advance,

Andreas

[Dess | Tech Support Engineer, Principal]

Hello Andreas,

Thank you for writing.

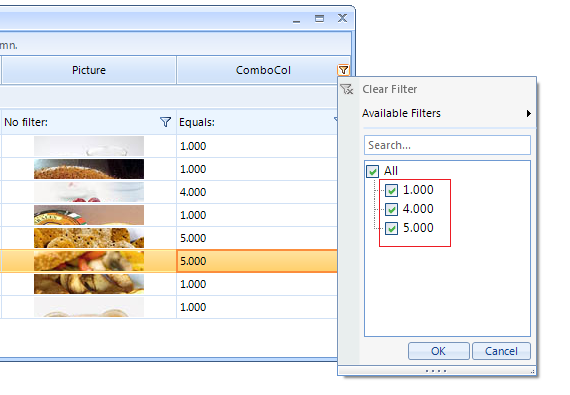

In order to format the nodes in the Excel-Like filter popup, it is necessary to handle the RadListFilterPopup.MenuTreeElement.TreeView.NodeFormatting event. Here is demonstrated a sample code snippet which result is illustrated in the attached screenshot:

public RadForm1()
{
    InitializeComponent();

    this.radGridView1.DataSource = this.categoriesBindingSource;

    GridViewComboBoxColumn comboCol = new GridViewComboBoxColumn("ComboCol");
    comboCol.DataSource = this.productsBindingSource;
    comboCol.DataType = typeof(int);
    comboCol.FormatString = "{0:N3}";
    comboCol.ValueMember = "ProductID";
    comboCol.DisplayMember = "ProductID";
    this.radGridView1.Columns.Add(comboCol);

    this.radGridView1.EnableFiltering = true;
    this.radGridView1.ShowHeaderCellButtons = true;
    this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;

    this.radGridView1.FilterPopupInitialized += radGridView1_FilterPopupInitialized;
}

private void radGridView1_FilterPopupInitialized(object sender, FilterPopupInitializedEventArgs e)
{
    RadListFilterPopup popup = e.FilterPopup as RadListFilterPopup;
    if (popup != null)
    {
        popup.MenuTreeElement.TreeView.NodeFormatting -= TreeView_NodeFormatting;
        popup.MenuTreeElement.TreeView.NodeFormatting += TreeView_NodeFormatting;
    }
}

int id = -1;

private void TreeView_NodeFormatting(object sender, TreeNodeFormattingEventArgs e)
{
    if (e.Node.Level == 1 && int.TryParse(e.NodeElement.ContentElement.Text, out id))
    {
        e.NodeElement.ContentElement.Text = string.Format("{0:N3}", id);
    }
}

private void RadForm1_Load(object sender, EventArgs e)
{
    this.productsTableAdapter.Fill(this.nwindDataSet.Products);
    this.categoriesTableAdapter.Fill(this.nwindDataSet.Categories);

    foreach (GridViewDataRowInfo row in this.radGridView1.Rows)
    {
        row.Cells["ComboCol"].Value = 1;
    }
}

If it is not the exact requirements please specify in details what is the exact goal that you are trying to achieve. Thus, we would be able to assist you further. Thank you in advance.

I hope this information helps. Should you have further questions I would be glad to help.

Regards,
Dess
Telerik by Progress

[Andreas]

Hello Dess,

it was the hint I needed, and it works fine. The filter options are now formatted correctly.

Thanks a lot,

Regards,

Andreas
