First and last label are hide in chart

4 posts, 0 answers
  1. Dario
    Dario avatar
    61 posts
    Member since:
    Apr 2011

    Posted 27 Dec 2011 Link to this post

    Hi to all,
    I'va found strange result, when I have many items in chart, the first and last item are shown unlabeled.
    I don't understand why this happens.

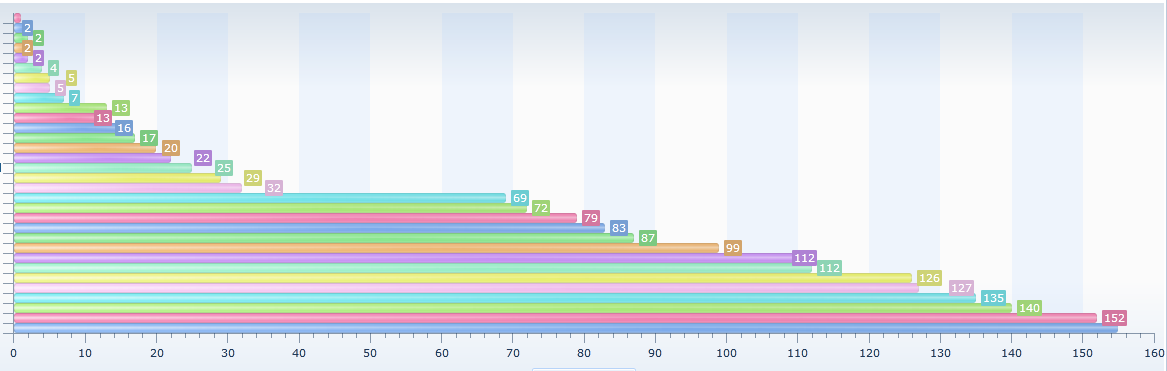

    I've attached screen-shot. How can I resolve this? Is it a bug or my error?

    Thx.
  2. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 27 Dec 2011 Link to this post

    Hi Dario,

    As I can see from your image attached the Labels overlap your bars since the bars are many and thin. I suggest that you provide additional space for the top-most and bottom-most labels to be visible. This can be done by setting manual range (AutoRange = false) to the XAxis as described in this help topic. Please note that the Axes are reversed when you have Horizontal oriented series i.e. XAxis is YAxis and vice versa.

    All the best,
    Evgenia
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. DevCraft banner
  4. Dario
    Dario avatar
    61 posts
    Member since:
    Apr 2011

    Posted 28 Dec 2011 Link to this post

    I forgot one thing (sorry), I'm not using XAxis but XCategory.

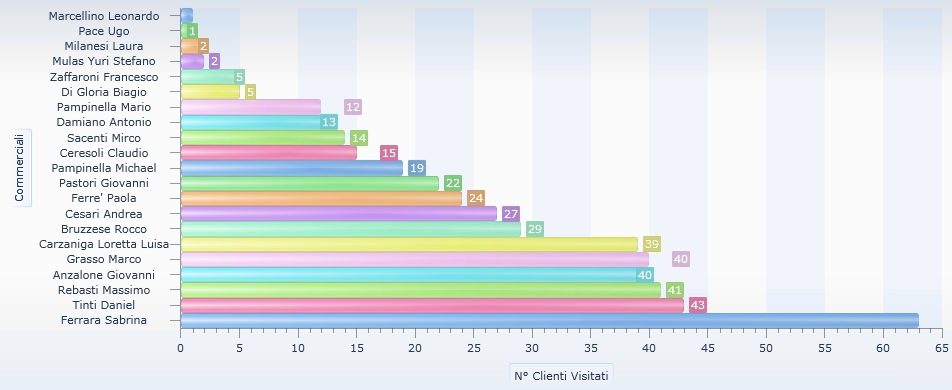

    This is xaml code of RadChart, in attach full chart with XCategory values. I tryed to change telerik:AxisX LayoutMode, but the resul not change.
    <telerik:RadChart Grid.Row="1" ItemsSource="{Binding FactTableForCustomers}" Language="it" MaxHeight="400" >
     <telerik:RadChart.FilterDescriptors>
      <telerik:ChartFilterDescriptor Member="ActionCode" Operator="IsEqualTo" Value="N100" />
     </telerik:RadChart.FilterDescriptors>
     <telerik:RadChart.SortDescriptors>
      <telerik:ChartSortDescriptor Member="VisiteCounts" SortDirection="Descending"/>
     </telerik:RadChart.SortDescriptors>
     <telerik:RadChart.SeriesMappings>
      <telerik:SeriesMapping>
       <telerik:SeriesMapping.SeriesDefinition>
        <telerik:HorizontalBarSeriesDefinition />
       </telerik:SeriesMapping.SeriesDefinition>
       <telerik:SeriesMapping.GroupingSettings>
        <telerik:GroupingSettings>
         <telerik:GroupingSettings.GroupDescriptors>
          <telerik:ChartGroupDescriptor Member="Salesperson"/>
         </telerik:GroupingSettings.GroupDescriptors>
        </telerik:GroupingSettings>
       </telerik:SeriesMapping.GroupingSettings>
       <telerik:SeriesMapping.ItemMappings>
        <telerik:ItemMapping DataPointMember="XCategory" FieldName="Salesperson" />
        <telerik:ItemMapping DataPointMember="YValue" FieldName="VisiteCounts" AggregateFunction="Max"/>
       </telerik:SeriesMapping.ItemMappings>
      </telerik:SeriesMapping>
     </telerik:RadChart.SeriesMappings>
     <telerik:RadChart.DefaultView>
      <telerik:ChartDefaultView >
       <telerik:ChartDefaultView.ChartLegend >
        <telerik:ChartLegend x:Name="CustomerChartLegend" Header="Salespersons" Visibility="Collapsed"/>
       </telerik:ChartDefaultView.ChartLegend>
       <telerik:ChartDefaultView.ChartArea>
        <telerik:ChartArea LegendName="CustomerChartLegend" LabelFormatBehavior="HumanReadable" EnableAnimations="False" ItemOverlapPercent = "100" ItemWidthPercent = "100">
         <telerik:ChartArea.AxisX>
          <telerik:AxisX LayoutMode="Inside" Title="Salespersons" />
         </telerik:ChartArea.AxisX>
         <telerik:ChartArea.AxisY>
          <telerik:AxisY ExtendDirection="None" Title="N° Customer Visited"/>
         </telerik:ChartArea.AxisY>
        </telerik:ChartArea>
       </telerik:ChartDefaultView.ChartArea>
      </telerik:ChartDefaultView>
     </telerik:RadChart.DefaultView>
    </telerik:RadChart>
  5. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 29 Dec 2011 Link to this post

    Hi Dario,

    In this case I suggest that you turn off the SmartLabels feature for your top-most and bottom-most labels to appear. Unfortunately that's a limitation of the SmartLabels feature - the labels should be as much away as possible from the border of the PlotArea.

    Greetings,
    Evgenia
    the Telerik team
