Filter Window Values Cutoff

5 posts, 0 answers
  1. jhudson
    jhudson avatar
    11 posts
    Member since:
    Apr 2008

    Posted 29 May 2015 Link to this post

    There seems to be some format issues with the base Filter Window. It either does not show the save buttons without scrolling, and applying filters where the side menu pops out almost always requires scrolling.

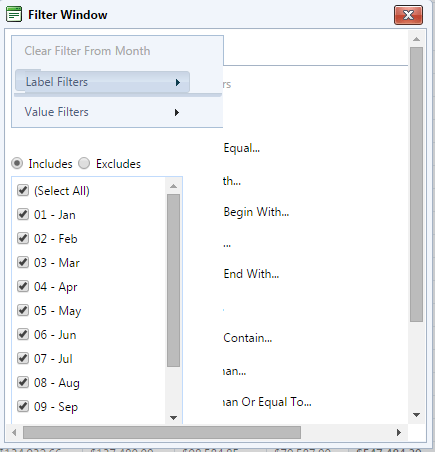

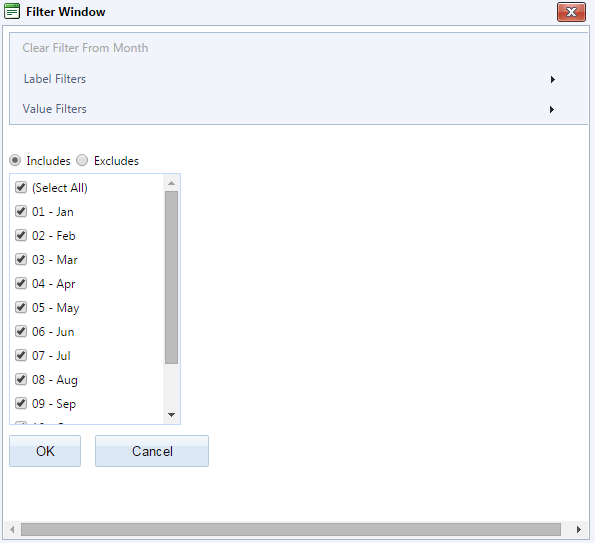

    I can set a height or min height and that seems to help with seeing the buttons, but the slide out filter menu even with a min width or width sometimes requires scrolling. And sometimes (but not always) the filter box "blue area" in the screenshot widens to take up the entire window area.

  2. jhudson
    jhudson avatar
    11 posts
    Member since:
    Apr 2008

    Posted 29 May 2015 Link to this post

    I'm sure you will ask so here is the code.



    <telerik:RadPivotGrid ID="reportPivotGrid" runat="server" OnNeedDataSource="reportPivotGrid_OnNeedDataSource" AllowSorting="True" Overlay="True"
             EnableToolTips="True" Skin="Windows7" ColumnHeaderZoneText="" DataHeaderZoneText="" ShowFilterHeaderZone="False" FilterWindow-Width="600"  FilterWindow-Height="550"
              UseQueryableDataProvider="True">
             <ClientSettings EnableFieldsDragDrop="false" Scrolling-SaveScrollPosition="True" />

             <PagerStyle ChangePageSizeButtonToolTip="Change Page Size" PageSizeControlType="RadComboBox"></PagerStyle>
                 <RowHeaderCellStyle Width="200px" />

             <Fields>
                 <telerik:PivotGridRowField DataField="Rep" ZoneIndex="1" Caption="Rep" SortOrder="Ascending">
                 </telerik:PivotGridRowField>
                 <telerik:PivotGridColumnField DataField="Year" SortOrder="Descending" Caption="Year">
                 </telerik:PivotGridColumnField>
                 <telerik:PivotGridColumnField DataField="Month" Caption="Month" SortOrder="Descending" >
                 </telerik:PivotGridColumnField>
                 <telerik:PivotGridAggregateField DataField="Sale" Aggregate="Sum" DataFormatString="{0:C}" Caption="Sales">
                     <TotalFormat Level="0" Axis="Rows" TotalFunction="NoCalculation" SortOrder="Ascending"></TotalFormat>
                 </telerik:PivotGridAggregateField>
             </Fields>


         </telerik:RadPivotGrid>

  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Maria Ilieva
    Admin
    Maria Ilieva avatar
    4017 posts

    Posted 03 Jun 2015 Link to this post

    Hello Joshua,

    I tried to replicate the described issue in a test application using your PivotGrid settings but to no avail. Find attached my test page and see what the difference in your case is.

    Regards,
    Maria Ilieva
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  5. jhudson
    jhudson avatar
    11 posts
    Member since:
    Apr 2008

    Posted 03 Jun 2015 in reply to Maria Ilieva Link to this post

    Really? Because even your demo applications have the same issue.

    http://demos.telerik.com/aspnet-ajax/pivotgrid/examples/firstlook/defaultcs.aspx

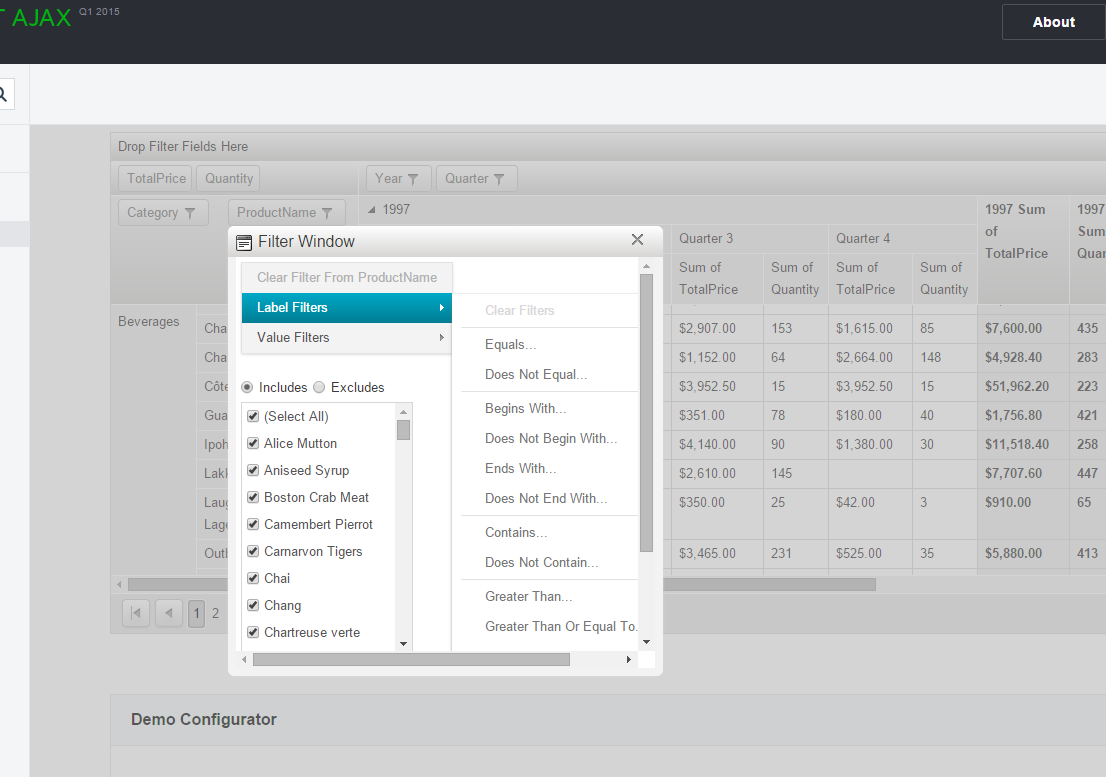

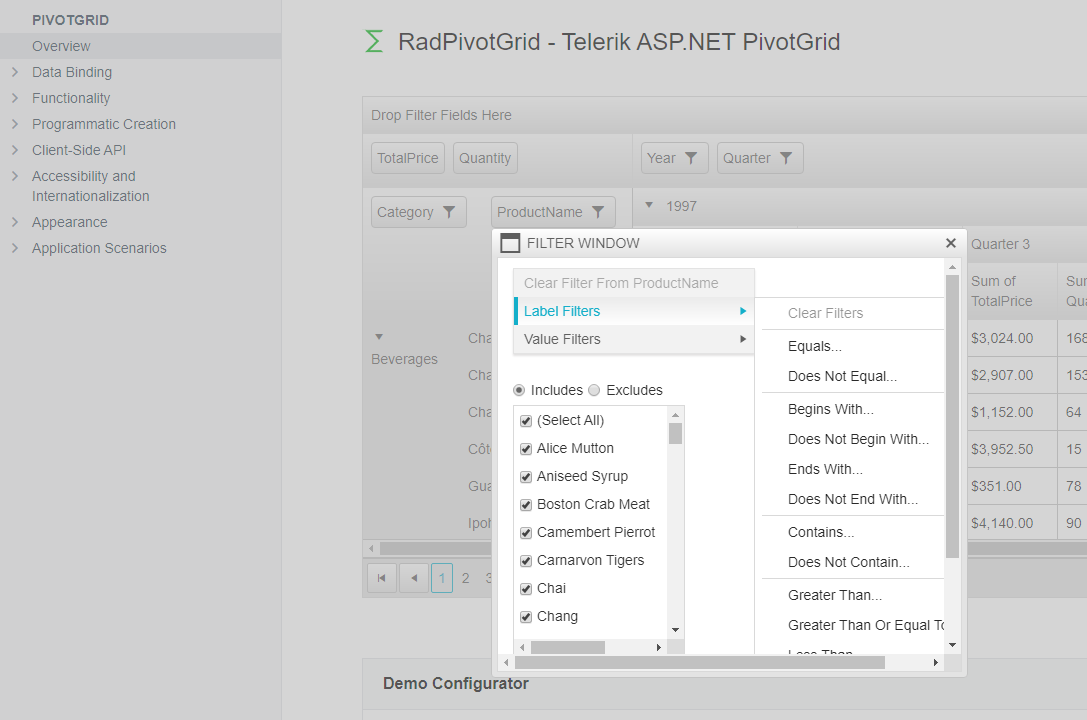

     Click on the filter icon for Product name, you will find that the save and cancel buttons are off screen. And if you hover over Label Filters or Value Filters the window is not wide enough to fit the popout menus that show.

     The other issue, is less consistent. I've seen it mostly when the window is towards the bottom of the screen, but in truth I'd be happy for a fix to the first one.

  6. Maria Ilieva
    Admin
    Maria Ilieva avatar
    4017 posts

    Posted 08 Jun 2015 Link to this post

    Hello,

    You can increase the Filter Window width and height using the approach below:
    <style type="text/css">
           .PivotGridWindow {
               width: 700px !important;
               height: 700px !important;
           }
       </style>
     Give this a try and see if this works for you.

    Regards,
    Maria Ilieva
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
