File Browser Dialog as Custom DataFormDataField

2 posts, 0 answers
  1. BILL
    BILL avatar
    4 posts
    Member since:
    Oct 2011

    Posted 01 May 2013 Link to this post

    Hello All,

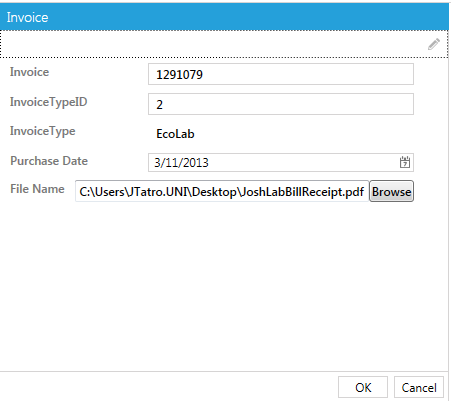

       I just wanted to submit a solution I found that allows me to attach a file browser dialog to a textbox field of a data form (see attached example1.png).   Basically I wanted a browse button next to the text box that would open a filedialog and replace the textbox's text property with the selected file's path.   I found this cool class in a blog post ( blogpost )  that allow someone to attach a filebrowser dialog to a textbox and re-engineered it in VB.NET (see the blog posting for the C# version).  I then created a User Control that contains the button and textbox and attaches to a custom filter field.  Next I created a class call DataFormImageFileBrowser that Inherits from the DataFormDataField and replaces the textbox with the user control.  Finally I bound the custom DataFormDataField in the AutoGeneratingField event and viola it works... here my code for the OpenFileDialogEx and the DataFormImageFileBrowser

    Imports System
    Imports Microsoft.Win32
    Imports Telerik.Windows
    Imports Telerik.Windows.Controls

    Public Class OpenFileDialogEx
        Public Shared ReadOnly FilterProperty As DependencyProperty = DependencyProperty.RegisterAttached("Filter", GetType(String), GetType(OpenFileDialogEx), New PropertyMetadata("All documents (.*)|*.*", Sub(d, e) AttachFileDialog(DirectCast(d, TextBox), e)))
        Public Shared Function GetFilter(element As UIElement) As String
            Return DirectCast(element.GetValue(FilterProperty), String)
        End Function

        Public Shared Sub SetFilter(element As UIElement, value As String)
            element.SetValue(FilterProperty, value)
        End Sub


        Private Shared Sub AttachFileDialog(textBox As TextBox, args As DependencyPropertyChangedEventArgs)
            Dim parent = DirectCast(textBox.Parent, Panel)
            ''added this because there was a problem with double binding and it was causing the filebrowser dialog to pop up twice
            Dim tag = TryCast(parent.Tag, String)
            If Not IsNothing(tag) Then Return
            parent.Tag = "already bound"
            AddHandler parent.Loaded, Sub()

                                          Dim button = DirectCast(parent.Children.Cast(Of Object)().FirstOrDefault(Function(x) TypeOf x Is Button), Button)
                                          Dim filter = DirectCast(args.NewValue, String)
                                          AddHandler button.Click, Sub(s, e)
                                                                       Dim dlg = New OpenFileDialog()
                                                                       dlg.Filter = filter
                                                                       Dim result = dlg.ShowDialog()
                                                                       If result = True Then
                                                                           textBox.Text = dlg.FileName
                                                                       End If
                                                                   End Sub
                                      End Sub
        End Sub
    End Class

    Public Class DataFormImageFileBrowser
        Inherits DataFormDataField

        Protected Overrides Function GetControlBindingProperty() As DependencyProperty
            Return TextBox.TextProperty
        End Function

        Protected Overrides Function GetControl() As Control
            Dim fd = New OpenFileDialogUC("Image file (pdf,png,gif,jpg,bmp,tif,emf,wmf)|*.pdf;*.png;*.gif;*.jpg;*.bmp;*.jpeg;*.tiff;*.tif;*.emf;*.wmf")

            Dim dependencyProperty As DependencyProperty = GetControlBindingProperty()
            If Not IsNothing(DataMemberBinding) Then
                Dim binding = DataMemberBinding
                fd.FileNameTbx.SetBinding(dependencyProperty, binding)
            End If

            Return fd
        End Function
    End Class


    Here is the code for the UserControl:
    <UserControl x:Class="OpenFileDialogUC"
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
                 xmlns:src="clr-namespace:CarWashInventoryManagement"
                 mc:Ignorable="d" >
        <Grid>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="Auto"/>
            </Grid.ColumnDefinitions>
            <TextBox x:Name="FileNameTbx" MinWidth="100" src:OpenFileDialogEx.Filter="{Binding FilterStr}" Grid.Column="0" />
            <Button Grid.Column="1">Browse</Button>
        </Grid>
    </UserControl>

    and its code behind:
    Public Class OpenFileDialogUC
        Public Property FilterStr As String = String.Empty
        Public Sub New(_filter As String)
            FilterStr = _filter
            DataContext = Me
            InitializeComponent()
        End Sub
    End Class


    here is the code for the AutoGeneratingField for the RadDataForm
    ElseIf e.PropertyName = "FileName" Then
            Dim df = New DataFormImageFileBrowser()
            df.Label = e.DataField.Label
            df.DataMemberBinding = e.DataField.DataMemberBinding
            e.DataField = df
            e.DataField.Label = "File Name"

    I thought this was pretty cool so I thought I would share...
  2. Maya
    Admin
    Maya avatar
    4062 posts

    Posted 01 May 2013 Link to this post

    Hi Bill,

    Thanks a lot for sharing with the community. It might be really helpful for someone dealing with the same issue.
    I reward you with telerik points

    Kind regards,
    Maya
    the Telerik team
