extra line on radgrid header

2 posts, 0 answers
  1. JJ
    JJ avatar
    147 posts
    Member since:
    May 2010

    Posted 06 Jun 2012 Link to this post

    <telerik:RadGrid ID="mygrid" runat="server" AllowFilteringByColumn="True"
                                 Width="950px" AllowPaging="True" AllowSorting="True" CellSpacing="0" GridLines="None"
                                 OnNeedDataSource="mygrid_NeedDataSource" AutoGenerateColumns="False"
                                 EnableLinqExpressions="False" CssClass="bodytext" OnItemCreated="mygrid_ItemCreated"
                                 OnItemDataBound="mygridI_temDataBound" OnPdfExporting="mygrid_PdfExporting"
                                 OnHTMLExporting="mygrid_HTMLExporting" OnGridExporting="mygrid_GridExporting"
                                 OnInit="mygrid_Init" OnItemCommand="mygrid_ItemCommand">
                                 <GroupingSettings CaseSensitive="false" />
                                 <MasterTableView PageSize="10"  TableLayout="Auto"  EnableHeaderContextMenu="true" EnableHeaderContextFilterMenu="true">

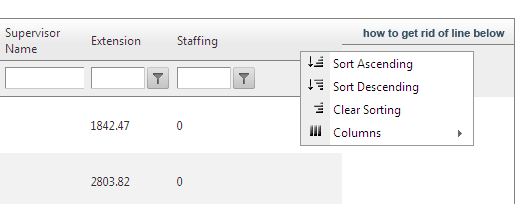

    when I set EnableHeaderContextMenu="true" for radgrd , I use  UseStaticHeaders="True" and try to hide some of the column using ContextFilterMenu,  I got extra line behind the hiding column -- see attached image, I think this is caused by multiline header how can I get rid of it or make this look better?

    how can I make the visible column expand to full grid with instead of leaving empty space for the hidden column?

    I tried to remove UseStaticHeaders="True", but still having empty space for hidden column.

    Not sure what I missed, I feel I did the same as the demo. But just can not get rid of the ending white space.
    http://demos.telerik.com/aspnet-ajax/grid/examples/generalfeatures/headercontextfiltermenu/defaultcs.aspx










    Please help!



     Thanks!







  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 07 Jun 2012 Link to this post

    Hi,

    I could replicate the issue when setting AllowScroll to true. Please try the following Javascript.

    ASPX:
    <ClientSettings>
            <ClientEvents OnColumnHidden="onColumnHidden" />
            <Scrolling AllowScroll="true" UseStaticHeaders="true" />
    </ClientSettings>

    Javascript:
    <script type="text/javascript">
        function onColumnHidden(sender, args)
        {
            sender.get_masterTableView().get_element().style.tableLayout = "auto";
            sender.get_masterTableViewHeader().get_element().style.tableLayout = "auto";
            window.setTimeout(function () {
                sender.get_masterTableViewHeader().get_element().style.tableLayout = "fixed";
                sender.get_masterTableView().get_element().style.tableLayout = "fixed";
            }, 1)
        }
    </script>

    Thanks,
    Princy.
