Export to PDF in Scheduler.

17 posts, 0 answers
  1. Jiten
    Jiten avatar
    57 posts
    Member since:
    Sep 2012

    Posted 18 Sep 2012 Link to this post

    Hello,
      I am adding below tag <ExportSettings in the <telerik:RadScheduler runat="server" ID="RadScheduler1" .........> Tag
    <
    ExportSettings OpenInNewWindow="true" FileName="SchedulerExport">
                    <Pdf PageTitle="Schedule" Author="Telerik" Creator="Telerik" Title="Schedule" />
                </ExportSettings>

    there is button to export pdf:

    protected void btnExportPdf_Click(object sender, EventArgs e)
        {
            RadScheduler1.ExportToPdf();
        }
    but the problem is no pdf open to download. It's resize the radScheduler control in small size when i click in Export button and no download popup page. I see in demo page path:http://demos.telerik.com/aspnet-ajax/scheduler/examples/pdfexport/defaultcs.aspx.

    How is the problem I can't understand.

    Please help me as soon as possible.


    Thanks

    Jiten Mutum
  2. Ivana
    Admin
    Ivana avatar
    657 posts

    Posted 20 Sep 2012 Link to this post

    Hi Jiten,

    I have the following definition of RadScheduler locally and I can not replicate the issue.
    <telerik:RadScheduler ID="RadScheduler1" runat="server">
        <ExportSettings OpenInNewWindow="true" FileName="SchedulerExport">
            <Pdf PageTitle="Schedule" Author="Telerik" Creator="Telerik" Title="Schedule" />
        </ExportSettings>
    </telerik:RadScheduler>
    <telerik:RadButton ID="RadButton1" runat="server" Text="Export to PDF" OnClick="RadButton1_Click">
    </telerik:RadButton>
    protected override void OnInit(EventArgs e)
    {
        base.OnInit(e);
        RadScheduler1.Provider = new XmlSchedulerProvider(Server.MapPath("~/App_Data/Appointments.xml"), true);
    }
    protected void RadButton1_Click(object sender, EventArgs e)
    {
        RadScheduler1.ExportToPdf();
    }

    Would you specify the version of RadControls for ASP.NET AJAX that you use in your application? Also, is this somehow browser related behavior?

    Regards,
    Ivana
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Jiten
    Jiten avatar
    57 posts
    Member since:
    Sep 2012

    Posted 21 Sep 2012 Link to this post

    Hello Ivana,

    My telerik version is : 2012.1.215.35.

    And I can't use the following line because I Bind the provider in RadComboBox control with checkbox in dynamic from the database.
     RadScheduler1.Provider = new XmlSchedulerProvider(Server.MapPath("~/App_Data/Appointments.xml"), true);
    Here is the providerID which I pass in XML:
    <Table1><c1>199</c1></Table1><Table1><c1>319</c1></Table1><Table1><c1>195</c1></Table1><Table1><c1>2</c1></Table1><Table1><c1>80</c1></Table1><Table1><c1>1</c1></Table1><Table1><c1>198</c1></Table1>
    My browser is FireFox.

    And I use some properties in RadScheduler control:
    <telerik:RadScheduler OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"
                                                            OnAppointmentCreated="RadScheduler1_AppointmentCreated" runat="server" ID="RadScheduler1"
                                                           CustomAttributeNames="StatusId,ColorName,StatusColor,RegistrationId,DoesPatientOweMoney,ValidPaymentCaseId,TooTipText,DoctorId,Type,EligibilityChecked"
                                                            OnClientAppointmentClick="OnClientAppointmentClick"
                                                            EnableDescriptionField="true" ShowNavigationPane="false" OnAppointmentDelete="RadScheduler1_AppointmentDelete"
                                                            OnAppointmentUpdate="RadScheduler1_AppointmentUpdate" DataSubjectField="Subject"
                                                            DataStartField="FromTime" DataEndField="ToTime" ShowAllDayRow="false" OnClientTimeSlotClick="OnClientTimeSlotClick"
                                                            AllowEdit="False" DataKeyField="AppointmentId" DataDescriptionField="StatusColor"
                                                            OnTimeSlotContextMenuItemClicked="RadScheduler1_TimeSlotContextMenuItemClicked"
                                                            AllowDelete="false" OnAppointmentContextMenuItemClicked="RadScheduler1_AppointmentContextMenuItemClicked"
                                                            OnNavigationCommand="RadScheduler1_NavigationCommand" OnTimeSlotCreated="RadScheduler1_TimeSlotCreated"
                                                            OnClientAppointmentContextMenu="OnClientAppointmentContextMenu" AppointmentStyleMode="Default">

    Thanks.

    Jiten Mutum
  5. Ivana
    Admin
    Ivana avatar
    657 posts

    Posted 25 Sep 2012 Link to this post

    Hello Jiten,

    I can not determine what is causing the strange behavior at your end unless you provide me with an sample page/project in which this behavior is isolated. Could you please open a support ticket and send me a sample project?

    Regards,
    Ivana
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  6. Jiten
    Jiten avatar
    57 posts
    Member since:
    Sep 2012

    Posted 27 Sep 2012 Link to this post

    Hello Ivana,
     I am thanking you for your reply.
    But I want to know the reason of OnInit event. We already  binding the provider in the calender. Why you are binding the provider in this event?

    protected override void OnInit(EventArgs e)
    {
        base.OnInit(e);
        RadScheduler1.Provider = new XmlSchedulerProvider(Server.MapPath("~/App_Data/Appointments.xml"), true);
    }

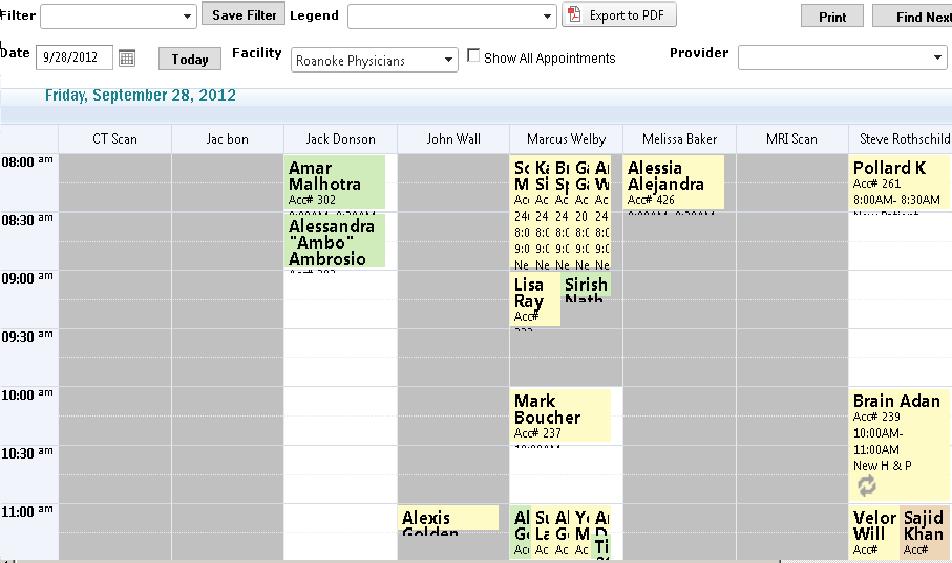

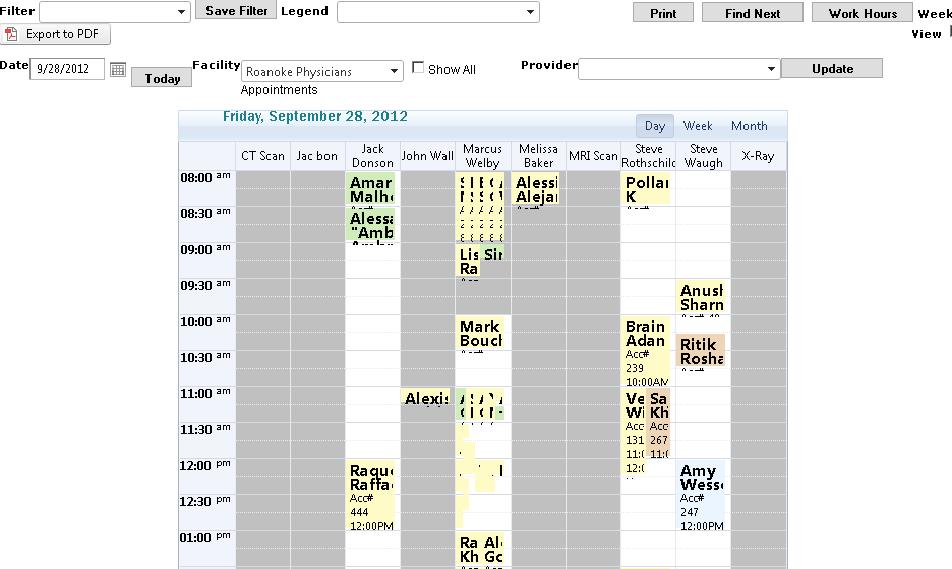

    I also Attach two files. Appointment 1 file is before I click in the export to PDF button and Appointment 2 is after I click in the Export to PDF button.

    I think this could be problem. We can not bind like this what you did.
    I am eagerly waiting your reply.
    Thanks

    Jiten Mutum
  7. Ivana
    Admin
    Ivana avatar
    657 posts

    Posted 01 Oct 2012 Link to this post

    Hello Jiten,

    Specifying the data provider was just to show you that I have tested this behavior with a XML provider for RadScheduler. Nonetheless, the data provider should not have any impact on the PDF export functionality.

    At the images you have provided it is shown that the "Export to PDF" button is misaligned somehow after it is clicked. Is this the problem you experience at your end, or is it related to the PDF export functionality itself?

    Could you at least provide me with a live URL to your website so we will be able to take a look at the export to PDF functionality locally?

    All the best,
    Ivana
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  8. Ed
    Ed avatar
    3 posts
    Member since:
    Oct 2012

    Posted 02 Oct 2012 Link to this post

    Hi,

    I have the same issue. I click export and the scheduler control resizes to a smaller size (maybe 75% of full size) and no pdf is generated. I'm using version 2012.2.912.35, although I saw the same behavior with an earlier version (2012.2.6xx.35).

    I've tried setting up the webresource lines in web.config with no effect.

    in the Handlers section:
          <add name="Telerik.Web.UI.WebResource.axd_*" path="Telerik.Web.UI.WebResource.axd" verb="*" type="Telerik.Web.UI.WebResource, Telerik.Web.UI"  preCondition="integratedMode" />

    in the httpHandlers section:
          <add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" validate="false"/>

    I'm using standard databinding in the code behind. No errors are being thrown in the client or on the server side.


  9. Ed
    Ed avatar
    3 posts
    Member since:
    Oct 2012

    Posted 02 Oct 2012 Link to this post

    OK, I did some more research and found out that when I moved the Export button outside of the UpdatePanel it worked just fine.

    I can live with that short term, but it's not where I'd like it to be on the page.
  10. Ivana
    Admin
    Ivana avatar
    657 posts

    Posted 04 Oct 2012 Link to this post

    Hi Ed,

    We would really appreciate if someone could open a support ticket on this matter and send us a sample page/project where this irregularity is reproducible. This way we will be able to take the proper actions and hopefully provide you with a solution.

    Thank you!

    Regards,
    Ivana
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  11. Ed
    Ed avatar
    3 posts
    Member since:
    Oct 2012

    Posted 09 Oct 2012 Link to this post

    OK, here is the aspx code. Right now with the Export button outside of the UpdatePanel
    it works correctly. When I had the Export button just below the RadScheduler control inside
    of the UpdatePanel it would NOT work. Let me know if you need any more code. This is part of
    a huge proprietary application so I can't really include very much.

    <%@ Page Title="Appointment Scheduling" Language="vb" AutoEventWireup="false" MasterPageFile="~/ADVC.master"
        CodeBehind="Scheduler.aspx.vb" Inherits="ADVC.Scheduler" EnableSessionState="True" validateRequest="false"
        MaintainScrollPositionOnPostback="true" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <%@ Register Src="UserControls/TabbedPageHeader.ascx" TagName="TabbedPageHeader" TagPrefix="header" %>
    <%@ Register TagPrefix="scheduler" TagName="AdvancedForm" Src="UserControls/AdvancedFormVB.ascx" %>

    <asp:Content ID="myHead" ContentPlaceHolderID="trueHead" runat="server">

        <link rel="stylesheet" href="Styles/Calendar.css" type="text/css" />
        <link rel="stylesheet" href="Styles/Calendar.Office2010Blue.css" type="text/css" />
        <link rel="stylesheet" href="Styles/telerikStyles.min.css" type="text/css" />
    <%--    <link rel="stylesheet" href="Styles/SchedulerAppointments.css" type="text/css" />
    --%>
        <link href="Styles/Scheduler.css" rel="stylesheet" type="text/css" />
        <link href="Styles/SchedulerRecurrenceEditor.css" rel="stylesheet" type="text/css" />
        <link href="Styles/SchedulerReminderDialog.css" rel="stylesheet" type="text/css" />

        <style type="text/css">
            .rcbSlide, .rcbArrowCell
            {
                z-index: 1000001 !important;
            }
        </style>

    </asp:Content>
    <asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">

    <%--OnClientItemChecked="GetRadListBoxValues"--%>
    <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" Skin="Windows7"
        CssClass="modalBackground" InitialDelayTime="100" EnableSkinTransparency="False">
    </telerik:RadAjaxLoadingPanel>
    <header:TabbedPageHeader ID="tph1" runat="server" />
    <table style="width: 100%">
        <tr>
            <td style="width: 15%">
            </td>
            <td style="width: 70%">
                <div id="divTimeZones" style="text-align: center;">
                    <table style="padding: 0px; margin: 0px; border-style: ridge;">
                        <tr>
                            <td align="right" style="padding: 0px; margin: 0px">
                                <asp:Label ID="Label1" runat="server" Text="AZ Time:"></asp:Label>
                            </td>
                            <td style="border-style: none ridge none none; padding: 0px; margin: 0px">
                                <asp:Label ID="lblAZTime" runat="server" Text=""></asp:Label>
                            </td>
    <%--                        <td align="right" style="padding: 0px; margin: 0px">
                                <asp:Label ID="Label2" runat="server" Text="Pharmacist Time:"></asp:Label>
                            </td>
                            <td style="border-style: none ridge none none; padding: 0px; margin: 0px">
                                <asp:Label ID="lblPharmacistTime" runat="server" Text=""></asp:Label>
                            </td>
    --%>                        <td align="right" style="padding: 0px; margin: 0px">
                                <asp:Label ID="Label3" runat="server" Text="Member Time:" Font-Bold="True"></asp:Label>
                            </td>
                            <td style="padding: 0px; margin: 0px">
                                <asp:Label ID="lblMemberTime" runat="server" Text="" Font-Bold="True"></asp:Label>
                            </td>
                        </tr>
                    </table>
                </div>
            </td>
            <td style="width: 15%; text-align: right;">
                <telerik:RadButton runat="server" id="btnExport" Skin="Office2010Blue"
                    Text="Export to PDF" Icon-PrimaryIconUrl="~/images/ExportToPdf.gif">
                </telerik:RadButton>
            </td>
        </tr>
    </table>

    <asp:UpdatePanel runat="server" id="upScheduler">
        <ContentTemplate>
        <div>
            <telerik:radsplitter runat="server" id="RadSplitter1" panesbordersize="0" width="870px"
                height="800px" Skin="Office2010Blue" BorderSize="0" BorderStyle="None">
                <telerik:RadPane runat="Server" ID="leftPane" Width="250px" MinWidth="250" MaxWidth="300"
                    MaxHeight="800" Height="800px" Locked="True" Scrolling="None">
                    <div class="calendar-container"
                    style="text-align: center; overflow: hidden;">
                        <telerik:RadCalendar ID="RadCalendar1" runat="server"
                            DayNameFormat="FirstTwoLetters" EnableMultiSelect="False" Height="200px"
                            SelectedDate="" ShowOtherMonthsDays="False" ShowRowHeaders="False"
                            Skin="Office2010Blue" UseColumnHeadersAsSelectors="False"
                            UseRowHeadersAsSelectors="False" ViewSelectorText="x" Width="95%"
                            AutoPostBack="True" FirstDayOfWeek="Monday">
                            <dayoverstyle cssclass="rcHover" />
                            <fastnavigationstyle
                            cssclass="RadCalendarMonthView RadCalendarMonthView_Office2010Blue" />
                            <disableddaystyle cssclass="rcDisabled" />
                            <weekenddaystyle backcolor="#FFCCCC" cssclass="rcWeekend" />
                            <viewselectorstyle cssclass="rcViewSel" />
                            <%--<ClientEvents OnDateSelected="OnCalendar1DateSelected" OnCalendarViewChanged="OnCalendar1ViewChanged" />--%>
    <%--                        <clientevents oncalendarviewchanged="OnCalendar1ViewChanged"
                            ondateclick="OnCalendar1DateSelected" />
    --%>                        <selecteddaystyle cssclass="rcSelected" />
                            <calendartablestyle cssclass="rcMainTable" />
                            <othermonthdaystyle cssclass="rcOtherMonth" />
                            <outofrangedaystyle cssclass="rcOutOfRange" />
                        </telerik:RadCalendar>
                    </div>
                    <br />
                    <div id="divList" style="text-align: left; height: 550px">
                        <%--OnClientItemChecked="GetRadListBoxValues"--%>
                        <telerik:RadListBox ID="rlbResources" runat="server"
                            AppendDataBoundItems="True" AutoPostBack="True" CheckBoxes="True" Height="100%"
                            LoadingPanelID="RadAjaxLoadingPanel1"
                            SelectionMode="Multiple" Skin="Windows7" Width="100%">
                        </telerik:RadListBox>
                    </div>
                </telerik:RadPane>
                <telerik:RadSplitBar runat="server" ID="RadSplitBar2" CollapseMode="Forward" />
                <telerik:RadPane runat="Server" ID="rightPane" Scrolling="None" Width="740px"
                    Height="800px">
                    <div id="divStatus" runat="server">
                        <asp:Panel ID="Panel1" runat="server" GroupingText="Appointment Status">
                            <table>
                                <tr>
                                    <td align="left" style="width: 50%;">
                                        <asp:CheckBoxList ID="cblStatus" runat="server" onclick="GetStatusFilterValues"
                                            RepeatDirection="Horizontal" AutoPostBack="True">
                                            <asp:ListItem Value="Cancelled">Cancelled</asp:ListItem>
                                            <asp:ListItem Value="Completed">Completed</asp:ListItem>
                                            <asp:ListItem Value="Missed">Missed</asp:ListItem>
                                            <asp:ListItem Selected="True" Value="Rescheduled">Rescheduled</asp:ListItem>
                                            <asp:ListItem Selected="True" Value="Scheduled">Scheduled</asp:ListItem>
                                        </asp:CheckBoxList>
                                    </td>
                                    <td align="right" style="width: 50%;">
                                        <asp:LinkButton ID="lbFindNextAvailable" runat="server">Find Next Available</asp:LinkButton>
                                    </td>
                                </tr>
                            </table>
                        </asp:Panel>
                    </div>
                    <telerik:RadScheduler ID="RadScheduler1" runat="server"
                        AdvancedForm-EnableResourceEditing="true" AppointmentStyleMode="Default"
                        DayStartTime="06:00:00" EditFormDateFormat="M/d/yyyy"
                        EnableDescriptionField="True" EnableTheming="True" FirstDayOfWeek="Monday"
                            Height="700px" LastDayOfWeek="Sunday"
                        SelectedDate="2012-05-22" Skin="Office2010Blue"
                        StartInsertingInAdvancedForm="True" WorkDayStartTime="06:00:00"
                        NumberOfHoveredRows="1" onclienttimeslotclick="OnClientTimeSlotClick">
    <%--                    <webservicesettings
                    path="http://localhost:1112/SchedulerWebService.asmx"
                    resourcepopulationmode="ServerSide" />
    --%>                <dayview daystarttime="06:00:00" workdayendtime="18:00:00" />
                        <advancedform dateformat="M/d/yyyy" modal="false" />
    <%--                    <resourcetypes>
                            <telerik:ResourceType AllowMultipleValues="false"
                    KeyField="Extl_Enty_Cntc_ID" Name="Pharmacist" TextField="PHARM_NM" />
                        </resourcetypes>
    --%>                <exportsettings OpenInNewWindow="True" FileName="SchedulerExport" Pdf-AllowAdd="true"
                            Pdf-Producer="AdvanceClinical" Pdf-Creator="CVS | Caremark" Pdf-PageTitle="Your Schedule" Pdf-Title="Your Schedule" Pdf-Subject="Your Schedule">
                            <pdf allowadd="True" creator="CVS | Caremark"
                    pagetitle="Your Schedule" producer="AdvanceClinical" subject="Your Schedule"
                    title="Your Schedule" />
                        </exportsettings>
                        <weekview daystarttime="06:00:00" WorkDayEndTime="18:00:00" />
                        <resourcestyles>
                        </resourcestyles>
                        <multidayview userselectable="True" DayStartTime="06:00:00" />
                        <AdvancedEditTemplate>
                            <scheduler:AdvancedForm runat="server" ID="AdvancedEditForm1" Mode="Edit"
                                Subject='<%# Bind("Subject") %>'
                                Description='<%# Bind("Description") %>'
                                Start='<%# Bind("Start") %>'
                                End='<%# Bind("End") %>'
                                RecurrenceRuleText='<%# Bind("RecurrenceRule") %>'
                                Reminder='<%# Bind("Reminder") %>'
                                TimeZoneID='<%# Bind("TimeZoneID") %>' />
                        </AdvancedEditTemplate>
                        <AdvancedInsertTemplate>
                            <scheduler:AdvancedForm runat="server" ID="AdvancedInsertForm1" Mode="Insert"
                                Subject='<%# Bind("Subject") %>'
                                Start='<%# Bind("Start") %>'
                                End='<%# Bind("End") %>'
                                Description='<%# Bind("Description") %>'
                                RecurrenceRuleText='<%# Bind("RecurrenceRule") %>'
                                Reminder='<%# Bind("Reminder") %>'
                                TimeZoneID='<%# Bind("TimeZoneID") %>' />
                        </AdvancedInsertTemplate>
                        <appointmentcontextmenus>
                            <telerik:RadSchedulerContextMenu
                                ID="SchedulerAppointmentContextMenu" runat="server">
                                <Items>
                                    <telerik:RadMenuItem Text="Open/Edit" Value="CommandEdit" />
                                    <telerik:RadMenuItem IsSeparator="True" />
                                    <telerik:RadMenuItem Text="Set Status">
                                        <Items>
                                            <telerik:RadMenuItem Text="Reschedule" Value="2001" />
                                            <telerik:RadMenuItem Text="Cancel" Value="2002" />
                                            <telerik:RadMenuItem Text="Missed" Value="2003" />
                                            <telerik:RadMenuItem Text="Completed" Value="2004" />
                                        </Items>
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem IsSeparator="True" />
                                    <telerik:RadMenuItem Text="Categorize">
                                        <Items>
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Purple.png"
                                                Text="Care Plan Printed to Mail" Value="1001" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Green.png"
                                                Text="Care Plan Ready to Print" Value="1002" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Blue.png" Text="IA"
                                                Value="1003" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Mauve.png" Text="In Progress"
                                                Value="1004" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Light Gray.png"
                                                Text="Meeting" Value="1005" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Dark Gray.png"
                                                Text="Missed Call" Value="1006" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Yellow.png"
                                                Text="No Care Plan - FU Call" Value="1007" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Red.png"
                                                Text="Re-enrollment Opportunity" Value="1008" />
                                            <telerik:RadMenuItem ImageUrl="Images/Scheduler - Light Blue.png" Text="Stops"
                                                Value="1009" />
                                        </Items>
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem IsSeparator="True" />
                                    <telerik:RadMenuItem ImageUrl="Images/delete.gif" Text="Delete"
                                        Value="CommandDelete" />
                                </Items>
                            </telerik:RadSchedulerContextMenu>
                        </appointmentcontextmenus>
                        <timeslotcontextmenus>
                            <telerik:RadSchedulerContextMenu ID="SchedulerTimeSlotContextMenu"
                                runat="server">
                                <Items>
                                    <telerik:RadMenuItem ImageUrl="Images/new.gif" Text="New Initial Appointment"
                                        Value="CommandAddAppointment" />
                                    <telerik:RadMenuItem ImageUrl="Images/new.gif" Text="New Followup Appointment"
                                        Value="CommandAddAppointment" />
                                    <telerik:RadMenuItem ImageUrl="Images/new.gif" Text="New Internal Reservation"
                                        Value="CommandAddAppointment" />
                                    <telerik:RadMenuItem ImageUrl="Images/recurring.gif"
                                        Text="New Recurring Appointment" Value="CommandAddRecurringAppointment" />
                                    <telerik:RadMenuItem IsSeparator="true" />
                                    <%-- Custom command --%>
                                    <telerik:RadMenuItem Text="Group by Pharmacist" Value="EnableGrouping" />
                                    <telerik:RadMenuItem IsSeparator="true" />
                                    <telerik:RadMenuItem Text="Go to today" Value="CommandGoToToday" />
                                </Items>
                            </telerik:RadSchedulerContextMenu>
                        </timeslotcontextmenus>
                    </telerik:RadScheduler>
                </telerik:RadPane>
            </telerik:radsplitter>
        </div>
        <asp:HiddenField ID="hdnSchedApplId" EnableViewState="true" runat="server" />
        <asp:HiddenField ID="hdnSchedProgId" EnableViewState="true" runat="server" />
        <asp:HiddenField ID="hdnSchedCurrentEnv" EnableViewState="true" runat="server" />
        <asp:HiddenField ID="hdnSchedActiveConn" EnableViewState="true" runat="server" />
        <asp:HiddenField ID="hdnSchedFilter" EnableViewState="true" runat="server" />
        <asp:HiddenField ID="hdnSchedStatus" EnableViewState="true" runat="server" />
        </ContentTemplate>
    </asp:UpdatePanel>
    <asp:UpdatePanel ID="upPopup" runat="server">
        <ContentTemplate>
            <div ID="divPopup1" runat="server">
                <asp:HiddenField ID="hdnPop" runat="server" />
                <asp:HiddenField ID="HiddenField1" runat="server" />
                <ajaxToolkit:ModalPopupExtender ID="popupSearchAppointments" runat="server"
                    BackgroundCssClass="modalBackground" CancelControlID="btnCancelPopup"
                    DropShadow="true" PopupControlID="pnlSearchPopup" TargetControlID="hdnPop">
                </ajaxToolkit:ModalPopupExtender>
                <asp:Panel ID="pnlSearchPopup" runat="server" Width="650px">
                    <table style="background-color: #FFFFFF; width: 100%;">
                        <tr>
                            <td align="center" style="width: 50%;">
                                <asp:Label ID="Label10" runat="server" Text="Choose Dates to Search:"></asp:Label>
                                <telerik:RadCalendar ID="calSearchDate" runat="server"
                                    DayNameFormat="FirstTwoLetters" FirstDayOfWeek="Monday"
                                    RangeSelectionMode="ConsecutiveClicks" SelectedDate="" Skin="Office2010Blue"
                                    UseColumnHeadersAsSelectors="False" ViewSelectorText="x">
                                    <dayoverstyle cssclass="rcHover" />
                                    <fastnavigationstyle cssclass="RadCalendarMonthView RadCalendarMonthView_Office2010Blue" />
                                    <disableddaystyle cssclass="rcDisabled" />
                                    <WeekendDayStyle BackColor="#FFCCFF" CssClass="rcWeekend" />
                                    <viewselectorstyle cssclass="rcViewSel" />
                                    <SelectedDayStyle CssClass="rcSelected" />
                                    <calendartablestyle cssclass="rcMainTable" />
                                    <OtherMonthDayStyle CssClass="rcOtherMonth" />
                                    <outofrangedaystyle cssclass="rcOutOfRange" />
                                </telerik:RadCalendar>
                            </td>
                            <%-- onclientitemchecked="onItemChecked" --%>
                            <td align="center">
                                <asp:Panel ID="Panel2" runat="server" HorizontalAlign="Center" Width="100%">
                                    <div style="text-align: left; width: 85%;">
                                        <asp:Label ID="lblChoosePharmacists" runat="server" Text="Chosen Pharmacists: "></asp:Label>
                                        <asp:Label ID="lblChosenPharmCount" runat="server" Text=""></asp:Label>
                                        <br />
                                        <telerik:RadListBox ID="rlbPharmacists" runat="server"
                                            AppendDataBoundItems="True" CheckBoxes="True" Height="170px"
                                            LoadingPanelID="RadAjaxLoadingPanel1"
                                            Skin="Office2010Blue" Width="100%">
                                            <buttonsettings transferbuttons="All" />
                                        </telerik:RadListBox>
                                    </div>
                                </asp:Panel>
                            </td>
                        </tr>
                        <tr>
                            <td style="width: 50%;">

                            </td>
                            <td>
                            </td>
                        </tr>
                        <tr>
                            <td align="right" style="width: 50%;">
                                <asp:Label ID="Label12" runat="server" Text="Choose Duration:"></asp:Label>

                                <telerik:RadComboBox ID="ddlDuration" runat="server" Width="75px">
                                    <Items>
                                        <telerik:RadComboBoxItem runat="server" Text="30" Value="30" />
                                        <telerik:RadComboBoxItem runat="server" Text="60" Value="60" />
                                        <telerik:RadComboBoxItem runat="server" Text="90" Value="90" />
                                        <telerik:RadComboBoxItem runat="server" Text="120" Value="120" />
                                    </Items>
                                </telerik:RadComboBox>
                            </td>
                            <td align="center">
                                <telerik:RadButton ID="btnSearch" runat="server" Skin="Office2010Blue" Text="Search">
                                </telerik:RadButton>
                            </td>
                        </tr>
                        <tr>
                            <td style="width: 50%;">

                            </td>
                            <td>
                            </td>
                        </tr>
                        <tr>
                            <td align="left" colspan="2">
                                <telerik:RadGrid ID="gvSearchResults" runat="server" AllowSorting="True"
                                    AlternatingItemStyle-HorizontalAlign="Left" AutoGenerateColumns="False"
                                    CellSpacing="0" GridLines="None" HeaderStyle-HorizontalAlign="Left"
                                    Height="200px" ItemStyle-HorizontalAlign="Left" ShowStatusBar="True"
                                    Skin="Office2010Blue" Width="100%" AllowFilteringByColumn="True"
                                    ShowFooter="True">
                                    <ItemStyle HorizontalAlign="Left" />
                                    <mastertableview>
                                        <commanditemsettings exporttopdftext="Export to PDF" />
                                        <rowindicatorcolumn filtercontrolalttext="Filter RowIndicator column"
                                            visible="True">
                                            <HeaderStyle Width="20px" />
                                        </rowindicatorcolumn>
                                        <expandcollapsecolumn filtercontrolalttext="Filter ExpandColumn column"
                                            visible="True">
                                            <HeaderStyle Width="20px" />
                                        </expandcollapsecolumn>
                                        <Columns>
                                            <telerik:GridButtonColumn ButtonType="LinkButton" CommandArgument="ID"
                                                CommandName="Select" Text="Select">
                                                <HeaderStyle Width="50px" />
                                                <ItemStyle Width="50px" />
                                            </telerik:GridButtonColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="ID" DataType="System.Int32" Display="false" HeaderText="ID"
                                                ReadOnly="true" Visible="false">
                                                <HeaderStyle Width="0px" />
                                                <ItemStyle Width="0px" />
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="PharmNm" DataType="System.String" HeaderText="Pharmacist"
                                                ReadOnly="true" Visible="True">
                                                <HeaderStyle Width="150px" />
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="ApptDate" DataFormatString="{0:MM/dd/yyyy}"
                                                DataType="System.DateTime" HeaderText="Appt Date" ReadOnly="true">
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="PharmTime" DataFormatString="{0:h:mm tt}" DataType="System.DateTime"
                                                HeaderText="RPh Time" ReadOnly="true">
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="MbrTime" DataFormatString="{0:h:mm tt}" DataType="System.DateTime"
                                                HeaderText="Mbr Time" ReadOnly="true">
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="IaCount" DataType="System.Int32" HeaderText="IA Count"
                                                ReadOnly="true">
                                            </telerik:GridBoundColumn>
                                            <telerik:GridBoundColumn AllowFiltering="false" AllowSorting="true"
                                                DataField="FuCount" DataType="System.Int32" HeaderText="FU Count"
                                                ReadOnly="true">
                                            </telerik:GridBoundColumn>
                                        </Columns>
                                        <editformsettings>
                                            <editcolumn filtercontrolalttext="Filter EditCommandColumn column">
                                            </editcolumn>
                                        </editformsettings>
                                    </mastertableview>
                                    <clientsettings>
                                        <scrolling allowscroll="True" usestaticheaders="True" />
                                    </clientsettings>
                                    <HeaderStyle HorizontalAlign="Left" />
                                    <filtermenu enableimagesprites="False">
                                    </filtermenu>
                                    <AlternatingItemStyle HorizontalAlign="Left" />
                                </telerik:RadGrid>
                            </td>
                        </tr>
                        <tr>
                            <td style="width: 50%;">

                            </td>
                            <td>
                            </td>
                        </tr>
                        <tr>
                            <td align="center" colspan="2">
                                <telerik:RadButton ID="btnCancelPopup" runat="server" Skin="Office2010Blue"
                                    Text="Cancel">
                                </telerik:RadButton>
                            </td>
                        </tr>
                        <tr>
                            <td style="width: 50%;">

                            </td>
                            <td>
                            </td>
                        </tr>
                    </table>
                </asp:Panel>
            </div>
        </ContentTemplate>
    </asp:UpdatePanel>

        <telerik:RadScriptBlock ID="RadScriptBlock1" runat="server">

        <script type="text/javascript">

    //        var categoryNames = new Array();
    //        var scheduler = null;
    //        var calendar1 = null;
    //        var applid = null;
    //        var progid = null;
    //        var currentenv = null;
    //        var activeconn = null;
    //        var SchedulerNavigationCompleteAlreadyOccurred = false;

    //        function pageLoad() {

    //            scheduler = $find('<%=RadScheduler1.ClientID %>');
    //            calendar1 = $find('<%=RadCalendar1.ClientID %>');
    //            GetStatusFilterValues();
    //        }
    //        function rebindScheduler() {
    //            scheduler.rebind();
    //        }

    //        function OnClientAppointmentsPopulating(sender, eventArgs) {
    //
    ////            loadSchedulerInfo(eventArgs);
    //        }

    //        function OnClientResourcesPopulating(sender, eventArgs) {

    //            loadSchedulerInfo(eventArgs);
    //        }

    //        function loadSchedulerInfo(eventArgs) {
    //            var info = eventArgs.get_schedulerInfo();
    //            info.ApplicationName = document.getElementById("<%= hdnSchedApplId.ClientID %>").value;
    //            info.ProgramId = document.getElementById("<%= hdnSchedProgId.ClientID %>").value;
    //            info.CurrentEnvironment = document.getElementById("<%= hdnSchedCurrentEnv.ClientID %>").value;
    //            info.ActiveConnectionString = document.getElementById("<%= hdnSchedActiveConn.ClientID %>").value;
    //            info.ResourceFilter = document.getElementById("<%= hdnSchedFilter.ClientID %>").value;
    //            info.Status = document.getElementById("<%= hdnSchedStatus.ClientID %>").value;
    //        }

    //        function OnClientAppointmentWebServiceInserting(sender, args) {
    //            //set a default Calendar resource
    //            if (args.get_appointment().get_resources().get_count() == 0) {
    //                var defaultCalendarResource = sender.get_resources().getResourceByTypeAndKey("Calendar", 1);
    //                args.get_appointment().get_resources().add(defaultCalendarResource);
    //            }
    //        }

    //        function OnCalendar1DateSelected(sender, args) {
    ////            var selectedDateTriplet = args._renderDay._date;  // sender.get_selectedDates()[0];
    ////            if (selectedDateTriplet) {
    ////                var selectedDate = new Date(selectedDateTriplet[0], selectedDateTriplet[1] - 1, selectedDateTriplet[2]);
    ////                scheduler.set_selectedDate(selectedDate);
    ////                rebindScheduler();
    ////            }
    //        }

    //        function OnCalendar1ViewChanged(sender, eventArgs) {

    //            var dateTriplet = sender.get_focusedDate();

    //            if (!SchedulerNavigationCompleteAlreadyOccurred) {
    //                var selectedDate = new Date(dateTriplet[0], dateTriplet[1] - 1, dateTriplet[2]);
    //                scheduler.set_selectedDate(selectedDate);
    //                rebindScheduler();
    //            }
    //            SchedulerNavigationCompleteAlreadyOccurred = false;
    //        }

    //        function OnClientNavigationComplete(sender, args) {
    //            SchedulerNavigationCompleteAlreadyOccurred = true;
    //            var selectedDate = sender.get_selectedDate();

    //            calendar1.navigateToDate([selectedDate.format("yyyy"), selectedDate.format("MM"), selectedDate.format("dd")]);
    //        }

    //        function dateAdd(dt, mo) {
    //            var sdPlusXMo = new Date(new Date(dt).setMonth(dt.getMonth() + mo));
    //            return sdPlusXMo;
    //        }

    //        function getDateTriplet(dt) {
    //            var dateTriplet = [dt.getFullYear(), dt.getMonth() + 1, dt.getDate()];
    //            return dateTriplet;
    //        }

    //        function clearCalendar(cal) {
    //            var dates = cal.get_selectedDates();
    //            cal.unselectDates(dates);
    //        }

    //        // create the XML required for the proc to filter by status
    //        function GetStatusFilterValues(sender, eventArgs) {
    //            var filter = "<ApptStatuses>";
    //            var chkBox = document.getElementById('<%=cblStatus.ClientID %>');
    //            var checkBoxArray = chkBox.getElementsByTagName('input');
    //
    //            for (var i = 0; i < checkBoxArray.length; i++) {
    //                var checkBoxRef = checkBoxArray[i];
    //                if (checkBoxRef.checked) {
    //                    var labelArray = checkBoxRef.parentNode.getElementsByTagName('label');

    //                    if (labelArray.length > 0) {
    //                        filter += "<ApptStatus>" + labelArray[0].innerHTML + "</ApptStatus>";
    //                    }
    //                }
    //            }
    //            filter += "</ApptStatuses>";
    //            document.getElementById("<%= hdnSchedStatus.ClientID %>").value = filter;
    //            rebindScheduler();
    //        }

    //        // create the XML required for the proc to filter by pharmacist
    //        function GetRadListBoxValues(sender, eventArgs) {
    //            var filter = "<Pharmacists>";
    //            var chkBox = $find('<%=rlbResources.ClientID %>');
    //            var items = chkBox.get_items();
    //            var chkCount = 0;
    //            for (var i = 0; i < items.get_count() - 1; i++) {
    //                var item = items.getItem(i);
    //                if (item.get_checked()) {
    //                    filter += "<Pharmacist>" + item.get_value() + "</Pharmacist>";
    //                    chkCount++;
    //                }
    //            }
    //            filter += "</Pharmacists>";
    //            document.getElementById("<%= hdnSchedFilter.ClientID %>").value = filter;
    //            rebindScheduler();
    //        }
            function OnClientTimeSlotClick(sender, eventArgs) {

            }
        </script>

        </telerik:RadScriptBlock>

    </asp:Content>
  12. Ivana
    Admin
    Ivana avatar
    657 posts

    Posted 12 Oct 2012 Link to this post

    Hi Ed,

    I have tested the described scenario and indeed there are some discrepancies with the Radscheduler's Export when it is placed inside an update panel. I have logged this as an issue into our Issue Tracking System and we will do our best to provide a fix for it.

    Thank you for your report. Your telerik points have been updated.

    All the best,
    Ivana
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  13. Ari
    Ari avatar
    2 posts
    Member since:
    Feb 2012

    Posted 06 Feb 2013 Link to this post

    Is there an update on this?  We have the same issue.

    Thanks.
  14. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 11 Feb 2013 Link to this post

    Hello,

    Unfortunately there is not update regarding that issue.
    We have researched that problem and it seems that this is RadScheduler limitation.

    Please excuse us for any inconveniences caused.

    Regards,
    Boyan Dimitrov
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  15. Sandy
    Sandy avatar
    26 posts
    Member since:
    Mar 2012

    Posted 18 Oct 2013 Link to this post

    Hi,

    I added the Export button outside of the Updatepanel

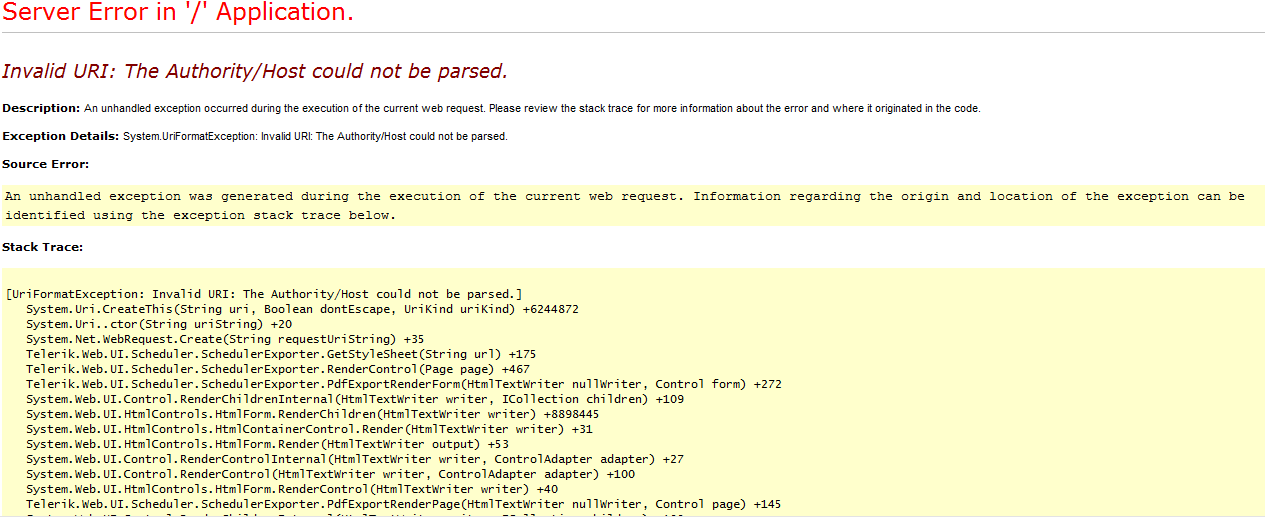

    I am getting an error page"invalid uri the authority/host could not be parsed"
  16. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 23 Oct 2013 Link to this post

    Hello,

    I am afraid that I am not able to replicate any such issue if I move the button for pdf export outside the update panel. Could you please try to modify the attached sample project in order to reproduce this issue and explain what  exactly is different in your scenario.

    Regards,
    Boyan Dimitrov
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
  17. Sandy
    Sandy avatar
    26 posts
    Member since:
    Mar 2012

    Posted 23 Oct 2013 Link to this post

    Hi ,

    Thank you for your response.

    My issue was cleared.
    I can open the page in new pdf.I can open the scheduler in new PDF with no appointments.If I have any appointmetns in scheduler then I am getting the error"

    The 'div' start tag on line 96 position 15 does not match the end tag of 'li'. Line 102, position 13.  I am not using a xml to load my scheduler.

    "
    please help me on this.
  18. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 28 Oct 2013 Link to this post

    Hello,

    Most likely it is caused by not closed html tags declared in scheduler templates for example. Please validate the page output. Please close all opened tags and make sure that the page output is valid.


    Regards,
    Boyan Dimitrov
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
