Export RadGrid into PDF

[Yuriy Shvadskiy]

I am trying to Export into PDF from RadGrid. My grid is too wide on a screen and when output to PDF happened it is squished. I was trying to apply style before I do Export but it does not make any difference.

        private void btnExportToPDF_Click(object sender, EventArgs e)

        {

            ApplyStylesToPDFExport(giftGrid.MasterTableView);

            giftGrid.MasterTableView.ExportToPdf();

        }



        private void ApplyStylesToPDFExport(GridTableView view)

        {

            // Get access to the header of the grid

            GridItem headerItem = view.GetItems(GridItemType.Header)[0];



            // Apply some css style to the header

            foreach (TableCell cell in headerItem.Cells)

            {

                cell.Style["font-family"] = "Verdana";

                cell.Style["text-align"] = "center";

                cell.Style["vertical-align"] = "middle";

                cell.Style["font-size"] = "2px";

            }



            // Get access to the date of the grid

            GridItem[] dataItems = view.GetItems(GridItemType.Item);



            // Apply some css style to the data items

            foreach (GridItem item in dataItems)

            {

                foreach (TableCell cell in item.Cells)

                {

                    cell.Style["font-family"] = "Verdana";

                    cell.Style["text-align"] = "center";

                    cell.Style["vertical-align"] = "middle";

                    cell.Style["font-size"] = "2px";

                }

            }

        }

Please explain to me what do I do wrong.

Thanks,

Yuriy

[Daniel]

Hello Yuriy,

For your convenience I created a sample project that demonstrates how to attain the desired behavior.

I hope this helps.

Regards,
Daniel
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Check out the tips for optimizing your support resource searches.

[LeBear]

Perhaps I'm missing something, but the attachment is virtually the same as the code provided by Yuriy.

I'm trying this, and it doesn't affect the PDF output in any way.  I have successfully altered the column width prior to export, but I can't affect any fonts in the output.  Interestingly, I put this code in PreRender without any conditions, and it does affect the output to the screen.  I can then export to PDF, and that exported content remains unaffected.

[Daniel]

Hello Barry,

The attached sample project works properly. However it won't work, if you set IgnorePaging="true" or if you rebind RadGrid before export. In such cases you should apply your custom styles on ItemCreated as shown below:

Button click handler:

bool IsExport = false;
protected void Button6_Click(object sender, EventArgs e)
{
    IsExport = true;
    RadGrid1.MasterTableView.ExportToPdf();
}

ItemCreated:

protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (IsExport)
        ApplyStylesToPDFExport(e.Item);
}

Sample code:

private void ApplyStylesToPDFExport(GridItem item)
{
    if (item is GridHeaderItem)
        foreach (TableCell cell in item.Cells)
        {
            cell.Style["font-family"] = "Verdana";
            cell.Style["text-align"] = "left";
            cell.Style["font-size"] = "6pt";
        }
    if (item is GridDataItem)
    {
        item.Style["font-size"] = "6px";
        item.Style["background-color"] = item.ItemType == GridItemType.AlternatingItem ? "#DDDDDD" : "#AAAAAA";
    }
}

Best regards,
Daniel
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[kernelk]

Thank you, Daniel. Finally got formatting working. Thanks for the explanation.

[Ranjith]

Hi,

I am trying to export PDF from my RadGrid and its exporting successfully. But i am facing some design issues in the exported PDF file.

1. All the text are coming with Hyperlinks in the exported PDF.
2. Set the Forecolor and width, which are not getting reflected in the exported PDF.

Below is my c# code

protected void btnExportToPDF_Click(object sender, ImageClickEventArgs e)
        {
            ApplyStylesToPDFExport(RadGrid1.MasterTableView);
            RadGrid1.ExportSettings.OpenInNewWindow = true;
            RadGrid1.ExportSettings.IgnorePaging = true;
            RadGrid1.ExportSettings.FileName = "Test";
            RadGrid1.MasterTableView.ExportToPdf();
        }
private void ApplyStylesToPDFExport(GridTableView view)
        {
            GridItem headerItem = view.GetItems(GridItemType.Header)[0];
            foreach (TableCell cell in headerItem.Cells)
            {
switch (cell.Text)
                {
                    case "A":
                        cell.Width = Unit.Pixel(5); // Tried like this. Not reflecting
                        break;
                    case "B":
                        cell.Style["width"] = "15px"; // Tried like this. Not reflecting
                        break;
}
                cell.Style["font-family"] = "Verdana";
                cell.Style["font-bold"] = "true";
                cell.Style["text-align"] = "left";
                cell.Style["vertical-align"] = "middle";
                cell.Style["font-size"] = "8px";
                cell.ForeColor = System.Drawing.Color.Black; // Tried like this. Not reflecting

            }
            GridItem[] dataItems = view.GetItems(GridItemType.Item);
            foreach (GridItem item in dataItems)
            {
                foreach (TableCell cell in item.Cells)
                {
                    cell.Style["font-family"] = "Verdana";
                    cell.Style["text-align"] = "left";
                    cell.Style["vertical-align"] = "left";
                    cell.Style["font-size"] = "6px";
                    cell.Style["text-decoration"] = "none"; // Tried like this. Not reflecting

                    cell.Style["ForeColor"] = "#000";
                }
            }
            dataItems = view.GetItems(GridItemType.AlternatingItem);
            foreach (GridItem item in dataItems)
            {
                foreach (TableCell cell in item.Cells)
                {
                    cell.Style["font-family"] = "Verdana";
                    cell.Style["text-align"] = "left";
                    cell.Style["vertical-align"] = "middle";
                    cell.Style["font-size"] = "6px";
                    cell.Style["text-decoration"] = "none";
                    cell.ForeColor = System.Drawing.Color.Black;
                }
            }
        }

Please advise.

Thanks
Ranjith

[Kostadin]

Hello Ranjith,

In order to remove the hyperlink text you have to set ExportOnlyData to true. Regards the styling issue you have to specify the width of the column instead setting a width of a single cell. Also instead setting a ForeColor you could set a color attribute. Please check out the following code snippet.

cell.Style["color"] = "black";

I would recommend you to review the following live example which demonstrates how to style the grid when exporting to PDF.


Regards,
Kostadin
Telerik

[Hamed]

please help me

See the attachment pdf is exporting like this...can you resolve this issue.

Thank you

[Hamed]

please help me

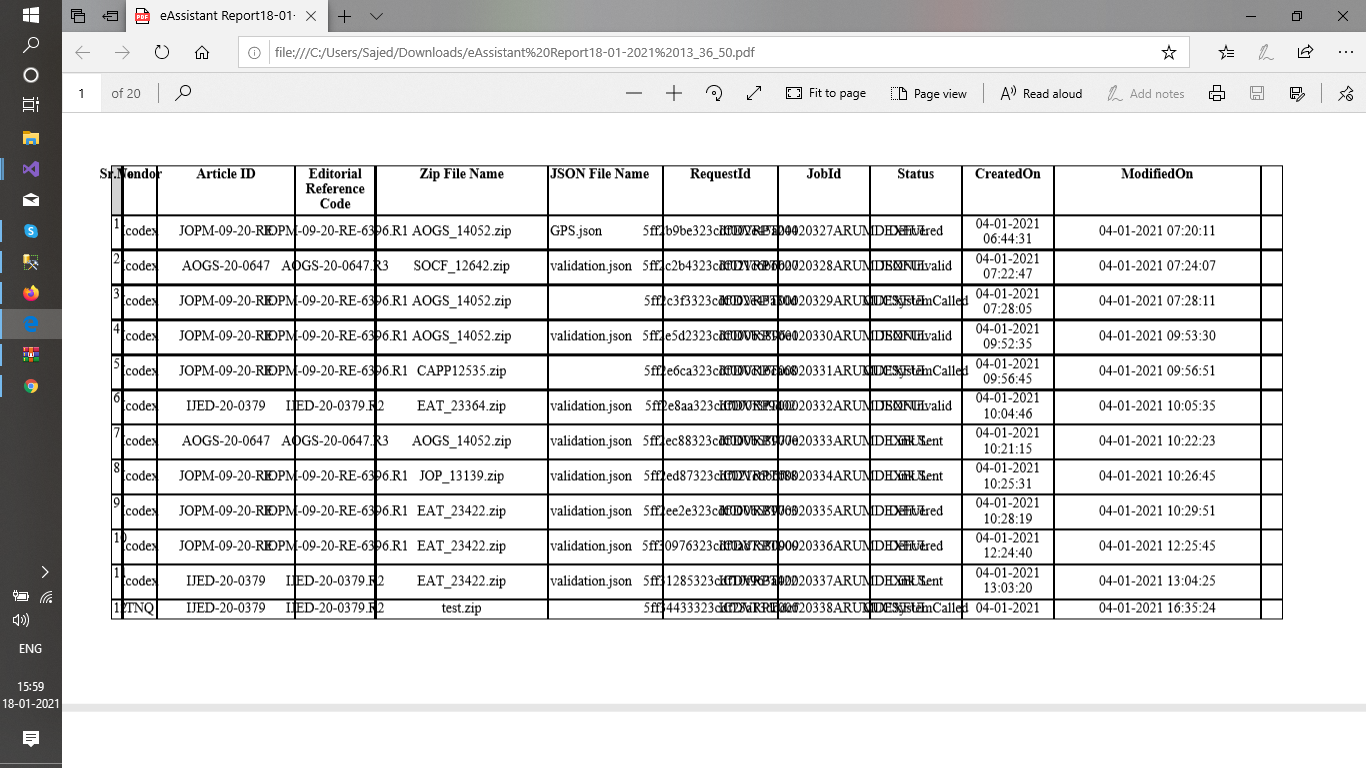

See the attachment when i was exporting grid data into pdf so it looks like this...can you resolve this issue.
Thank you

[Vessy]

Hi Hamed,

Currently, the Grid is able to export to PDF only the styles which are applied inline to its elements. If you are styling them via CSS selectors (classes, tags, etc), the applied styles will not be exported.

You can see a detailed list with all unsupported by the PDF export features here:

https://docs.telerik.com/devtools/aspnet-ajax/controls/editor/functionality/import-and-export/export-to-pdf#unsupported-features-and-scenarios

Regards,
Vessy
Progress Telerik
