Expanding a cell renders over the top of the item below it

5 posts, 1 answers
  1. marc
    marc avatar
    2 posts
    Member since:
    Jul 2015

    Posted 25 Jul 2015 Link to this post



    I have created a custom ​SummaryViewCell by extending TKListViewCell. This has a default height and shows summary information. Upon being selected it reloads the the item and switches to use a DetailedViewCell which has an increased height.

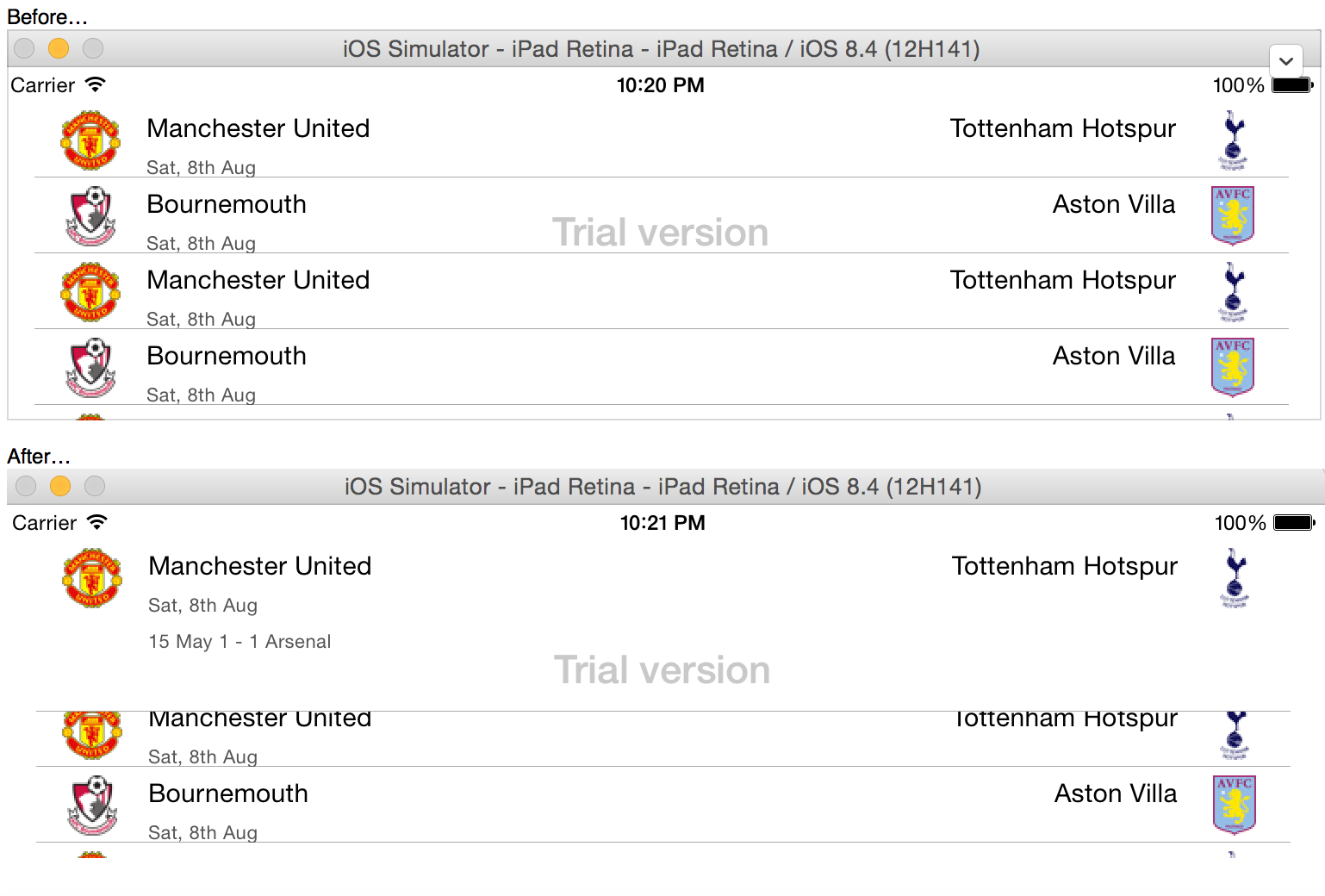

    Whilst this detailed cell displays correctly, it renders over the top of the cell below it. See screenshot attached.

    Does TKListView support mixed height cells? Am i missing something fundamental?

    thanks in advance for your help.

  2. Answer
    Jack
    Admin
    Jack avatar
    2333 posts

    Posted 28 Jul 2015 Link to this post

    Hi Marc,

    Thank you for your interest in our components.

    Yes, TKListView supports cells with different height. However, the default linear layout supports only cells with equal height. The item height is specified by the itemSize property of the layout. Consider the following sample:
    TKListViewLinearLayout *layout = (TKListViewLinearLayout*)listView.layout;
    layout.itemSize = CGSizeMake(0, 50);

    You should use TKListViewStaggeredLayout if you want to use cells with different size. It defines a delegate where you can specify the height for every cell. The code snippet below demonstrates this:
    TKListViewStaggeredLayout *layout = [TKListViewStaggeredLayout new];
    layout.delegate = self;
    layout.spanCount = 1;
    listView.layout = layout;
    - (CGSize)staggeredLayout:(TKListViewStaggeredLayout*)layout sizeForItemAtIndexPath:(NSIndexPath*)indexPath
    {
        if (indexPath.row == 1) {
            return CGSizeMake(0, 100);
        }
        return CGSizeMake(0, 50);
    }

    I hope this helps. Should you have other questions, we will be glad to assist.

    Regards,
    Jack
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. DevCraft banner
  4. marc
    marc avatar
    2 posts
    Member since:
    Jul 2015

    Posted 28 Jul 2015 in reply to Jack Link to this post

    Thank you for the response, that has worked perfectly.
  5. Bhauvik T
    Bhauvik T avatar
    4 posts
    Member since:
    Dec 2009

    Posted 09 Nov 2015 in reply to marc Link to this post

    Hi all,

    My project need to be implemented similar like your . Can you or anyone show me how to change the height of the row that we selected in order to display more data detail of this row. ? When we select another row , the last row will go back to normal .

  6. Jack
    Admin
    Jack avatar
    2333 posts

    Posted 10 Nov 2015 Link to this post

    Hi,

    You should adopt TKListViewLayoutDelegate and override itslistView:layout:sizeForItemAtIndexPath: method:
    let dataSource = TKDataSource()

    override func viewDidLoad() {

        dataSource.itemSource = [ "Item 1""Item 2""Item 3" ]

        let listView = TKListView(frame: self.view.bounds)
        listView.autoresizingMask = UIViewAutoresizing(rawValue: UIViewAutoresizing.FlexibleWidth.rawValue | UIViewAutoresizing.FlexibleHeight.rawValue)
        listView.dataSource = dataSource
        self.view.addSubview(listView)

        let layout = listView.layout as! TKListViewLinearLayout
        layout.delegate = self
    }

    func listView(listView: TKListView, layout: TKListViewLinearLayout, sizeForItemAtIndexPath indexPath: NSIndexPath) -> CGSize {
        if indexPath.row == 1 {
            return CGSize(width:100, height:100)
        }
        return CGSize(width:100, height:50)
    }

    You can invalidate the layout by calling the invalidateLayout method:
    layout.invalidateLayout()

    Should you have any further questions, we will be glad to help.

    Regards,
    Jack
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
