Expander problem in RadControls for Silverlight Q1 2011

18 posts, 2 answers
  1. Josip
    Josip avatar
    17 posts
    Member since:
    Jan 2011

    Posted 16 Mar 2011 Link to this post

    Hi,

    I have noticed strange behaviour in latest build (RadControls for Silverlight Q1 2011)

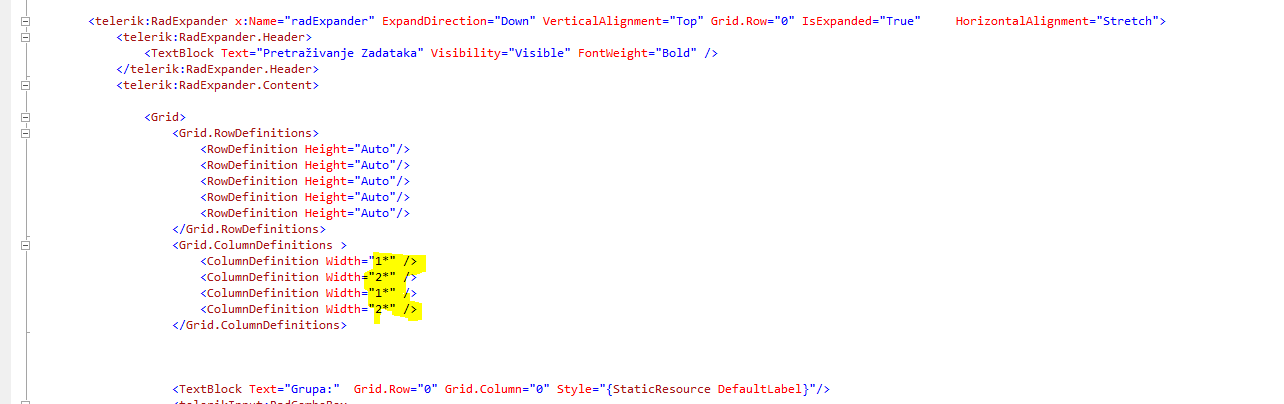

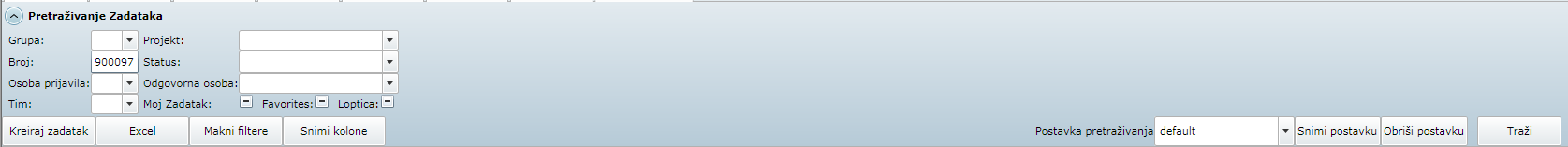

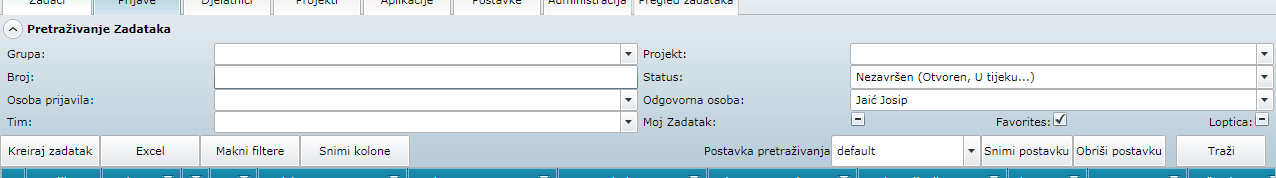

    see images "before", "now"and "code" for more details.
    when i comment expander it works ok
  2. Ivan Paul
    Ivan Paul avatar
    6 posts
    Member since:
    May 2010

    Posted 17 Mar 2011 Link to this post

    Hi there,

    I have also installed the latest build i.e. Q1 2011 and am facing issues with expander. The expander i have has tab control in it which inturn has radgridview and raddatapager. Before installing the Q1 2011 update it use to work fine but now i an mot able to see any controls. It seems that the controls are compressed to the left as i can see only raddatapager but no other controls.

    Thank you,
    Ivan Paul
  3. DevCraft banner
  4. Kwinten Volckaert
    Kwinten Volckaert avatar
    6 posts
    Member since:
    Mar 2005

    Posted 17 Mar 2011 Link to this post

    I'm facing the same problem since 2011 Q1...
    I was close to releasing the site, but now I do not know how to fix this in time
  5. Ivan Paul
    Ivan Paul avatar
    6 posts
    Member since:
    May 2010

    Posted 17 Mar 2011 Link to this post

    hi Kwinten,

    Until Telerik releases a fix or gives a workaround, you can always downgrade the telerik controls version from VS 2010 and go ahead with your release.

    Thank you,
    Ivan Paul
  6. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 17 Mar 2011 Link to this post

    +1
    In my case it is an expander placed in a DockPanel (Dock.Top) but it does not strech to the panels width.
    Have not found a work around yet.
    /Flemming
  7. Answer
    Hristo
    Admin
    Hristo avatar
    352 posts

    Posted 17 Mar 2011 Link to this post

    Hi All,

    Please accept our apologies for the caused inconvenience. During the last Q the expander control went under extensive changes. Our goal was to improve the performance of the control and fix many of the bugs. Unfortunately we have introduced an issue related to the Alignment properties, which is already fixed and you should be able to download it with our next internal build.

     I also attached the updated RadExpander ControlTemplate and style that should resolve your issues. Please give it a try and let us know if it works for you or if we can further assist you.

    Best wishes,
    Hristo
    the Telerik team
  8. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 17 Mar 2011 Link to this post

    Hi,
    The control template fixed part of the problems.
    The expander contents (a RadGridView) is stretched to the panel width;
    but the controls I have in Expander.Header are not correct.
    (I have a DockPanel in the Header with various controls docked left and right).

    Looks like the Header content width is not following the expander width.

    /Flemming
  9. Answer
    Hristo
    Admin
    Hristo avatar
    352 posts

    Posted 17 Mar 2011 Link to this post

    Hello Flemming Clausen,

    In a basic scenario I'm not able to see improper content alignment in the header. I've attached a sample application with the modified RadExpander control template DLLs. Can you take a look at it and modify it, or post a xaml fragment for the header, in order to simulate the issue.
    I'm looking forward to your answer.

    Best wishes,
    Hristo
    the Telerik team
  10. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 17 Mar 2011 Link to this post

    Sorry; but I can't load your project. but did have a look at the code.
    In my program I use a usercontrol as Expander.Header content:

    <telerik:RadExpander Grid.Row="0" Grid.RowSpan="2" IsExpanded="{Binding ShowPipeSystems}"
                              ExpandDirection="Down" Background="Transparent" Style="{StaticResource RadExpanderFix}" >
                                    <telerik:RadExpander.Header>
                                    <view:MainPageCommandBar Margin="0,-5,-5,-5"/>
                                </telerik:RadExpander.Header>
    . . . . .

    The usercontrol is like this:
        <Grid x:Name="LayoutRoot">
            <tDock:RadDockPanel LastChildFill="False" Background="Transparent" HorizontalAlignment="Stretch"
                                MouseLeftButtonDown="RadDockPanelMouseLeftButtonDown">
                <HyperlinkButton tDock:RadDockPanel.Dock="Left" Content="{Binding cmSave, Source={StaticResource cmStrings}}"
                                 Command="{Binding SaveCommand}" />
    .....(more code)

               <StackPanel Orientation="Horizontal" tDock:RadDockPanel.Dock="Right">
                    <HyperlinkButton Content="{Binding cmCalculate, Source={StaticResource cmStrings}}"
                                     Command="{Binding CalculateCommand}" />
                </StackPanel>
            </tDock:RadDockPanel>
        </Grid>

    This used to work in 2010 Q3 (and before)
    /Flemming







  11. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 18 Mar 2011 Link to this post

    Hi,
    Can load the test project now (thanks), and notice this has the same problem as I described.
    (It was not because I used a usercontrol, as I thought for a moment)
    The Dockpanel does not extend to the width of the header (try change background of DockPanel) so the control I want to show 'Right docked' is still in the middle of the header.

    I really hope you can find a solution; before I decide to rool back to Q3.

    Regards
    Flemming

    BTW:
    I have a GridView in the expander content, and for some reason, it shows a horizontal scroolbar allthoug the columns are set to only use avaliable space (using * option in width property), not sure if this is an expander or gridview issue).
  12. Hristo
    Admin
    Hristo avatar
    352 posts

    Posted 18 Mar 2011 Link to this post

    Hi Flemming Clausen,

    Indeed, you correctly described the inappropriate behaviour and I missed what you had in mind. Currently I'm investigating the issue and working on a workaround and we will get back to you as soon as we are done.

    Regards,
    Hristo
    the Telerik team
  13. Hristo
    Admin
    Hristo avatar
    352 posts

    Posted 18 Mar 2011 Link to this post

    Hello All,

    I've prepared a runnable sample with the update control template you should use in order to solve the issues related with the alignment.

    By removing the applied style you should be able to experience the buggy behaviour described early.

    <telerik:RadExpander x:Name="theexpander" Background="Green"
        Style="{StaticResource RadExpanderStyleSL_FIX}"...>

    This fix should be available in the beginning of next week with our latest internal build.

    Hope this will solve your issues. Let us know if you have more hurdles or question.


    Kind regards,
    Hristo
    the Telerik team
  14. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 19 Mar 2011 Link to this post

    Working as expected now; Thank you.
    But please tell me what to do in my original project,
    I'm using a costum theme (modified transparent) and as soon as I activate this, all errors are back (including the contents problem)
    Without the theme, everything is fine.
    What to do and where ????

    regrads
    Flemming
  15. Tina Stancheva
    Admin
    Tina Stancheva avatar
    3298 posts

    Posted 22 Mar 2011 Link to this post

    Hi Flemming Clausen,

    If you can send us your custom theme we will implement all necessary changes for you.

    Looking forward towards your reply,
    Tina Stancheva
    the Telerik team
  16. fbc
    fbc avatar
    11 posts
    Member since:
    Oct 2009

    Posted 22 Mar 2011 Link to this post

    Thank you;
    just 'fix' Telerik Transparent Theme source (XML); I only have a few changes of my own, and these are easy to implement again
    (if your changes affects any of mine)

    /Flemming
  17. Tina Stancheva
    Admin
    Tina Stancheva avatar
    3298 posts

    Posted 25 Mar 2011 Link to this post

    Hi Flemming Clausen,

    In the Themes project attached to the other thread you started, you can find the Transparent theme files as well. Please let us know if they work for you or if you need more info.

    Greetings,
    Tina Stancheva
    the Telerik team
  18. Simon
    Simon avatar
    159 posts
    Member since:
    Sep 2010

    Posted 31 Mar 2011 Link to this post

    Hello Tina,

    Does it mean that the RadExpander header stretch issue won't be fixed?

    Even if your solution can be used as a workaround for Flemming Clausen issue, it does involve a lot of XAML management all over the place.  I'm probably not the only one missing the old RadExpander Header stretch but if you say it can't be fixed, then I'll review the way I manage my layout.

    Regards,

    Simon

  19. Tina Stancheva
    Admin
    Tina Stancheva avatar
    3298 posts

    Posted 01 Apr 2011 Link to this post

    Hi Simon,

    The RadExpander issue is already fixed. You can test it with the latest internal build.

    Let us know whether the fix works for you or if you need more info.

    Best wishes,
    Tina Stancheva
    the Telerik team
