Error with UI for WPF Q1 2015 SP1

5 posts, 0 answers
  1. Vikas
    Vikas avatar
    64 posts
    Member since:
    May 2014

    Posted 12 May 2015 Link to this post

    I recently upgraded my telerik DLL's to UI for WPF Q1 2015 SP1, After upgrading i am getting error with scrollviewerstyle.

    I am overriding scrollviewer style <Style TargetType="{x:Type ScrollViewer}" BasedOn="{StaticResource ScrollViewerStyle}"> .... </style> and this was working fine with older version of telerik, I had 2014 version.

    I am using implicit styles so i have Syste.Windows.xaml file in my project and i am loading it in my app.xaml.cs

    <ResourceDictionary.MergedDictionaries>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/System.Windows.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.xaml"/> .....

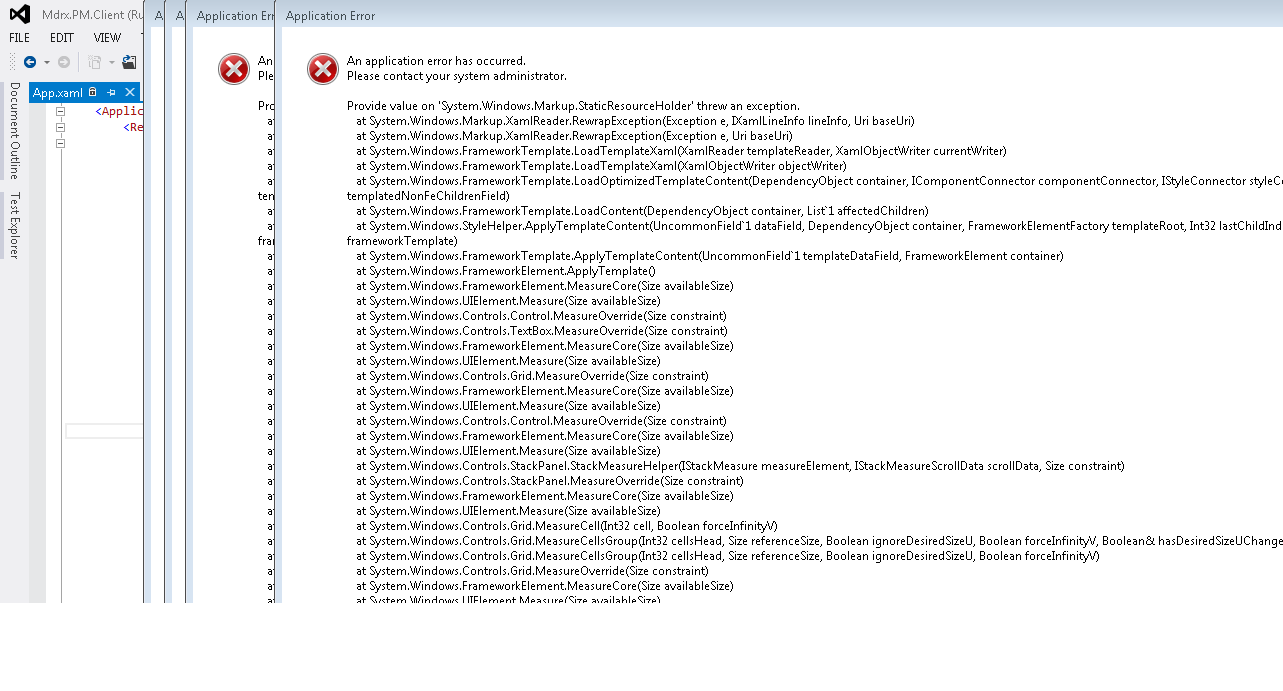

    If i use the old version of system.windows.xaml or if i remove my style everything works but not with the latest version. I am getting StaticResourceHolder threw an exception. I have attached screen shot  of the error.

    Thanks

    vikas





  2. Vikas
    Vikas avatar
    64 posts
    Member since:
    May 2014

    Posted 12 May 2015 Link to this post

    My scrollviewer style

    <!-- Updated-->
        <Style x:Key="CustomScrollBarStyle" TargetType="{x:Type ScrollBar}">
            <Setter Property="SnapsToDevicePixels" Value="True" />
            <Setter Property="OverridesDefaultStyle" Value="true" />
            <Style.Triggers>
                <Trigger Property="Orientation" Value="Horizontal">
                    <Setter Property="Width" Value="Auto" />
                    <Setter Property="Height" Value="15" />
                    <Setter Property="Template" Value="{StaticResource HorizontalScrollBar}" />
                </Trigger>
                <Trigger Property="Orientation" Value="Vertical">
                    <Setter Property="Width" Value="15" />
                    <Setter Property="Height" Value="Auto" />
                    <Setter Property="Template" Value="{StaticResource VerticalScrollBar}" />
                </Trigger>
            </Style.Triggers>
        </Style>

        <!-- Add ScrollViewer Style which includes CustomScrollBarStyle inside -->
        <Style BasedOn="{StaticResource ScrollViewerStyle}" TargetType="ScrollViewer">
        <!--<Style TargetType="{x:Type ScrollViewer}" BasedOn="{StaticResource ScrollViewerStyle}">-->
                <!--<Setter Property="Template">
                    <Setter.Value>
                        <ControlTemplate TargetType="ScrollViewer">
                            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}">
                                <Grid HorizontalAlignment="Stretch" VerticalAlignment="Stretch" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">
                                    <Grid.ColumnDefinitions>
                                        <ColumnDefinition Width="*"/>
                                        <ColumnDefinition Width="Auto"/>
                                    </Grid.ColumnDefinitions>
                                    <Grid.RowDefinitions>
                                        <RowDefinition Height="*"/>
                                        <RowDefinition Height="Auto"/>
                                    </Grid.RowDefinitions>
                                    <ScrollContentPresenter
                                        Grid.Column="0"
                                        Grid.Row="0"
                                        Margin="{TemplateBinding Padding}"
                                        Content="{TemplateBinding Content}"
                                        ContentTemplate="{TemplateBinding ContentTemplate}"
                                        CanContentScroll="{TemplateBinding CanContentScroll}"
                                        HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                        VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
                                    <Border Grid.Column="1" Grid.Row="1" Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}" Margin="0 0 -1 -1">
                                        <Border
                                            Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}"
                                            BorderThickness="0 0 1 1"
                                            BorderBrush="{StaticResource ScrollBarOuterBorder_Normal}"
                                            Background="{StaticResource ScrollViewerIntersectionRectangle}"/>
                                    </Border>
                                    <ScrollBar x:Name="PART_VerticalScrollBar"
                                        Margin="0 0 -1 0"
                                        BorderThickness="{StaticResource ScrollViewerVerticalScrollBarBorderThickness}"
                                        Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}"
                                        Grid.Column="1"
                                        Grid.Row="0"
                                        Orientation="Vertical"
                                        Value="{Binding VerticalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}"
                                        ViewportSize="{TemplateBinding ViewportHeight}"
                                        Style="{StaticResource CustomScrollBarStyle}"
                                        IsTabStop="False"
                                        Minimum="0"
                                        Maximum="{TemplateBinding ScrollableHeight}"/>
                                    <ScrollBar x:Name="PART_HorizontalScrollBar"
                                        Margin="0 0 0 -1"
                                        BorderThickness="{StaticResource ScrollViewerHorizontalScrollBarBorderThickness}"
                                        Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}"
                                        Grid.Column="0"
                                        Grid.Row="1"
                                        Orientation="Horizontal"
                                        Value="{Binding HorizontalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}"
                                        ViewportSize="{TemplateBinding ViewportWidth}"
                                        Style="{StaticResource CustomScrollBarStyle}"
                                        IsTabStop="False"
                                        Minimum="0"
                                        Maximum="{TemplateBinding ScrollableWidth}"/>
                                </Grid>
                            </Border>
                        </ControlTemplate>
                    </Setter.Value>
                </Setter>-->
            </Style>

  3. UI for WPF is Visual Studio 2017 Ready
  4. Vanya Pavlova
    Admin
    Vanya Pavlova avatar
    2019 posts

    Posted 15 May 2015 Link to this post

    Hello Vikas,


    Looking at the exception a resource required by the style could not be resolved.
    Can you clarify which built-in Telerik theme you are currently using as base?

    Based on this information we will try to isolate the problem by our side.
    I look forward to hearing from you.


    Regards,
    Vanya Pavlova
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  5. Vikas
    Vikas avatar
    64 posts
    Member since:
    May 2014

    Posted 15 May 2015 in reply to Vanya Pavlova Link to this post

    I am using these resources, the error is coming from system.windows.xaml, it has scrollviewer style.

    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/System.Windows.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.Input.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.GridView.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.Data.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.Docking.xaml"/>
                    <ResourceDictionary Source="/ntierHealth;component/Resources/Themes/Telerik.Windows.Controls.Navigation.xaml"/>

  6. Vanya Pavlova
    Admin
    Vanya Pavlova avatar
    2019 posts

    Posted 19 May 2015 Link to this post

    Hi Vikas,


    Do we have to peform some tests against specific Telerik built-in theme?


    Regards,
    Vanya Pavlova
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
