Enabling Birdeye view in bing map

14 posts, 1 answers
  1. Kevin Sonney
    Kevin Sonney avatar
    3 posts
    Member since:
    Jun 2010

    Posted 29 Jul 2010 Link to this post

    The birdseye view option is disabled when I use the bing maps provider, and setting it via code doesn't appear to download the tiles and displays an all gray map.  Am I missing a setting somewhere to turn this on?

    this.radMap.Provider = new BingMapProvider(MapMode.Road, true, "mykey");
    this.radMap.AllowedCommands = "Road,Aerial,Birdseye,IsLabelVisible";
  2. Answer
    Andrey
    Admin
    Andrey avatar
    1681 posts

    Posted 30 Jul 2010 Link to this post

    Hello Kevin Sonney,

    The Birds Eye mode works for zoom levels 19 and 20 only and not all earth regions have tiles for this mode. To get "Birds Eye" command enabled in UI you should set map zoom level to 19 or 20 using mouse, or zoom slider (i.e. maximum zoom-in). The same is true for the code -- you should set ZoomLevel property to 19 or 20, and then switch provider to the Birdseye mode.

    Hope this helps.

    Regards,
    Andrey Murzov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. DevCraft banner
  4. Kevin Sonney
    Kevin Sonney avatar
    3 posts
    Member since:
    Jun 2010

    Posted 06 Aug 2010 Link to this post

    Understood, but thats a bit confusing.  It should behave like the bing maps website and switch over and automatically zoom in to the appropriate zoom level.
  5. Andrey
    Admin
    Andrey avatar
    1681 posts

    Posted 09 Aug 2010 Link to this post

    Hello Kevin Sonney,

    Unfortunately, the change you requested is not in our plans for Q3 2010 and it does not seem to be a trivial one. I will make sure it is reconsidered when discussing our future plans, but I am afraid no certain time frame can be given at the moment.

    All the best,
    Andrey Murzov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  6. Todd Stanwood
    Todd Stanwood avatar
    1 posts
    Member since:
    Dec 2009

    Posted 23 May 2011 Link to this post

    Andrey,

    Will you have the same "Automatic" functionality that www.bingmaps.com has.

    Go here: http://www.bing.com/maps/#JnE9LmJvc3RvbiUyYm1hJTdlc3N0LjAlN2VwZy4xJmJiPTQyLjM3NzYxNDkxNDUyNDglN2UtNzEuMDI4MzM0ODI2NTQ3OSU3ZTQyLjM2MzQ0MjM1NjgzOTYlN2UtNzEuMDU4NzYxODA1NjEyOA==

    Select "Road" then "Automatic."
    Then zoom to Boston and watch the map change automatically to "Birds Eye."

    This would be a great feature because the user doesn't need to think.

    To be continued...

    Todd

    P.S. I just read Kevin's reply, which is the same as mine above. He's correct it really needs to be automatic.
  7. Andrey
    Admin
    Andrey avatar
    1681 posts

    Posted 26 May 2011 Link to this post

    Hello Todd,

    We will implement this functionality in the future releases of the RadMap control. You can check availability of this feature using our PITS:

    http://www.telerik.com/support/pits.aspx#/public/silverlight/6204

    Regards,
    Andrey Murzov
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  8. Nandhakumar
    Nandhakumar avatar
    6 posts
    Member since:
    Sep 2014

    Posted 29 Sep 2015 Link to this post

    Hi Andrey,

        Yeah the bird's eye view is enabled at the zoom level 19 or 20 but the map is not loading properly

  9. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 01 Oct 2015 Link to this post

    Hi Nandhakumar,

    I cannot find the attached image. Can you please rename it to something else (like "birdeyeview.png") and send it over again? Also, can you explain what do you mean by saying that the map doesn't load properly and at what coordinates you are zooming?

    Thank you for any information you can provide.

    Regards,
    Martin
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  10. Nandhakumar
    Nandhakumar avatar
    6 posts
    Member since:
    Sep 2014

    Posted 12 Oct 2015 Link to this post

    Hi Martin,

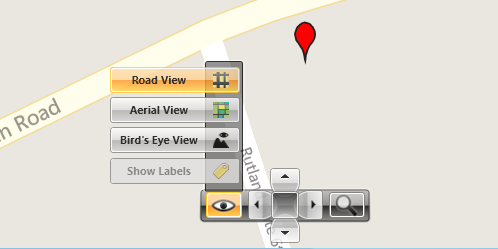

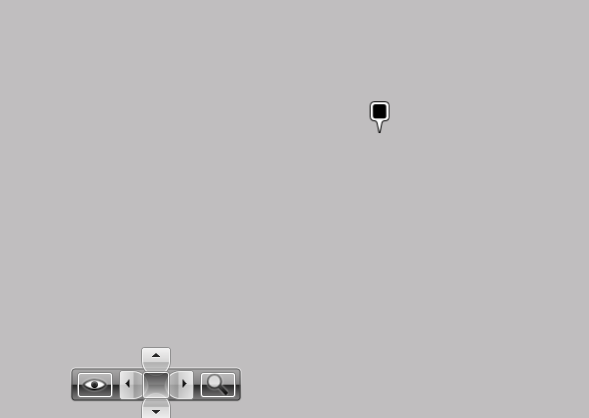

    When i try to zoom beyond level 19, the bird's eye view is enabled but when i click that view, the map displays nothing, instead of showing route, it shows fully grey colored map. Am not able to see map in bird's eye view...

  11. Nandhakumar
    Nandhakumar avatar
    6 posts
    Member since:
    Sep 2014

    Posted 13 Oct 2015 Link to this post

    Hi Martin,

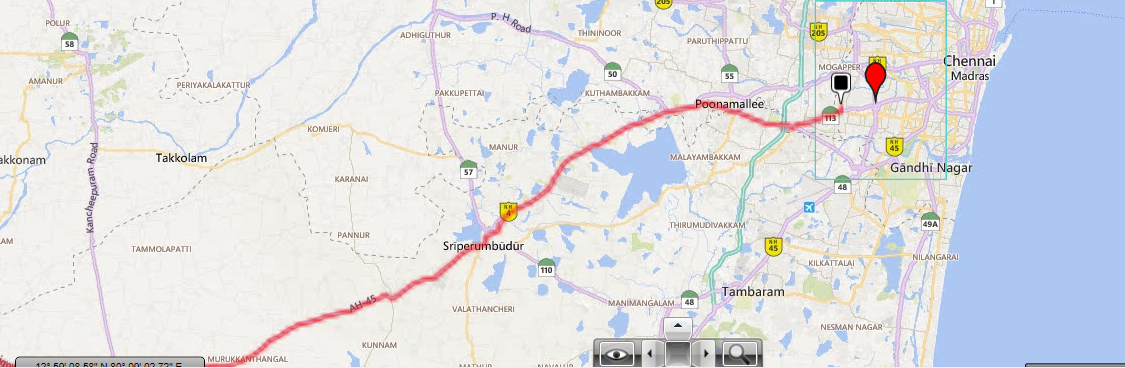

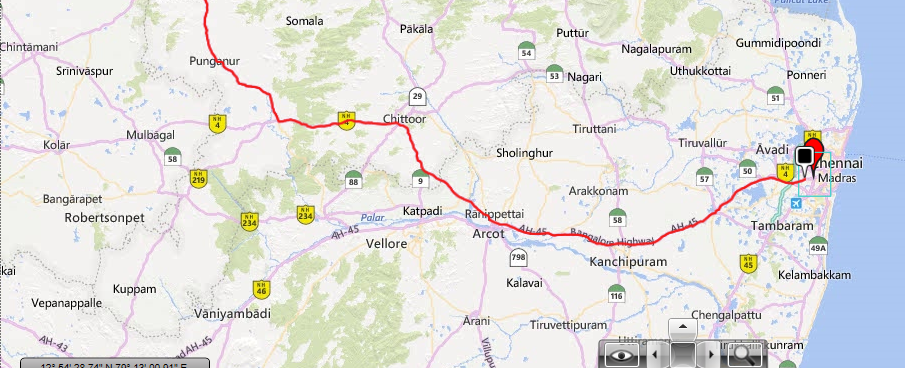

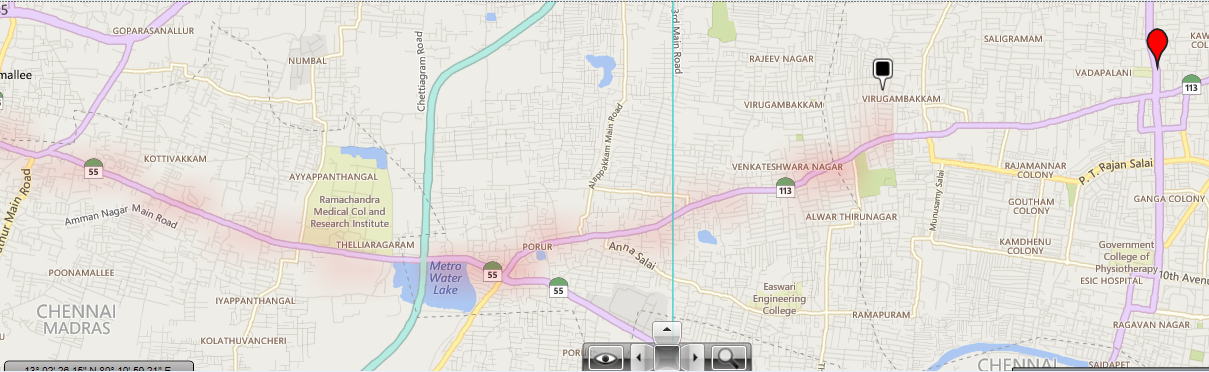

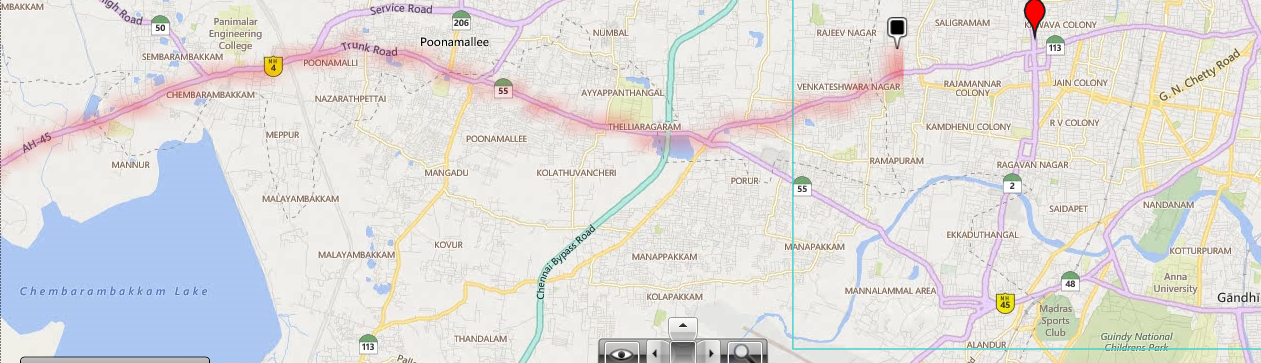

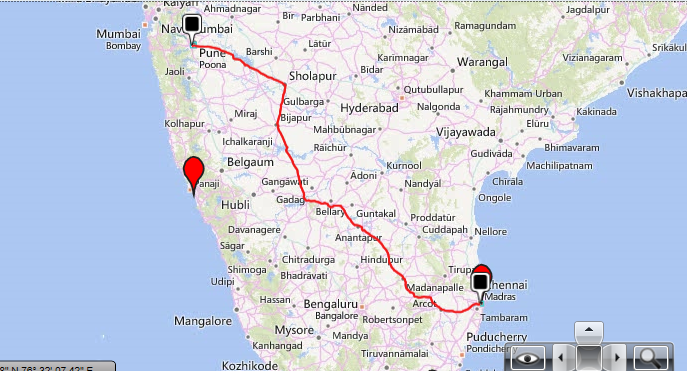

    See the below images. Telerik map routing doesn't show the routes clearly beyond particular zoom levels. Please give some suggestion to this.

  12. Nandhakumar
    Nandhakumar avatar
    6 posts
    Member since:
    Sep 2014

    Posted 13 Oct 2015 Link to this post

    Is it possible to find and draw all possible routes between two locations in telerik RadMap using BingMap provider in c#?
  13. Nandhakumar
    Nandhakumar avatar
    6 posts
    Member since:
    Sep 2014

    Posted 13 Oct 2015 Link to this post

    how to find and draw all possible routes between two locations in telerik RadMap using BingMap provider
  14. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 15 Oct 2015 Link to this post

    Hi nandha,

    Thank you for the attachments. I will contact you with more information on the matter in the next few hours.

    Regards,
    Martin
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  15. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 15 Oct 2015 Link to this post

    Hi nandha,

    As Andrey stated in one of the previous replies the BirdsEye mode loads tiles only if the specific region contains such. Otherwise, this mode won't be enabled. If this is not the case you can check the following issue report logged in our feedback portal that might be related to your case. You can follow the report in order to be notified as soon there is any change in its status.

    About the blurry routes, we are not aware of such behavior. Can you please elaborate more on this case by telling me on what zoom level the blur occurs and how you are drawing the route. Also, a runnable code snippets demonstrating your implementation will be quite useful in investigating this.

    As for all possible routes, note that this is quite relative term because a possible route between two locations could tour the entire continent regardless the distance between the locations. I guess you mean, the top shortest routes. In both cases BingMapProvider doesn't support such functionality, it only finds the most short route between the locations. However, you can check the BingMaps API and see if it allows getting the information that you need. If so, you can create a request to the API in code and based on the return results draw map shapes on the RadMap control.

    Since, your last two questions are not related to this topic, I would ask you if you have any further questions on the matter to post them in separate forums or support tickets. This way searching in the communication history (forum or support threads) will be easier.

    Regards,
    Martin
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
