Editor with rulers

7 posts, 0 answers
  1. Fit2Page
    Fit2Page avatar
    345 posts
    Member since:
    Feb 2007

    Posted 28 Oct 2011 Link to this post

    Is there somebody who managed to show a vertical and horizontal ruler next tot the editor?
    This would be handy for customers who try to determine size of pictures on a page.

    Thanks,
    Marc
  2. Rumen
    Admin
    Rumen avatar
    12849 posts

    Posted 28 Oct 2011 Link to this post

    Hi Fit2page,

    For the time being we do not plan to provide such a feature, because it can be achieved with a little bit of CSS and an image. The idea I can give you is the following:

    1. Use IE DevToolbar or FireBug to inspect the parent element of the content are <iframe />. You will notice that it is a <td /> with a .reContentCell CSS class name.
    2. Create a large ruler image with ticks and measurement units (for example 2000 x 2000 pixels, the idea is that it should be larger than your largest RadEditor) with a vertical and horizontal ruler. It should look like a vertically flipped "L".
    3. Add padding-top to .reContentCell equal to the height of the horizontal ruler (the ruler itself, not the height of the entire image). Let's assume that it is 20 pixels high.
    4. Add padding-left to .reContentCell equal to the width of the horizontal ruler (the ruler itself, not the width of the entire image). Let's assume that it is 20 pixels wide.
    5. In your stylesheet use a CSS selector like this one:

    td.reContentCell
    {
    padding: 20px 0 0 20px !important;
    background: url('Ruler.gif') no-repeat !important;
    }


    Greetings,
    Rumen
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Peter Stanford
    Peter Stanford avatar
    7 posts
    Member since:
    Mar 2010

    Posted 30 Jun 2015 Link to this post

    Hi,

    I was just looking to see whether there had been any change to Telerik's position on this since this post about 4 years ago? We demonstrated the RadEditor to a group of users today who are all MS Word users and they wanted to know how we could show the ruler.



    Thanks and best regards



    Peter

  5. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3602 posts

    Posted 02 Jul 2015 Link to this post

    Hi Peter,

    Rulers are not something that is generally available for HTML because it does not have a concept of paging like an MS Word document has. Thus, rulers are not available in RadEditor.

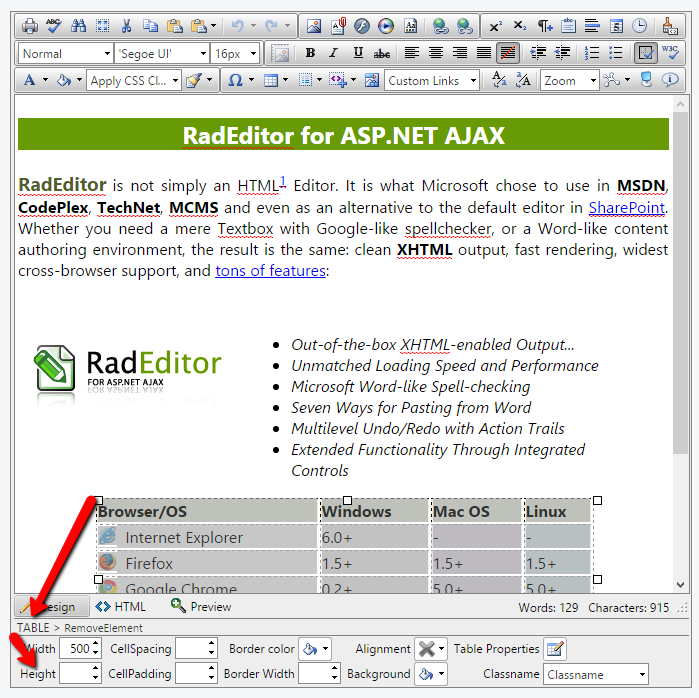

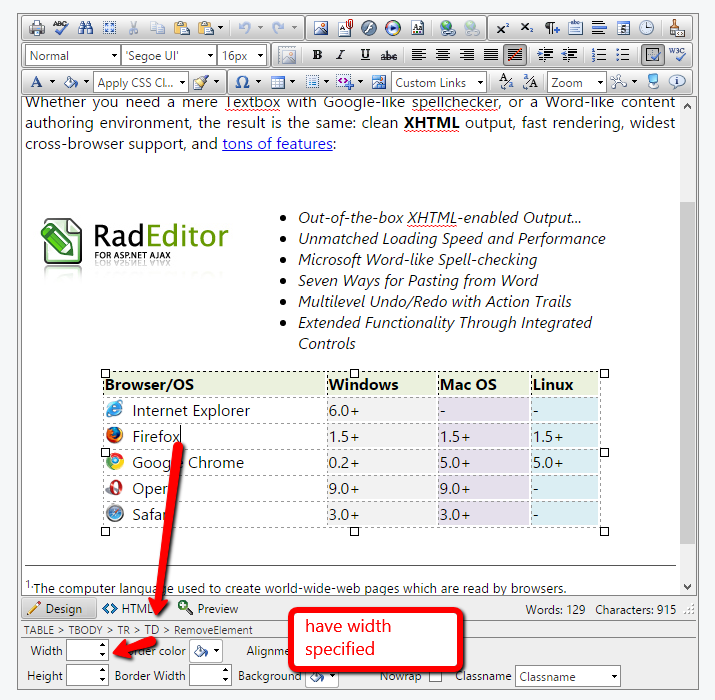

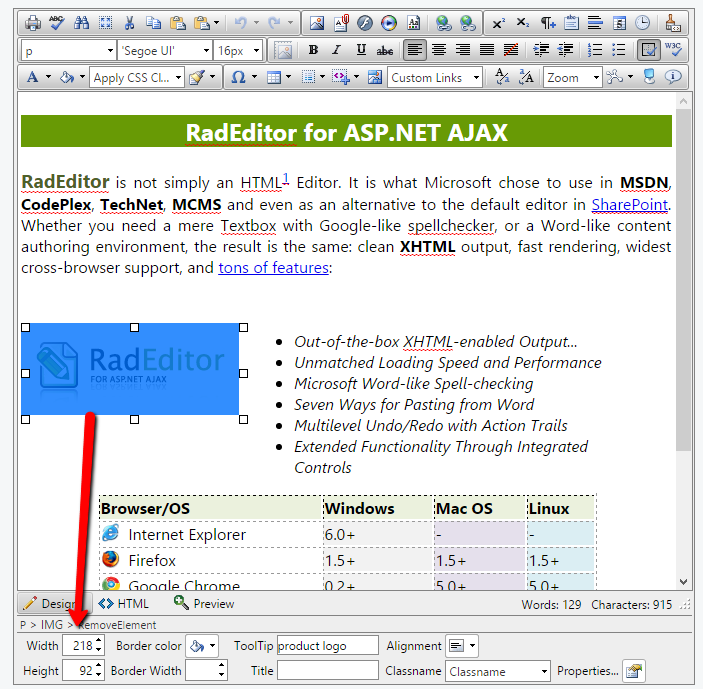

    You can, however, see the size of the HTML elements in the DomInspector module. I am attaching creenshots that shows this. Note that many HTML elements are block elements so they do not need/have width specified which should be expected.

    If you want to create paged documents, I can suggest looking into the RadRichTextBox for Silverlight: http://demos.telerik.com/silverlight/#RichTextBox/TelerikEditor.

    Regards,

    Marin Bratanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Peter Stanford
    Peter Stanford avatar
    7 posts
    Member since:
    Mar 2010

    Posted 02 Jul 2015 Link to this post

    Hi Marin,

    Thanks for the update. I understand the rationale. I'm not sure I understand the point about the Silverlight Rich Text editor though. How would this be incorporated into a standard ASPX page? I'll forward this to the developers so they're aware of what the tool can't do as well as what it can.

    One of our challenges is that we have to produce print-ready PDF documents from the content we enter into the RadEditor. Even though we encourage users(external to our organisation) to look at things online, our contract with a Federal Government department stipulates that we generate output that can be given directly to the printers. We're going to review the InDesign APIs because even though we got very close exporting content to MS Word it wasn't good enough for publishing. The content wasn't created using RadEditor but it was HTML.

    We'll keep researching how this will work.

    Thanks and best regards

     Peter

  7. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3602 posts

    Posted 02 Jul 2015 Link to this post

    Hello Peter,

    Silverlight apps can be added to any page that results in HTML in the browser, all you need is the XAP file the Silverlight project will produce. Here is a tutorial: https://msdn.microsoft.com/en-us/library/cc189089(v=vs.95).aspx.

    As for PDF export - RadEditor for ASP.NET AJAX offers this feature: http://demos.telerik.com/aspnet-ajax/editor/examples/import-export/pdf-export/defaultcs.aspx. You may also find useful this article: http://docs.telerik.com/devtools/aspnet-ajax/controls/editor/functionality/toolbars/buttons/examples/page-break-button.

    Regards,

    Marin Bratanov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  8. Peter Stanford
    Peter Stanford avatar
    7 posts
    Member since:
    Mar 2010

    Posted 02 Jul 2015 Link to this post

    Hi Marin,

    Thanks for the quick response and the additional links. The PDF issue depends on whether we can explicitly create a page size that includes trim and bleed, i.e. the ability to add extra space to the page which we can do in InDesign but were not able to do in MS Word, the difference of course being that InDesign is a publishing tool and MS Word is not.

    I'll forward these details to the developers as well and see what we think is the best way to do this moving forward.

    Thanks and best regards

    Peter
