Duplicate values in Axis Y

3 posts, 0 answers
  1. Gautam
    Gautam avatar
    4 posts
    Member since:
    Sep 2010

    Posted 09 Mar 2011 Link to this post

    Hi telerik team,

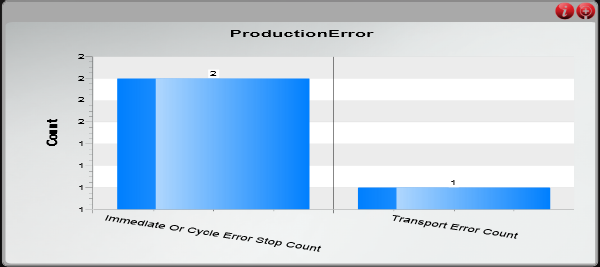

    I tried to display a chart with datapoints having YValues of 1 and 2 and the chart is generated with duplicate Y values as 1,1,1,1, 2,2,2,2. I am using the ItemsSource property to bind the chart data series. (Please find the attached screen shots).

    Is there a way to avoid these duplicate values?
  2. Rahul
    Rahul avatar
    116 posts
    Member since:
    Feb 2011

    Posted 10 Mar 2011 Link to this post

    I'm also working on Multiple y axis. Can u please share your code with me for multiple Y-axis.
    Thanks in advance.
  3. DevCraft banner
  4. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 14 Mar 2011 Link to this post

    Hi,

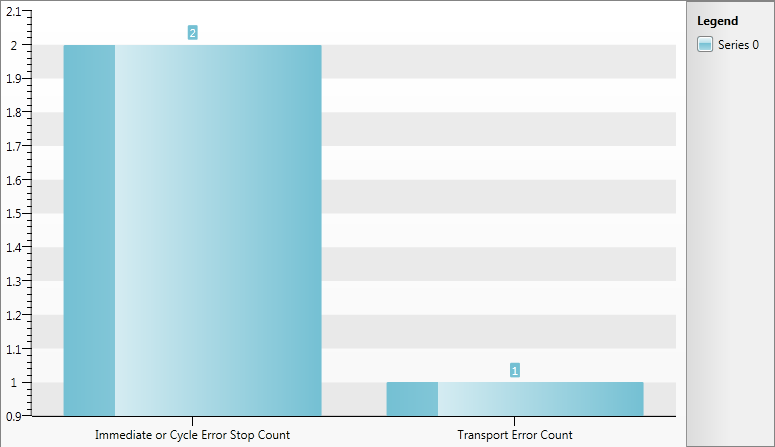

    @Gautam - I couldn't reproduce the issue you are facing. You can see a sample image attached created with the following code and the AxisY doesn't visualize duplicated Y values:
    public partial class Example : UserControl
       {
           public Example()
           {
               InitializeComponent();
               List<Manufacturer> data = new List<Manufacturer>();
               data.Add(new Manufacturer("Immediate or Cycle Error Stop Count", 2));
               data.Add(new Manufacturer("Transport Error Count", 1));
               SeriesMapping seriesMapping = new SeriesMapping();
               seriesMapping.ItemMappings.Add(new ItemMapping("Name", DataPointMember.XCategory));
               seriesMapping.ItemMappings.Add(new ItemMapping("Value", DataPointMember.YValue));
               this.RadChart1.SeriesMappings.Add(seriesMapping);
               RadChart1.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Inside;
               this.RadChart1.ItemsSource = data;
           }
           public class Manufacturer
           {
               public Manufacturer(string name, int value)
               {
                   this.Name = name;
                   this.Value = value;
               }
               public string Name
               {
                   get;
                   set;
               }
               public int Value
               {
                   get;
                   set;
               }

       }

    The Chart is databound using the Manual Series Mappings.

    @Rahul - you can find our help topic with source code helpful for creating RadChart with Multiple Y Axes.

    All the best,
    Evgenia
    the Telerik team
