Drop Down does not close.

[Yogendra]

Hi,

i am working with RadDiagram and customizing the Style Tab of  setting Pane using this code :-

<telerik:RadComboBox telerik:SettingsPaneView.EditorItemType="Shapes, Connections"
                                                     telerik:SettingsPaneView.EditorPropertyName="StrokeDashArray"
                                                     telerik:SettingsPaneView.EditorValue="{Binding SelectedItem,
                                                                                                    Mode=TwoWay,
                                                                                                    RelativeSource={RelativeSource Self}}">
                                    <telerik:RadComboBox.ItemTemplate>
                                        <DataTemplate>
                                            <Grid Width="140" Height="20">
                                                <Path Margin="5"
                                                      VerticalAlignment="Center"
                                                      Data="M0,0L215,0"
                                                      Fill="{Binding Foreground,
                                                                     RelativeSource={RelativeSource FindAncestor,
                                                                                                    AncestorLevel=1,
                                                                                                    AncestorType=ContentControl}}"
                                                      Stroke="{Binding Foreground,
                                                                       RelativeSource={RelativeSource FindAncestor,
                                                                                                      AncestorLevel=1,
                                                                                                      AncestorType=ContentControl}}"
                                                      StrokeDashArray="{Binding}" />
                                            </Grid>
                                        </DataTemplate>
                                    </telerik:RadComboBox.ItemTemplate>
                                    <telerik:RadComboBox.SelectionBoxTemplate>
                                        <DataTemplate>
                                            <Grid Width="140" Height="20">
                                                <Path Margin="5"
                                                      VerticalAlignment="Center"
                                                      Data="M0,0L215,0"
                                                      Fill="{Binding Foreground,
                                                                     RelativeSource={RelativeSource FindAncestor,
                                                                                                    AncestorLevel=1,
                                                                                                    AncestorType=ContentControl}}"
                                                      Stroke="{Binding Foreground,
                                                                       RelativeSource={RelativeSource FindAncestor,
                                                                                                      AncestorLevel=1,
                                                                                                      AncestorType=ContentControl}}"
                                                      StrokeDashArray="{Binding}" />
                                            </Grid>
                                        </DataTemplate>
                                    </telerik:RadComboBox.SelectionBoxTemplate>

But using this code, when change the selection of Border combo box, drop down is open , and select item then drop down does not colse
and selected item is not show in combo box.

Please suggest me something.
Thanks in advanced.

[Petar Mladenov]

Hi Yogendra,

First, I wonder why the RadComboBox has no ItemsSource set. I used the following code:

                                    <telerik:RadComboBox telerik:SettingsPaneView.EditorItemType="Shapes, Connections"
                                                     telerik:SettingsPaneView.EditorPropertyName="StrokeDashArray"
                                                         ItemsSource="{data:StrokeDashArray}"
                                                     telerik:SettingsPaneView.EditorValue="{Binding SelectedItem,
                                                                                                    Mode=TwoWay,
                                                                                                    RelativeSource={RelativeSource Self}}">
                                        <telerik:RadComboBox.ItemTemplate>
....

and everything worked successfully. Could you please check it out in our test project and let us know if it helps you proceed further? Regards,
Petar Mladenov
Telerik

[Yogendra]

Thanks for reply back.

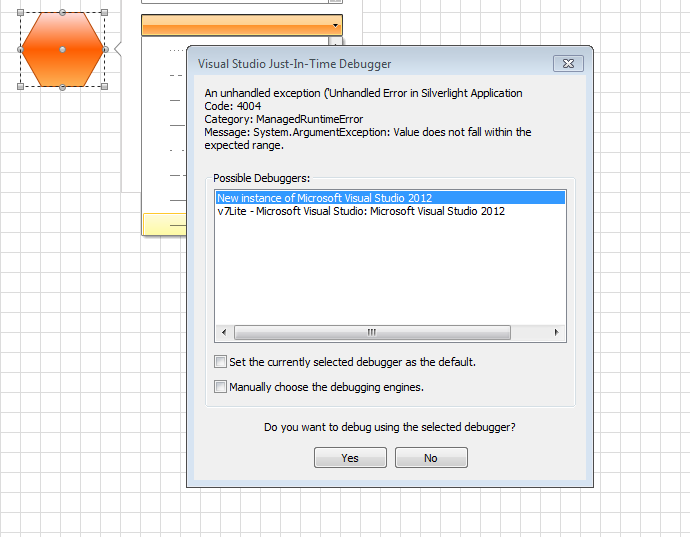

But it's not working.when i am running your project , application gets creches, unable to find the issue. I am using same xaml as in your demo.project. But it still not working. here is my code:-

<telerik:RadComboBox telerik:SettingsPaneView.EditorItemType="Shapes, Connections"
                                                               telerik:SettingsPaneView.EditorPropertyName="StrokeDashArray"
                                                               ItemsSource="{data:StrokeDashArray}"
                                                               telerik:SettingsPaneView.EditorValue="{Binding SelectedItem,
                                                                                                  Mode=TwoWay,
                                                                                                  RelativeSource={RelativeSource Self}}">
                                              <telerik:RadComboBox.ItemTemplate>
                                                  <DataTemplate>
                                                      <Grid Width="140"
                                                            Height="20">
                                                          <Path Margin="5"
                                                                VerticalAlignment="Center"
                                                                Data="M0,0L215,0"
                                                                Fill="{Binding Foreground,
                                                                   RelativeSource={RelativeSource FindAncestor,
                                                                                                  AncestorLevel=1,
                                                                                                  AncestorType=ContentControl}}"
                                                                Stroke="{Binding Foreground,
                                                                     RelativeSource={RelativeSource FindAncestor,
                                                                                                    AncestorLevel=1,
                                                                                                    AncestorType=ContentControl}}"
                                                                StrokeDashArray="{Binding}" />
                                                      </Grid>
                                                  </DataTemplate>
                                              </telerik:RadComboBox.ItemTemplate>
                                              <telerik:RadComboBox.SelectionBoxTemplate>
                                                  <DataTemplate>
                                                      <Grid Width="140"
                                                            Height="20">
                                                          <Path Margin="5"
                                                                VerticalAlignment="Center"
                                                                Data="M0,0L215,0"
                                                                Fill="{Binding Foreground,
                                                                   RelativeSource={RelativeSource FindAncestor,
                                                                                                  AncestorLevel=1,
                                                                                                  AncestorType=ContentControl}}"
                                                                Stroke="{Binding Foreground,
                                                                     RelativeSource={RelativeSource FindAncestor,
                                                                                                    AncestorLevel=1,
                                                                                                    AncestorType=ContentControl}}"
                                                                StrokeDashArray="{Binding}" />
                                                      </Grid>
                                                  </DataTemplate>
                                              </telerik:RadComboBox.SelectionBoxTemplate>

                                              <DoubleCollection>1 3</DoubleCollection>
                                              <DoubleCollection>4 4</DoubleCollection>
                                              <DoubleCollection>10 10</DoubleCollection>
                                              <DoubleCollection>15 15</DoubleCollection>
                                              <DoubleCollection>2 10</DoubleCollection>
                                              <DoubleCollection>10 3</DoubleCollection>
                                              <DoubleCollection>20 6</DoubleCollection>
                                              <DoubleCollection />
                                          </telerik:RadComboBox>

Please suggest me something.

Regards

Yogendra kanojia

[Petar Mladenov]

Hi Yogendra,

Can you please confirm you are using our latest official Releases Q2 2013 or Q2 2013 SP ?
If you are using this code with older assemblies we would kindly ask you to upgrade to our latest versions.

Regards,
Petar Mladenov
Telerik
