Drilldown from vb code behind

4 posts, 0 answers
  1. Ian
    Ian avatar
    1 posts
    Member since:
    May 2014

    Posted 22 May 2014 Link to this post

    I have drilldown enabled on my Org Chart, but I want to load the page "already drilled down" to a specific Node ID

    I'll know the Node ID when the page loads

    So is this possible, and if so, how?

    Thanks
  2. Peter Filipov
    Admin
    Peter Filipov avatar
    1028 posts

    Posted 27 May 2014 Link to this post

    Hello Ian,

    Thank you for contacting Telerik Support.

    The RadOrgChart control has a client side API which allows to drill down on a particular node. Here is a code snippet how it could be done:
    $find("RadOrgChart1").drillDownOnNode("0:0") //you should pass the hierarchical id of the Node.


    I will be glad to assist you further.

    Regards,
    Peter Filipov
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Kevin Dugan Jr
    Kevin Dugan Jr avatar
    5 posts
    Member since:
    Aug 2014

    Posted 03 Feb in reply to Peter Filipov Link to this post

    Regarding "0:0"  ... is one the level and the other the Node ID?  Can you explain with some detail or example please?
  5. Peter Filipov
    Admin
    Peter Filipov avatar
    1028 posts

    Posted 08 Feb Link to this post

    Hi,

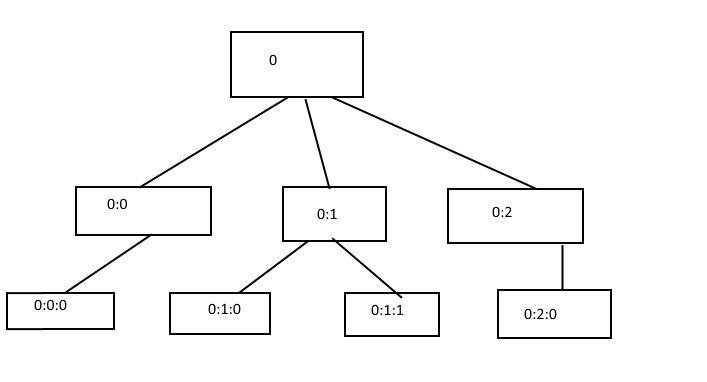

    I have attached a picture how the hierarchical index is determined. The id of the node is not involved in the calculation.. E.g. 0:0 means that the this is the first node of the root node. 0:1:0 this means that the node is the first child of the second child of the root node.

    Regards,
    Peter Filipov
    Telerik
