Drag and drop files from the Desktop (or Windows Explorer) to RadListView

3 posts, 0 answers
  1. Alejandro
    Alejandro avatar
    2 posts
    Member since:
    Nov 2013

    Posted 14 Jan 2014 Link to this post

    Hello guys, I hope you are doing great.

    I'm working on a WinForms project. One of the requirements is to drag files from the Desktop (or Windows Explorer) and drop them on a RadListView component.

    I set the AllowDrop and AllowDragDrop properties of the my listView object, and then I added the following events:

    private void listView_DragEnter(object sender, DragEventArgs e)
    {
        MessageBox.Show("DragEnter");
    }

    private void listView_DragDrop(object sender, DragEventArgs e)
    {
        MessageBox.Show("DragDrop");
    }

    When I drag an item from the Desktop and enter the listView area, I get the "DragEnter" message. If I comment that code out, and then drop an item on the listView, I don't get the "DragDrop" message.

    My first question is: is it possible to achieve what I'm trying to do? And if it is possible, my second question is: what am I doing wrong?

    I created a small test project to isolate the situation. The following is the complete code of the form class:

    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Text;
    using System.Windows.Forms;
    using Telerik.WinControls;

    namespace DragFromDesktop
    {
        public partial class DragFromDesktopForm : Telerik.WinControls.UI.RadForm
        {
            public DragFromDesktopForm()
            {
                InitializeComponent();
            }

            private void DragFromDesktopForm_Load(object sender, EventArgs e)
            {

            }

            private void closeButton_Click(object sender, EventArgs e)
            {
                this.Close();
            }

            private void listView_DragEnter(object sender, DragEventArgs e)
            {
                //MessageBox.Show("DragEnter");
            }

            private void listView_DragDrop(object sender, DragEventArgs e)
            {
                MessageBox.Show("DragDrop");
            }
        }
    }

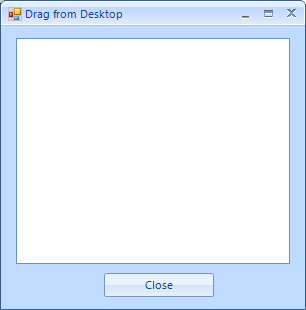

    I'm also attaching an example of how the form looks like. The big white square is the list view which I want to drop the items to.

    Thanks in advance.

    Best regards,

    Alejandro
  2. Alejandro
    Alejandro avatar
    2 posts
    Member since:
    Nov 2013

    Posted 16 Jan 2014 Link to this post

    I finally made it work using something like this:

    /// <summary>
    /// Event triggered when an item begins to be dragged on the list.
    /// </summary>
    /// <param name="sender">The control which the action is for.</param>
    /// <param name="e">The event data.</param>
    private void listView_DragEnter(object sender, DragEventArgs e)
    {
        if (e.Data.GetDataPresent(DataFormats.FileDrop))
        {
            e.Effect = DragDropEffects.Copy;
        }
    }

    /// <summary>
    /// Event triggered when the drag and drop operation ends.
    /// </summary>
    /// <param name="sender">The control which the action is for.</param>
    /// <param name="e">The event data.</param>
    private void listView_DragDrop(object sender, DragEventArgs e)
    {
        string[] handles = (string[])e.Data.GetData(DataFormats.FileDrop, false);

        foreach (string path in handles)
        {
            if (File.Exists(path))
            {
                // TODO: add the file to the list.
            }
            else if (Directory.Exists(path))
            {
                DirectoryInfo info = new DirectoryInfo(path);
                FileInfo[] files = info.GetFiles();
                foreach (FileInfo file in files)
                {
                    // TODO: add the file to the list.
                }
            }
        }
    }
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Dess
    Admin
    Dess avatar
    1609 posts

    Posted 17 Jan 2014 Link to this post

    Hello Alejandro,

    Thank you for contacting Telerik Support.

    I am glad that the issue you were facing is now resolved. Performing Drag-and-Drop Operations in Windows Forms article may be quite useful about accomplishing drag-and-drop operations within Windows applications.

    Please do not hesitate to contact us if you have any additional questions.

    Regards,
    Desislava
    Telerik
