Dock as a splitter (hide header DocumentHost pane)

3 posts, 0 answers
  1. Erik
    Erik avatar
    314 posts
    Member since:
    Feb 2008

    Posted 26 Feb 2012 Link to this post

    Hi,

    I've seen a lot of posts on it, but all older and some refereing to new additions in coming releases.

    I would like to use the RadDocking as a splitter (there is none in Silverlight, is that right? used to asp.net so...)

    I've could create on, but have some issues with it. In my scenario it must be a left docked pane with a content pane that fills the rest of the screen.

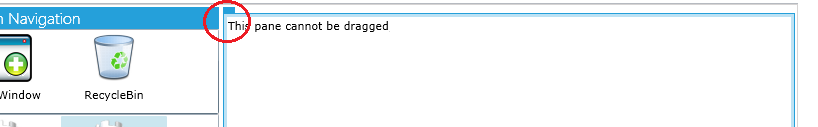

    What I've got you can see in the image attached. I used a document host to make the content pane. I could not find how to do it differently (could only initially dock left, right, top, bottom or float) this may be a normal pane, I don't mind. Thing is that the header (and closing and so on) must be hidden and I do not want the border. I tried to hide the header with "PaneHeaderVisibility", but has no effect. Also setting border props has no effect.

    Here's some XAML:
    ....
    <telerik:RadDocking x:Name="TheDock">
        <!--DocumentHost-->
        <telerik:RadDocking.DocumentHost>
            <telerik:RadSplitContainer>
                <telerik:RadPaneGroup>
                    <telerik:RadPane CanFloat="False" BorderBrush="Red" BorderThickness="1" CanUserClose="False" CanUserPin="False"
                                            PaneHeaderVisibility="Collapsed" >
                        <telerik:RadPane.Content>
                            <TextBlock TextWrapping="Wrap" Text="This pane cannot be dragged, because it has its property CanFloat set 'False'." />
                        </telerik:RadPane.Content>
                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>
        </telerik:RadDocking.DocumentHost>

        <telerik:RadSplitContainer Orientation="Vertical" telerik:DockingPanel.InitialSize="270,150" MaxWidth="600" Name="LeftDesignNavigationContainer" InitialPosition="DockedLeft">
            <telerik:RadPaneGroup x:Name="DesignNavigation">
                <telerik:RadPane Header="Design Navigation" CanFloat="False" CanUserClose="False" CanUserPin="False" CanDockInDocumentHost="False" ContextMenuTemplate="{x:Null}">
                    <StackPanel>
                        <ListBox x:Name="leftListBox">
    .....

    How can I implement this splitting with sizing?

    Tanks in advance for any pointers,

    Erik

  2. Erik
    Erik avatar
    314 posts
    Member since:
    Feb 2008

    Posted 26 Feb 2012 Link to this post

    Well, stumbled on this:
    http://www.telerik.com/help/silverlight/raddocking-how-to-remove-the-header-of-the-radpane.html
    You can hide pane headers and the RadDocumentPane tab parts.

    But my intention was a splitter with in the content pane a raddock. This does give a "flicker" but then a empty screen.

    Is it not possible to place a raddock in a radpane/RadDocumentPane (of an other dock) ?
  3. DevCraft banner
  4. Ivo
    Admin
    Ivo avatar
    390 posts

    Posted 05 Mar 2012 Link to this post

    Hello,

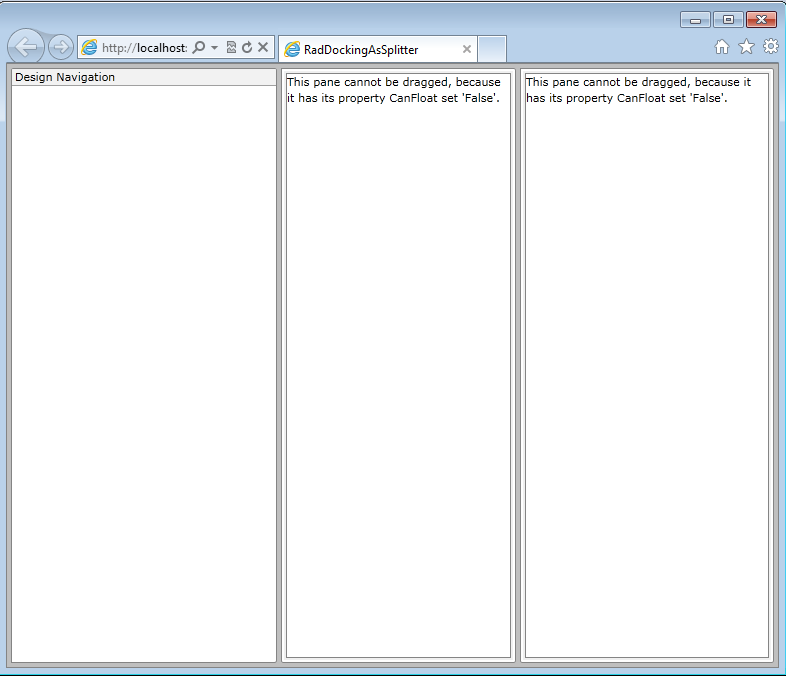

    I am not sure I completely understand your scenario, but if the desired functionality is like on the attached image I would suggest you to place to RadPaneGroups into the RadSplitContainer of your DocumentHost. Here is sample code:
    <telerik:RadDocking.DocumentHost>
        <telerik:RadSplitContainer>
            <telerik:RadPaneGroup>
                <telerik:RadPane CanFloat="False" BorderBrush="Red" BorderThickness="1" CanUserPin="False"
                                Visibility="Collapsed"
                                 CanUserClose="False">
                    <telerik:RadPane.Content>
                        <TextBlock TextWrapping="Wrap" Text="This pane cannot be dragged, because it has its property CanFloat set 'False'." />
                    </telerik:RadPane.Content>
                </telerik:RadPane>
            </telerik:RadPaneGroup>
            <telerik:RadPaneGroup>
                <telerik:RadPane CanFloat="False" BorderBrush="Red" BorderThickness="1" CanUserPin="False"
                                Visibility="Collapsed"
                                 CanUserClose="False">
                    <telerik:RadPane.Content>
                        <TextBlock TextWrapping="Wrap" Text="This pane cannot be dragged, because it has its property CanFloat set 'False'." />
                    </telerik:RadPane.Content>
                </telerik:RadPane>
            </telerik:RadPaneGroup>
        </telerik:RadSplitContainer>
    </telerik:RadDocking.DocumentHost>

    If this is not what you are trying the achieve, could you please give more information?

    Regards,
    Ivo
    the Telerik team
