Display Series Name & Value in the Bar for a Bar Chart

Thread is closed for posting
4 posts, 0 answers
  1. Vamsi Pulavarthi
    Vamsi Pulavarthi avatar
    2 posts
    Member since:
    Jun 2005

    Posted 17 Jun 2012 Link to this post

    Hello -

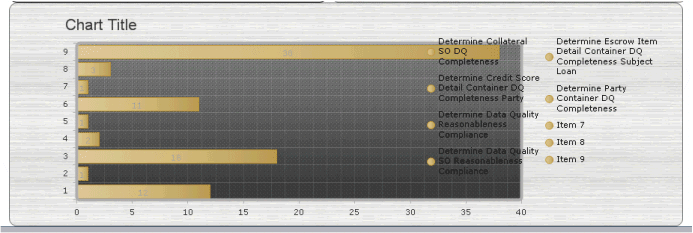

    I am trying to display information in a Horizontal Bar chart. The Y axis information is a list of series that we care about. The names of the series are quite long as you will see from the screen shot.

    I would like to display the Series Name along with the value where the actual value is currently displaying. Is that possible. If yes, can someone tell me how to do that?

    Also is it possible to make the Chart move a little to the right and make sure the Legend space is utilized by the chart. Sometime I don't need a legend and would like to use that space instead.

    thanks
    Vamsi

    In the picture, I would like to replace '38' with 'Determine ... Decision - 38'
  2. Evgenia
    Admin
    Evgenia avatar
    1407 posts

    Posted 20 Jun 2012 Link to this post

    Hello Vamsi,

    You can achieve this as shown in the sample below:

    protected void Page_Load(object sender, EventArgs e)
       {
           List<Product> products = new List<Product>();
           products.Add(new Product("Parka L", 120));
           products.Add(new Product("Parka M", 100));
           products.Add(new Product("Parka S", 132));
           products.Add(new Product("Wool Cap", 45));
           products.Add(new Product("Mittens", 67));
           ChartSeries serie = new ChartSeries();
           serie.Type = ChartSeriesType.Bar;
           foreach (Product product in products)
           {
               ChartSeriesItem item = new ChartSeriesItem();
               item.YValue = (double)product.QuantityInStock;
               item.Name = (string)product.Name;
               item.Label.TextBlock.Text = (string)product.Name + " - #Y";
               serie.Items.Add(item);
           }
           RadChart1.Series.Add(serie);
       }
       public class Product
       {
           public Product(string name, int quantityInStock)
           {
               _name = name;
               _quantityInStock = quantityInStock;
           }
           private string _name;
           public string Name
           {
               get { return _name; }
               set { _name = value; }
           }
           private int _quantityInStock;
           public int QuantityInStock
           {
               get { return _quantityInStock; }
               set { _quantityInStock = value; }
           }
       }

    As to your second questions - turn on the AutoLayout property of the chart as it will automatically rearrange chart elements to be fully readable.

    Regards,
    Evgenia
    the Telerik team
