Display Custom Appointment Property in Addition to Subject

4 posts, 0 answers
  1. Paul
    Paul avatar
    13 posts
    Member since:
    Nov 2010

    Posted 06 Jun 2012 Link to this post

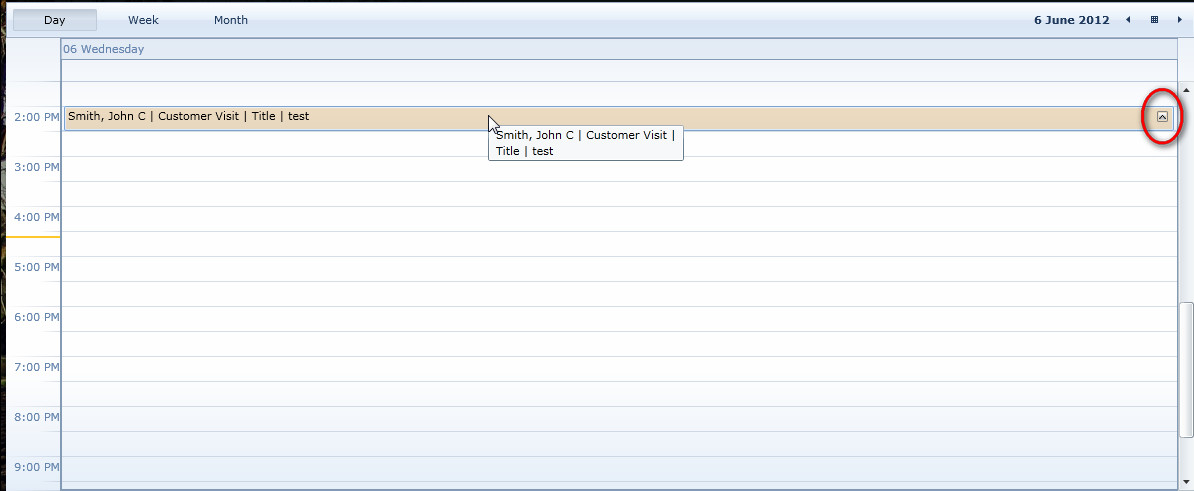

    I'm using a custom appointment class. In addition to showing the "Subject" for the Appointment on the ScheduleView, I'd like to optionally add a RadButton that displays/hides based on data in my CustomAppointmentItem class (See circled button on attached jpg).

    In my case, the customer wants to have a button displayed based on the data in the CustomAppointmentItem. Clicking this button would bring them to another screen in the application (instead of opening the Appointment detail window). Double clicking the Appointment subject should open the custom detail window to edit the appointment - as usual.

    This is what I tried:
    • Add a RadButton to the MouseOverOverlay (within the AppointmentItemVerticalControlTemplate/AppointmentItemHorizontalControlTemplate)
    • Bind the Command of the button to the ViewModal and passing the TemplatedParent as a CommandParameter
    • Inside the ViewModel Command's Execute/CanExecute methods I cast the Parameter to an "AppointmentItem"... then cast it's "Appointment" property to my CustomAppointmentItem.
    • Evaluate properties on CustomAppointmentItem that tell me if the button should be visible -and- what to do if the button is clicked.

    XAML...
    <Grid x:Name="MouseOverOverlay" Visibility="Collapsed" Opacity="0">
    <telerik:RadButton x:Name="LaunchButton" Width="11" Height="11" Margin="5 5 6 5" Padding="0"
    HorizontalAlignment="Right" VerticalAlignment="Top"
    Command="{Binding LaunchCommand, Source={StaticResource Model}}"  ClickMode="Press"
    CommandParameter="{Binding RelativeSource={RelativeSource TemplatedParent}}"

    Visibility="{Binding RelativeSource={RelativeSource Self}, Path=IsEnabled, Converter={StaticResource BooleanToVisibilityConverter}}"
    IsTabStop="False" Content="^"
    telerik:StyleManager.Theme="{StaticResource Theme}">
                                <ToolTipService.ToolTip>
                                    <TextBlock Text="Launch the Task associated with this Item" telerik:StyleManager.Theme="{StaticResource Theme}"/>
                                </ToolTipService.ToolTip>
    </telerik:RadButton>
    </Grid>


    ViewModel...
            public ICommand LaunchCommand ... CanLaunch / Launch

            private CustomAppointmentItem ConvertAppointmentItem(object parameter)
            {
                if (parameter == null)
                    return null;

                AppointmentItem ai = parameter as AppointmentItem;
                if (ai == null)
                    return null;

                CustomAppointmentItem cai = ai.Appointment as CustomAppointmentItem;
                return cai;
            }

            private bool CanLaunch(object parameter)
            {
                CustomAppointmentItem cai = ConvertAppointmentItem(parameter);
                if (cai == null)
                    return false;

                if (cai.IsLaunchButtonEnabled)
                    return true; // Launch Button should be visible

                return false;
            }

            public void Launch(object parameter)
            {
                CustomAppointmentItem cai = ConvertAppointmentItem(parameter);
                if (cai != null)
                {
                    // launch code here...
       }
            }

    It works... but not consistently. I think I understand why it doesn't work. It's b/c the command is bound to the ViewModel instead of an instance of my CustomAppointmentItem. By passing the CustomAppointmentItem instance as a CommandParameter (instead of binding to it directly), the PropertyChanged event is not firing properly. As I move back/forth through the ScheduleView the RadButton display gets out-of-sync with CustomAppointmentItem instance represented in the AppointmentItem. The button displays when it shouldn't and doesn't display when it should. Invoking the OnCanExecuteChanged on the command when the Appointment data changes doesn't work.

    Ideally what I'd like to do is bind the Command (in the MouseOverOverlay Button) directly to my CustomAppointmentItem class (instead of the AppointmentItem via TemplatedParent... or passing it via a CommandParameter). Is this possible?

    Another approach I tried was to modify the AppointmentItemTemplate DataTemplate... but I have the same problem b/c I'm not able to bind to the custom appointment property ("CustomProperty" in the code below).

            <DataTemplate x:Key="FPIAppointmentItemTemplate">
                <StackPanel Orientation="Horizontal">
                    <TextBlock Text="{Binding Subject}" TextWrapping="Wrap" TextTrimming="WordEllipsis" dragDrop:DragDropManager.AllowDrag="False" />
                    <TextBlock Text="{Binding CustomProperty}" TextWrapping="Wrap" TextTrimming="WordEllipsis" dragDrop:DragDropManager.AllowDrag="False" />
                </StackPanel>
            </DataTemplate>

    Any thoughts?
    Thanks,
    Paul
  2. Paul
    Paul avatar
    13 posts
    Member since:
    Nov 2010

    Posted 07 Jun 2012 Link to this post

    I realize this one might be tough to follow. I already owe you a sample project that reproduces a couple bugs I found. I'll submit a sample project that includes the 2 bugs and also shows what I'm trying to accomplish with this question.
    Thanks,
    Paul

    [Edit] - Ticket ID: 552246
  3. DevCraft banner
  4. Yana
    Admin
    Yana avatar
    4554 posts

    Posted 08 Jun 2012 Link to this post

    Hello Paul,

    You could create a command in your CustomAppointmentItem class:

    public class CustomAppointmentItem : Telerik.Windows.Controls.ScheduleView.Appointment
    {
        ...

       public ICommand LaunchCommand { get; set; }

        public CustomAppointmentItem()
            : base()
        {
            this.LaunchCommand = new DelegateCommand(this.DelegateCommandExecuted, this.DelegateCommandCanExecute);
        }

        protected void DelegateCommandExecuted(object param)
        {
        }

        protected bool DelegateCommandCanExecute(object param)
        {
            return this.CanLaunch;
        }
    ...
    }


    and then bind it like this:

    <telerik:RadButton
    Command="{Binding Appointment.LaunchCommand}"
    ...
    </telerik:RadButton>


    In this way the button should be shown as expected.

    Kind regards,
    Yana
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  5. Paul
    Paul avatar
    13 posts
    Member since:
    Nov 2010

    Posted 08 Jun 2012 Link to this post

    That did the trick. I was missing the "Appointment." in the binding statement for the custom appointment. It works perfectly now.
    Thanks!
