Hello Maurício,
The diagram does not provide such functionality out of the box. However, you should be able to implement it with custom code by modifying the template of the shapes.
For your convenience I attached a sample project demonstrating such approach. You can use it as a starting point for your implementation. Please give the solution a try and let me know if it helps.
Regards,
Martin
Telerik
The diagram does not provide such functionality out of the box. However, you should be able to implement it with custom code by modifying the template of the shapes.
For your convenience I attached a sample project demonstrating such approach. You can use it as a starting point for your implementation. Please give the solution a try and let me know if it helps.
Regards,
Martin
Telerik
Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.
0
Maurício
Top achievements
Rank 1
Rank 1
answered on 26 Jan 2015, 04:17 PM
Hello Martin,
Thank you for the answer.

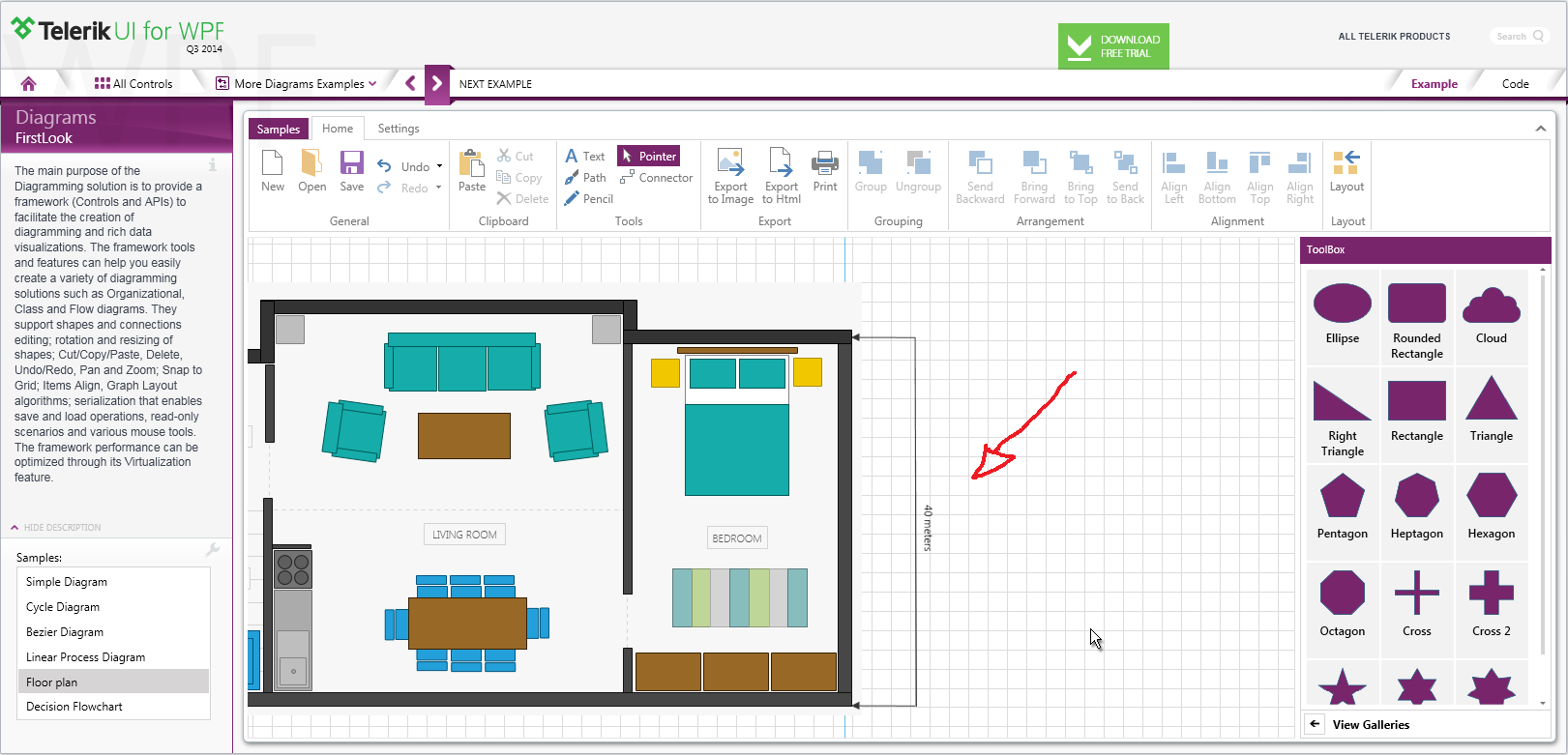

Actually what I need is a little bit more complex, I need to be able to select two points to add the dimension line, I also need to be able to customize and drag it.
I am thinking of using connectors and connections attached to a thin shape.

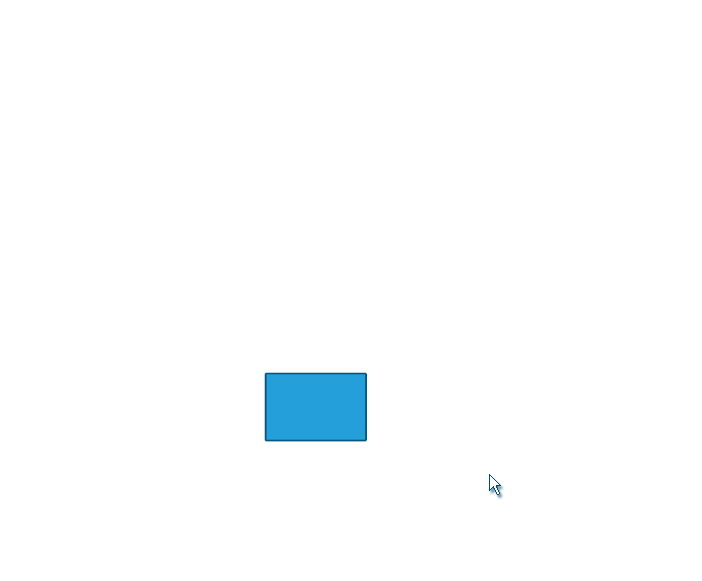

Check the attached GIF to see what I've done so far.
