DescriptionTextMember and Autosize

2 posts, 0 answers
  1. Jason Parrish
    Jason Parrish avatar
    87 posts
    Member since:
    Sep 2009

    Posted 31 Oct 2013 Link to this post

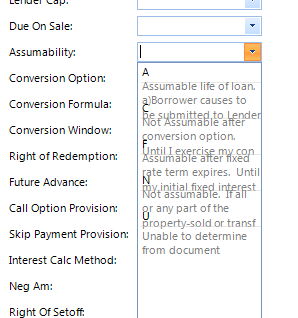

    I have tried setting AutoSizeItems and/or AutoSize to true on every element within the Dropdownlist, but I can not get the listbox to draw correctly when using the DescriptionTextMember.  See screenshot.  Any advice?  What am I missing?


  2. George
    Admin
    George avatar
    500 posts

    Posted 05 Nov 2013 Link to this post

    Hello Jason,

    Thank you for contacting us.

    We have this issue reported and it is logged in our Public Issue Tracking System. You can find it at - http://www.telerik.com/support/pits.aspx#/details/Issue=16089. As a temporary workaround you can use the following Visualitem:
    public class DescriptionTextVisualItem : RadListVisualItem
    {
        public const int DefaultItemHeightWithDescription = 36;

        private GridLayout container;
        private LightVisualElement text;
        private LinePrimitive line;
        private LightVisualElement description;

        private Font descriptionFont;

        public LightVisualElement Text
        {
            get { return this.text; }
        }

        public LinePrimitive Line
        {
            get { return this.line; }
        }

        public LightVisualElement Description
        {
            get { return this.description; }
        }

        protected override void CreateChildElements()
        {
            base.CreateChildElements();

            this.container = new GridLayout();
            this.container.Rows.Clear();

            for (int i = 0; i < 3; i++)
            {
                GridLayoutRow row = new GridLayoutRow();
                if (i == 1)
                {
                    row.SizingType = GridLayoutSizingType.Proportional;
                    row.ProportionalHeightWeight = 1;
                }

                this.container.Rows.Add(row);
            }

            this.container.NotifyParentOnMouseInput = true;

            this.text = new LightVisualElement();
            this.text.NotifyParentOnMouseInput = true;

            this.line = new LinePrimitive();
            this.line.NotifyParentOnMouseInput = true;
            this.line.StretchHorizontally = true;
            this.line.StretchVertically = false;

            this.description = new LightVisualElement();
            this.description.NotifyParentOnMouseInput = true;
            this.description.TextAlignment = ContentAlignment.TopCenter;

            this.Children.Add(this.container);
            this.container.Children.Add(this.text);
            this.text.SetValue(GridLayout.RowIndexProperty, 0);

            this.container.Children.Add(this.line);
            this.line.SetValue(GridLayout.RowIndexProperty, 1);

            this.container.Children.Add(this.description);
            this.description.SetValue(GridLayout.RowIndexProperty, 2);
        }

        protected override void SynchronizeProperties()
        {
            base.SynchronizeProperties();

            DescriptionTextListDataItem data = this.Data as DescriptionTextListDataItem;

            if (data == null)
            {
                return;
            }

            this.SetValue(RadListVisualItem.TextProperty, string.Empty);
            this.text.Text = this.Data.Text;
            this.description.Text = data.DescriptionText;
            if (this.Data.Font != this.descriptionFont)
            {
                this.descriptionFont = this.Data.Font;
                this.description.SetValue(LightVisualElement.FontProperty, this.descriptionFont);
            }

            if (this.Data.Owner != null && this.Data.Owner.ItemHeight != DefaultItemHeightWithDescription)
            {
                Data.Owner.ItemHeight = DefaultItemHeightWithDescription;
            }
        }

        public override bool IsCompatible(RadListDataItem data, object context)
        {
            return data is DescriptionTextListDataItem;
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(RadListVisualItem);
            }
        }
    }

    The item can be used as follows:
    void radDropDownList1_CreatingVisualListItem(object sender, CreatingVisualListItemEventArgs args)
    {
        args.VisualItem = new DescriptionTextVisualItem()
        {
            TextAlignment = ContentAlignment.MiddleLeft
        };
    }

    Feel free to modify it further to fit your needs.

    I hope this helps.

    Regards,
    George
