Customizing TreeView Arrrow Images

6 posts, 1 answers
  1. Surya
    Surya avatar
    35 posts
    Member since:
    Nov 2011

    Posted 29 Aug 2012 Link to this post

    Hi,

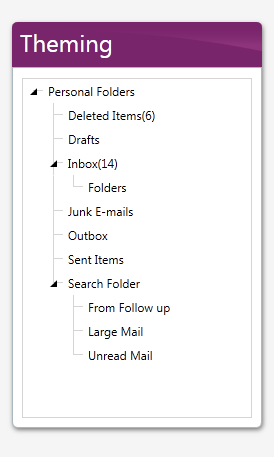

    I have used the telerik Metro Blue theme and customized whole theme, But I am not able to change the Arrows for the TreeView Nodes. Am attaching a screenshot of the treeview for which my theme should be look like this.

    please suggest me the how to get the Treeview look as per the attachment.


  2. Stefan
    Admin
    Stefan avatar
    2890 posts

    Posted 03 Sep 2012 Link to this post

    Hello Surya,

    Thank you for writing.

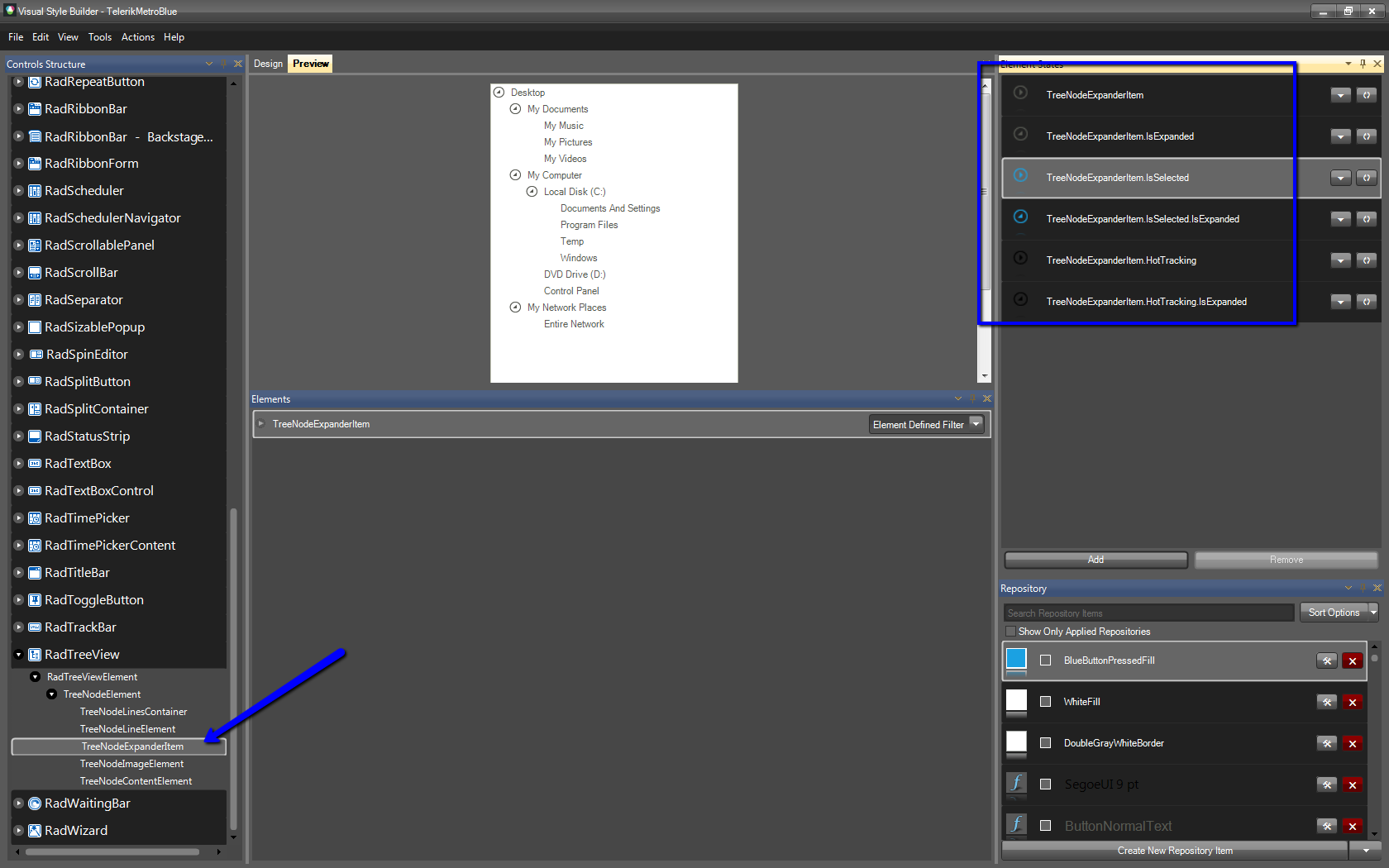

    Attached you can find a screen shot demonstrating which is the element which states should be customized in order to change the expand/collapse image of a node.

    Let me know if you need further assistance with this case.

    All the best,
    Stefan
    the Telerik team
    RadControls for WinForms Q2'12 release is now live! Check out what's new or download a free trial >>
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Surya
    Surya avatar
    35 posts
    Member since:
    Nov 2011

    Posted 03 Sep 2012 Link to this post

    Hi Stefan,

    Thank you for the reply.

    I have tried the above mentioned suggestion, but not able to get rid of the Circle around the arrow. I am attaching the Screenshot and the Arrow Images which I want to use for my project.


    Thank you,
    Surya
  5. Answer
    Stefan
    Admin
    Stefan avatar
    2890 posts

    Posted 06 Sep 2012 Link to this post

    Hi Surya,

    Thank you for writing.

    You need to change the SignImage property of the desired states. Attached you can find six images based on the one that you sent. Two of them (the one you sent) for the default normal and expanded state, two for the hovered state and two for the selected state - respectfully with blue and yellow arrow. Additionally, you can find a video demonstrating how to change the images for the different states. Lastly, you can find a project and the resulted theme applied to RadTreeView.

    I hope that you find this information useful.

    Regards,
    Stefan
    the Telerik team
    RadControls for WinForms Q2'12 release is now live! Check out what's new or download a free trial >>
  6. Surya
    Surya avatar
    35 posts
    Member since:
    Nov 2011

    Posted 06 Sep 2012 Link to this post

    Hi Stefan,

    Thank you so much, it works.

    I was not aware of the SignImage. and was trying the background and image properties only.

    Regards,
    Surya
  7. Stefan
    Admin
    Stefan avatar
    2890 posts

    Posted 06 Sep 2012 Link to this post

    I am glad to hear that everything is now OK on your end. Let us know if you need anything else.

    Greetings,
    Stefan
    the Telerik team
    RadControls for WinForms Q2'12 release is now live! Check out what's new or download a free trial >>
