Customize GroupPanelElement and GroupFieldElement

2 posts, 0 answers
  1. Maxime
    Maxime avatar
    1 posts
    Member since:
    Oct 2011

    Posted 21 Oct 2011 Link to this post

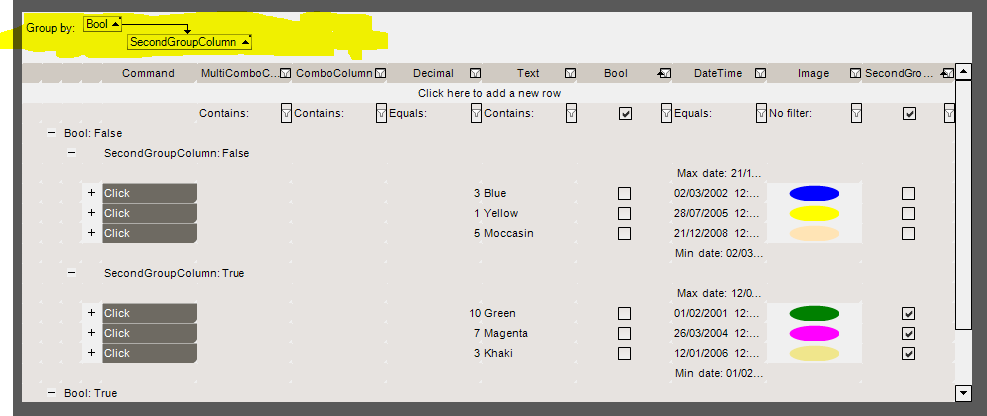

    How can I customize (with Visual Style Builder) the style for the GroupPanelElement and GroupFieldElement (highlighted in capture.png).

  2. Ivan Petrov
    Ivan Petrov avatar
    701 posts

    Posted 24 Oct 2011 Link to this post

    Hi Maxime,

    Thank you for writing and for the attached screen shot.

    To style these elements, you have to right-click on the RadGridView inside the Controls Structure panel of the Visual Style Builder and select Show Grouping View. This will change the sub elements shown for the grid view inside the Controls Structure tree. The new sub elements will be the elements you want to theme. To bring back the old elements structure, right-click on the RadGridView and select Reset Control View

    I hope this will answer your questions. If you need further assistance, I would be glad to provide it.

    Best wishes,
    Ivan Petrov
    the Telerik team

    Q2’11 SP1 of RadControls for WinForms is available for download (see what's new); also available is the Q3'11 Roadmap for Telerik Windows Forms controls.
