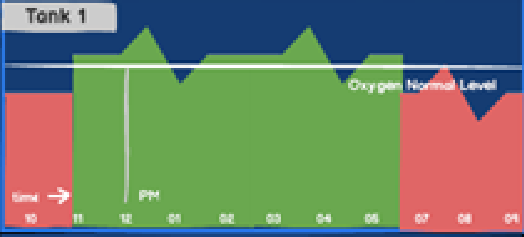

Could you provide me assistance to have a graph like the attached image using aspnetmvc?

4 posts, 0 answers
  1. Ramesh
    Ramesh avatar
    5 posts
    Member since:
    May 2014

    Posted 21 Aug 2014 Link to this post

    Hi,

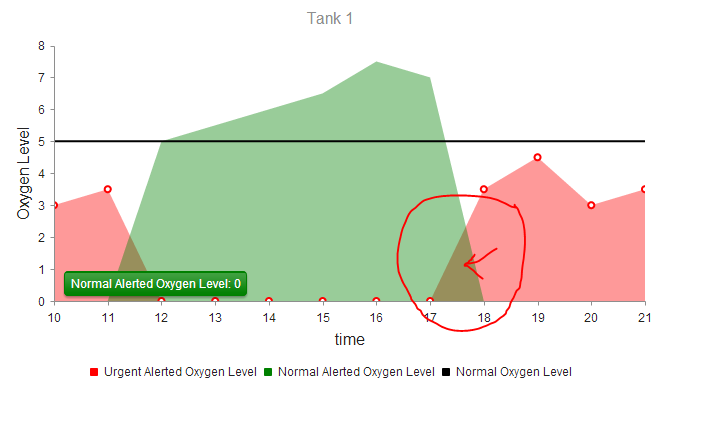

    I had tried using Telerik ASP.Net mvc area charts.But i found that its overlapping between series of two colors.The below graph shows that there is a normal oxygen level where limit is 5.The area lying below normal level is shown as red and those above as green.This is my requirement.But when i drawn using Area Chart,it plots like the below chart. For example,its showing  3.5 at 11 o clock.Then at 12 o clock,it has range above normal level with 5.Then why the red portion sliding down till 12o clock.I dont want this.Is there any suggestion for drawing like that?
  2. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2593 posts

    Posted 22 Aug 2014 Link to this post

    Hi Ramesh,

    If I understand correctly you would like to avoid the colors mixing where the series overlap? This can be achieved as set seriesDefaults.opacity option to 1:
    //....
    .SeriesDefaults(seriesDefaults =>
       seriesDefaults.Area().Opacity(1)
    )
    In case I am missing something please elaborate a bit more on the exact outcome you would like to achieve - this way I would be able to advice you further and provide concrete recommendations.

    Regards,
    Iliana Nikolova
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  3. UI for ASP.NET MVC is VS 2017 Ready
  4. Ramesh
    Ramesh avatar
    5 posts
    Member since:
    May 2014

    Posted 22 Aug 2014 in reply to Iliana Nikolova Link to this post

    Ok my question is this.Is there any way to highlight in multiple colors for area chart ?if the values below normal range indicates red and those above with green as in the above attached image.
  5. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2593 posts

    Posted 22 Aug 2014 Link to this post

    Hi Ramesh,

    Thank you for the details. I am afraid this outcome is not supported by Kendo UI Area Chart and there is no a better workaround (than the one you have used) which I can suggest. Please accept my apologies for any inconvenience this may cause.

    Regards,
    Iliana Nikolova
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.
