Copying multiple rows from GridView does not preserve linebreaks

6 posts, 0 answers
  1. Doug
    Doug avatar
    2 posts
    Member since:
    Feb 2013

    Posted 05 Apr 2013 Link to this post

    I am trying to enable copying from a GridView to paste into other programs, but I'm encountering multiple problems.

    I have a GridView with MultiSelect = True, SelectionMode = FullRowSelect, and ClipboardCopyMode = EnableAlwaysIncludeHeaderText (though the same problems occurs with EnableWithoutHeaderText).

    Problem #1:
    When I select a single row, only the current cell is copied. It is pasted as: ColumnHeader<CrLf>CellValue

    Expected result: Whole row should be copied.

    Problem #2:
    When I select multiple rows, copy and paste into another program (I've tried Notepad++ and Excel), the rows are all pasted as a single line. There are tab characters between the cell values, but no newline characters. Instead there is a tab character between the rows. This makes it impossible to paste into Excel -- all values are pasted into a single cell.

    Expected result: Tabs between cells, newline between rows.

    Problem #3:
    To combat the above, I've tried capturing the "Copying" event to roll my own clipboard function:

    Private Sub GridClipboardPrep(sender As System.Object, e As Telerik.WinControls.UI.GridViewClipboardEventArgs) _
        Handles GVComputerSearch.Copying

        Dim copyStr As String = ConvertSelectedDataToString(sender)
        Clipboard.SetText(copyStr)
    End Sub

    Private Function ConvertSelectedDataToString(grid As RadGridView) As String
        Dim strBuild As New System.Text.StringBuilder()

        Dim row As Integer = 0
        While row < grid.SelectedRows.Count
            Dim cell As Integer = 0
            While cell < grid.SelectedRows(row).Cells.Count
                strBuild.Append(grid.SelectedRows(row).Cells(cell).Value.ToString())
                strBuild.Append(vbTab)
                System.Math.Max(System.Threading.Interlocked.Increment(cell), cell - 1)
            End While

            strBuild.Append(System.Environment.NewLine)
            System.Math.Max(System.Threading.Interlocked.Increment(row), row - 1)
        End While

        Return strBuild.ToString()
    End Function

    But the end result is the same as Problem #2 above.

    So I put a breakpoint at the end of Sub GridClipboardPrep and guess what? It runs three times! Furthermore, if I paste into Notepad while the program is paused at the breakpoint, it pastes correctly (though without the header row). After the program continues, paste looks like Problem #2 again.
  2. Julian Benkov
    Admin
    Julian Benkov avatar
    1135 posts

    Posted 10 Apr 2013 Link to this post

    Hello Doug,

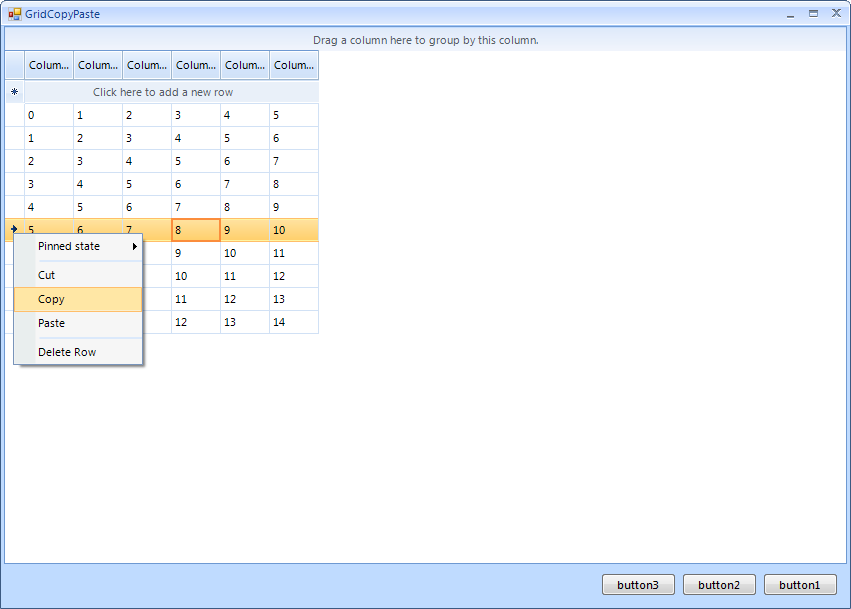

    1) The default logic copies only the selected cells during copy operation and will copy the full row if you use the context menu of row indicator column. Please review the attached screenshot. To always copy the full data row in the Clipboard you can use the new BeginRowCopy API of MasterTemplate:
    gridView.MasterTemplate.BeginRowCopy();

    2) I have tested the reported scenario and RadGridView successfully copies and pastes multiple selected rows in Notepad++ and Excel with the formatting information including the new lines. Please keep in mind that in order to support this behavior RadGridView copies the information in various formats like text, html, cvs. When a copy operation prepares these formats the Copying event will be raised for each one. Please review the example in code snippet and the attached video for details:
    using System;
    using System.Windows.Forms;
    using Telerik.WinControls.UI;

    namespace Lab.Grid
    {
        public partial class GridCopyPaste : MainForm
        {
            private RadGridView gridView = new RadGridView();

            public GridCopyPaste()
            {
                InitializeComponent();

                gridView.Dock = DockStyle.Fill;
                gridView.Parent = this;
                gridView.BringToFront();
                gridView.MultiSelect = true;
                gridView.SelectionMode = GridViewSelectionMode.FullRowSelect;
                gridView.ClipboardPasteMode = GridViewClipboardPasteMode.EnableWithNotifications;
                gridView.Copying += gridView_Copying;
                gridView.Pasting += gridView_Pasting;
                gridView.MasterTemplate.BeginRowCopy();
            }

            protected override void OnLoad(EventArgs e)
            {
                base.OnLoad(e);

                gridView.ColumnCount = 6;
                gridView.RowCount = 10;

                for (int i = 0; i < 10; i++)
                {
                    for (int j = 0; j < 6; j++)
                    {
                        this.gridView.Rows[i].Cells[j].Value = i + j;
                    }
                }
            }

            void gridView_Copying(object sender, GridViewClipboardEventArgs e)
            {
                Console.WriteLine("Copying: {0}", e.Format);
            }

            void gridView_Pasting(object sender, GridViewClipboardEventArgs e)
            {
                if (e.Format == DataFormats.Html)
                {
                    e.Cancel = true;
                }
                Console.WriteLine("Pasting: {0}", e.Format);
            }
        }
    }

    I hope this helps.

    Regards,
    Julian Benkov
    the Telerik team
    WinForms Q1 2013 boasts PivotGrid, PDF Viewer, Chart enhancements and more. Check out all of the latest highlights.
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Doug
    Doug avatar
    2 posts
    Member since:
    Feb 2013

    Posted 10 Apr 2013 Link to this post

    Thanks for your detailed response. Unfortunately, I still have issues:

    • If AllowDeleteRow = False, then the cut, copy & paste items disappear from the context menu in the row indicator column. This is incorrect behavior and prevents copying a whole row. (Also, I do not want the user to have the ability to delete a row.)
    • If SelectionMode = CellSelect (and AllowDeleteRow = True), then I can copy a paste a full row with headers, but only one row at a time. This does not allow me to select more than one full row.
    • If SelectionMode = FullRowSelect, then copy and paste still smooshes all the data into a single line.

  5. Julian Benkov
    Admin
    Julian Benkov avatar
    1135 posts

    Posted 15 Apr 2013 Link to this post

    Hi Doug,

    1) The
    cut operation is not valid in this case when the AllowDeleteRow is false. We will extend this functionality to enable other operations in this scenario. To workaround the current processing of you can customize the context menu using this KB Article.

    2,3) To support full row copying for multiple rows you must also enable the MultiSelect and call the BeginCopyRow:
    gridView.MultiSelect = true;
    gridView.MasterTemplate.BeginRowCopy();

    If you continue experiencing the issues with copy / paste operations, please send me a sample application with your scenario to investigate it locally and find best solution for the case.

    Thank you for your time and cooperation.

    Greetings,
    Julian Benkov
    the Telerik team
    WinForms Q1 2013 boasts PivotGrid, PDF Viewer, Chart enhancements and more. Check out all of the latest highlights.
  6. SHAHROKH
    SHAHROKH avatar
    8 posts
    Member since:
    Oct 2012

    Posted 12 Aug 2015 Link to this post

    Hi,

    How can i get values in multi selection Rad Grid View?

    Please help me.

  7. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 12 Aug 2015 Link to this post

    Hi Shahrokh,

    RadGridView features the SelectedRows and SelectedCells properties, from there you can get the currently selected items.

    On a side note, may I please ask you to avoid mixing different subjects in one thread as we are trying to keep the forums more easy to read. If you can't find a thread for the precise question, you can always open a new one. Thank you for the understanding.

    Regards,
    Stefan
