Coordinate 2 rotators movement

7 posts, 1 answers
  1. Lynn
    Lynn avatar
    186 posts
    Member since:
    Sep 2006

    Posted 20 Dec 2011 Link to this post

    I have a page that contains 2 rotators that I want to move in sync with each other -- when the top one moves, I want that movement to trigger the movement of the bottom one.

    I have set up the code to do this except I cannot seem to address the second rotator.  I capture the movement of the first, then try to find the second in the control collection and set it's index -- similar to an example on your site.  But every time I try to find the second rotator, I find that I have grabbed a "div" control instead.

    Can you tell me what I need to do?  This needs to run on pages with and without master pages.

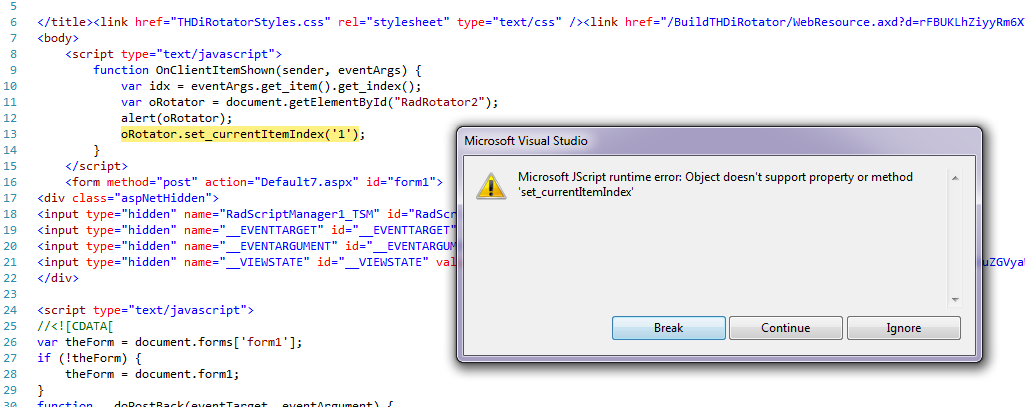

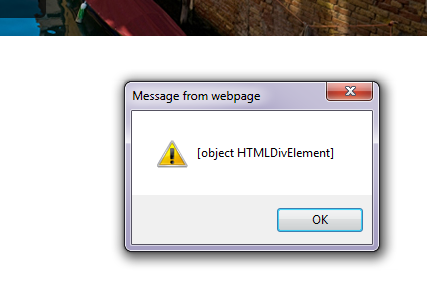

    I ahve attached 2 related screen captures below from during execution.

    Thanks in advance!

    Lynn
    <body>
        <script type="text/javascript">
            function OnClientItemShown(sender, eventArgs) {
                var idx = eventArgs.get_item().get_index();
                var oRotator = document.getElementById("<%= RadRotator2.ClientID %>");
                alert(oRotator);
                oRotator.set_currentItemIndex('1');
            }
        </script>
        <form id="form1" runat="server">
            <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
            </telerik:RadScriptManager>
            <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            </telerik:RadAjaxManager>
            <div>
                <br /><br />
                <telerik:RadRotator runat="server" DataSourceID="xmlDataSource1" ID="rotator1" OnClientItemShown="OnClientItemShown"
                    ScrollDirection="Left" SlideShowAnimation-Type="Fade" RotatorType="SlideShow"
                    FrameDuration="6000" Width="955px" ItemWidth="955px" Height="398px" ItemHeight="398px">
                    <ItemTemplate>
                        <div class="itemTemplate">
                            <img src="<%# XPath("Image") %>" alt="<%# XPath("Title") %>" style="border: 0px;" />
                        </div>
                    </ItemTemplate>
                </telerik:RadRotator>
                <br /><br />
                <div class="xscrollContainer" >
                    <telerik:RadRotator runat="server" DataSourceID="xmlDataSource2" ID="RadRotator2" ScrollDirection="Left"
                        SlideShowAnimation-Type="Fade" RotatorType="SlideShow"
                        FrameDuration="6000" Width="390px" ItemWidth="390px" Height="30px" ItemHeight="30px">
                        <ItemTemplate>
                            <div class="itemTemplate">
                                <%# XPath("Title") %>
                            </div>
                        </ItemTemplate>
                    </telerik:RadRotator>
                </div>
                <br /><br />
            </div>
            <asp:XmlDataSource ID="xmlDataSource1" runat="server" DataFile="photos.xml"></asp:XmlDataSource>
            <asp:XmlDataSource ID="xmlDataSource2" runat="server" DataFile="titles.xml"></asp:XmlDataSource>


  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3595 posts

    Posted 20 Dec 2011 Link to this post

    Hi Lynn,

    In order to get a reference to the RadControls you need to use $find(controlClientID) instead of document.getElementById() (or its shortcut - $get() as this one returns an HTML element, not a control reference). This is shown, for example in this help article or this online demo.


    Greetings,
    Marin
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Lynn
    Lynn avatar
    186 posts
    Member since:
    Sep 2006

    Posted 20 Dec 2011 Link to this post

    Marin,

    Many thanks for working on this, but I'm sorry to say that the "$find" as recommended in your response (and in examples on your site) does not return anything.  The "$find" is not something I've ever been able to get to resolve to anything.
    Please see my attached screen capture and the revised code in inserted below, including the "$find" which returns a null instead of finding anything.

    Any other thoughts (please and thank you)?

    Lynn

    <%@ Page Language="VB" AutoEventWireup="false" CodeFile="Default7.aspx.vb" Inherits="Default7" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <head runat="server">
        <title></title>
        <link href="THDiRotatorStyles.css" rel="stylesheet" type="text/css" />
    </head>
    <body>
        <script type="text/javascript">
            function OnClientItemShown(sender, eventArgs) {
                var idx = eventArgs.get_item().get_index();
                var oRotator = $find("<%= RadRotator2.ClientID %>");
                alert("RadRotator2=" + oRotator);
                oRotator.set_currentItemIndex(1);
            }
        </script>
        <form id="form1" runat="server">
            <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
            </telerik:RadScriptManager>
            <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            </telerik:RadAjaxManager>
            <div>
                <br /><br />
                <telerik:RadRotator runat="server" DataSourceID="xmlDataSource1" ID="rotator1" OnClientItemShown="OnClientItemShown"
                    ScrollDirection="Left" SlideShowAnimation-Type="Fade" RotatorType="SlideShow"
                    FrameDuration="6000" Width="955px" ItemWidth="955px" Height="398px" ItemHeight="398px">
                    <ItemTemplate>
                        <div class="itemTemplate">
                            <img src="<%# XPath("Image") %>" alt="<%# XPath("Title") %>" style="border: 0px;" />
                        </div>
                    </ItemTemplate>
                </telerik:RadRotator>
                <br /><br />
                <div class="xscrollContainer" >
                    <telerik:RadRotator runat="server" DataSourceID="xmlDataSource2" ID="RadRotator2" ScrollDirection="Left"
                        SlideShowAnimation-Type="Fade" RotatorType="SlideShow"
                        FrameDuration="6000" Width="390px" ItemWidth="390px" Height="30px" ItemHeight="30px">
                        <ItemTemplate>
                            <div class="itemTemplate">
                                <%# XPath("Title") %>
                            </div>
                        </ItemTemplate>
                    </telerik:RadRotator>
                </div>
                <br /><br />
            </div>
            <asp:XmlDataSource ID="xmlDataSource1" runat="server" DataFile="photos.xml"></asp:XmlDataSource>
            <asp:XmlDataSource ID="xmlDataSource2" runat="server" DataFile="titles.xml"></asp:XmlDataSource>
        </form>
    </body>
    </html>

  5. Kevin
    Kevin avatar
    360 posts
    Member since:
    Jul 2012

    Posted 21 Dec 2011 Link to this post

    Hello Lynn,

    The reason the $find method is returning null is because the OnClientShown method is being raised before the second RadRotator object has been fully created. So you need to change your code to something like this:

    var isInitialLoad = true;

            function OnClientItemShown(sender, eventArgs) {
                if (!isInitialLoad) {
                    var idx = eventArgs.get_item().get_index();
                    var oRotator = $find("<%= RadRotator2.ClientID %>");
                    //alert("RadRotator2=" + oRotator);
                    oRotator.stop();
                    oRotator.set_currentItemIndex(1);
                    oRotator.start();
                }

                isInitialLoad = false;
            }

    So pretty much what the code above does is it checks it's the initial load of the page. If so, don't change the index of the second rotator. On subsequent times, change the index of the second rotator. You''ll also need to change the FrameDuration of the second rotator to 6005, in order for this code to work.

    If you want this to also work on the initial load of the page. You will need to handle the RadRotator2's OnClientLoad event and get the index from RadRotator1.

    Also, if I could add my two cents, I don't understand why you would need to do this in the first place when both RadRotators have the same settings set, so they would in sync anyway without the use of this code (As I noted with my experience testing this out).

    I hope that helps.
  6. Answer
    Marin Bratanov
    Admin
    Marin Bratanov avatar
    3595 posts

    Posted 21 Dec 2011 Link to this post

    Hi Lynn,

    I am sorry for one small omission. The OnClientItemShown event is fired when the first item is shown, which is a bit before the RadRotator is fully initialized and loaded. The references to the controls are, however, available in the Sys.Application.Load event (a shortcut to which is the pageLoad() JavaScript function) as this is the event that indicates that all AJAX enabled controls are loaded. This is the reason why $find() returns null before this.

    What you can do to resolve this - simply check if the second rotator is available:
    if (oRotator) oRotator.set_currentItemIndex(idx);

    or attach the OnClientItemShown event handler dynamically in the pageLoad() function as shown here (the add_itemShown() method).

    I can also suggest you simply combine the itemTemplates so that there is no need for two synchronized rotators and the data is shown in only one. This is also a solution with better performance and easier implementation, as such a sync is rather hard to achieve.

    Kind regards,
    Marin
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  7. Lynn
    Lynn avatar
    186 posts
    Member since:
    Sep 2006

    Posted 21 Dec 2011 Link to this post

    Marin,

    Thanks for the clarification!  I will try that.

    Actually I really like the idea of combining the two templates, but how would you do that when the output from each is being shown in two different sizes/shapes/styles?  Is there any example out there that talks about this?

    What this slideshow has is a rotating photo slideshow, and each photo has a different text caption (explaining what the photo is).  The explanations have to be modified at run-time due to multi-lingual requirements so they cannot be embedded into the photo graphics files.

    When I get done with this whole integrated slide show user control, I am planning on submitting it to you folks for an example, so any help you could provide would be appreciated and noted.

    Thanks!

    Lynn
  8. Lynn
    Lynn avatar
    186 posts
    Member since:
    Sep 2006

    Posted 26 Dec 2011 Link to this post

    Thanks for the information and assistance.  I did not realize the issue with the second control not yet being initialized.  I have resolved this issue with your info.

    Thanks again!

    Lynn
